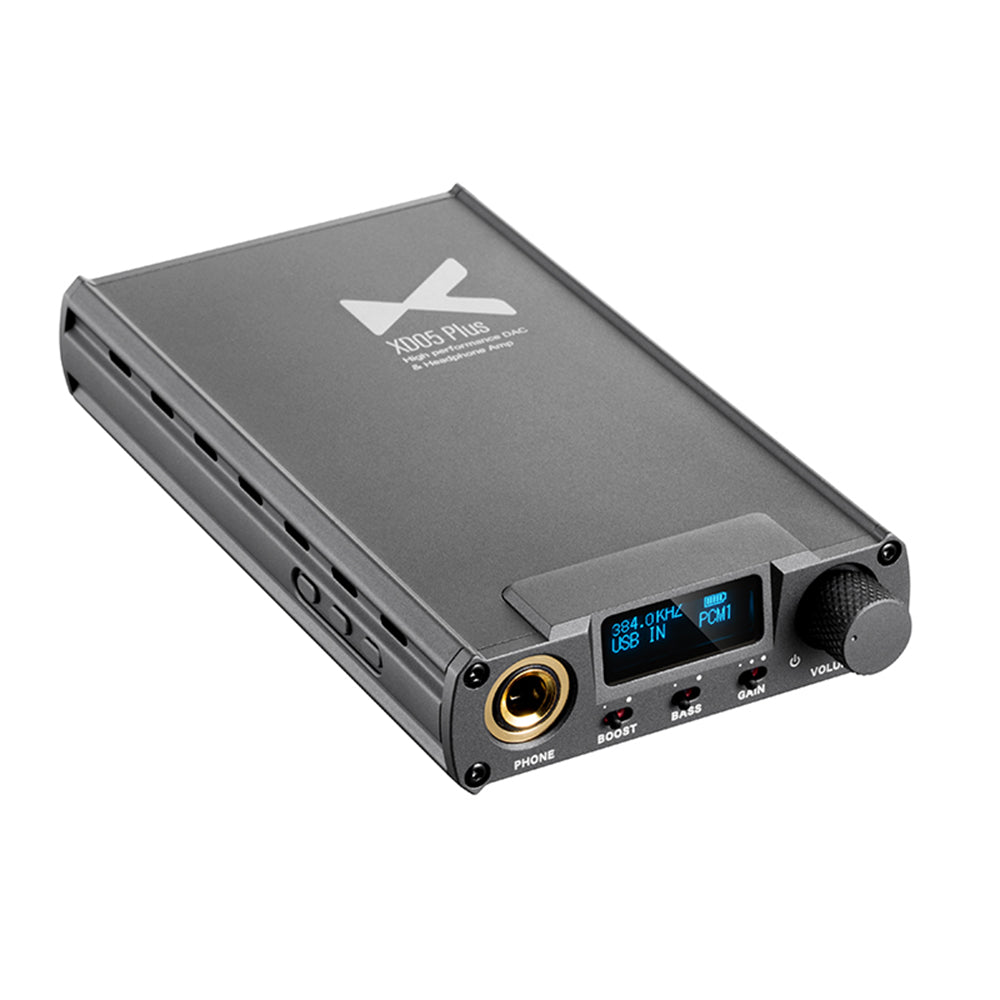

xDuoo XD-05 Plus

32Bit/384 KHz HiFi Portable DSD Headphone Amp DAC

  • Dual Interchangeable Op Amp Design
  • Adopts XMOS XU208 USB Audio Chip and AK4493EQ DAC Chip
  • Supports USB/Coaxial/Optical/Aux in
  • 1000mW output power @32ohms loads
  • Optional Bluetooth Bundle with XD-05BL Pro
Regulärer Preis €289,00
Verkaufspreis €289,00 Regulärer Preis

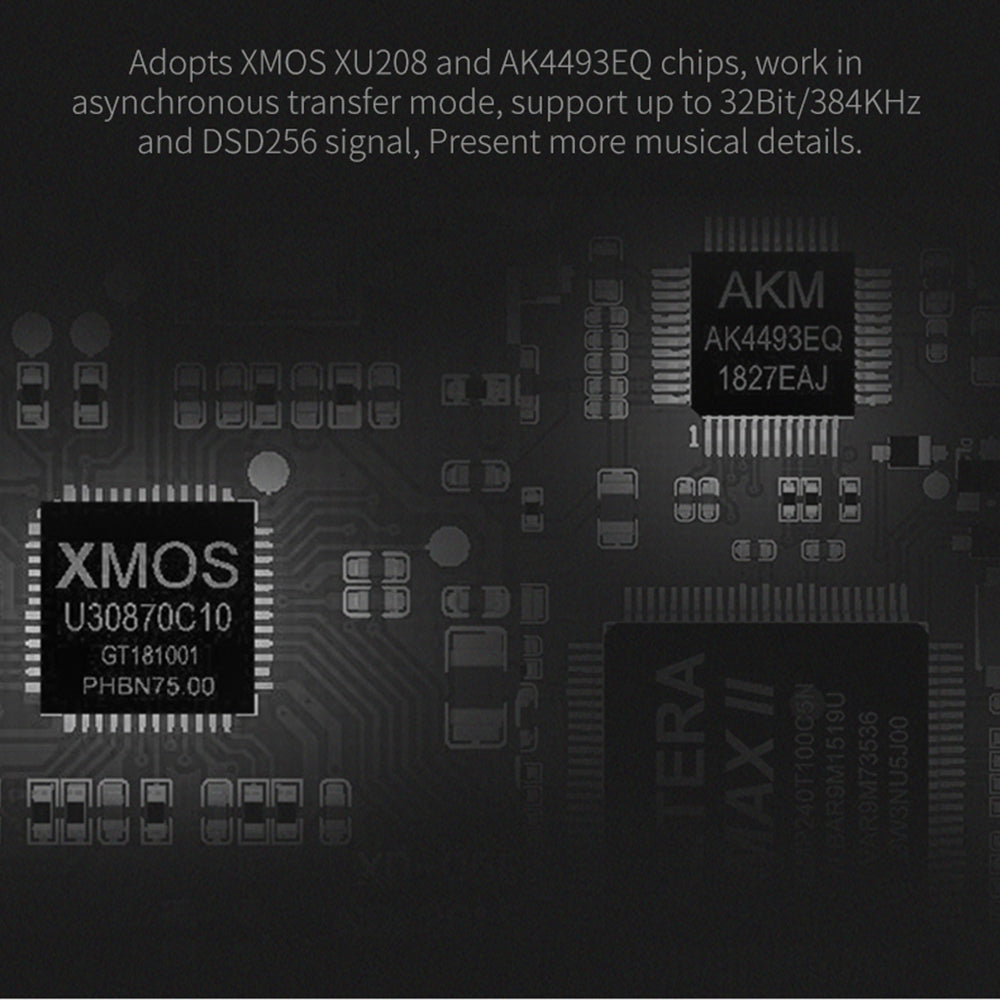

Latest Chip

xDuoo XD-05 Plus Adopts XMOS XU208 USB Audio Chip and AK4493EQ DAC Chip, which works in asynchronous transfer mode, supports 32Bit/384Khz and DSD 256, presenting more music details.

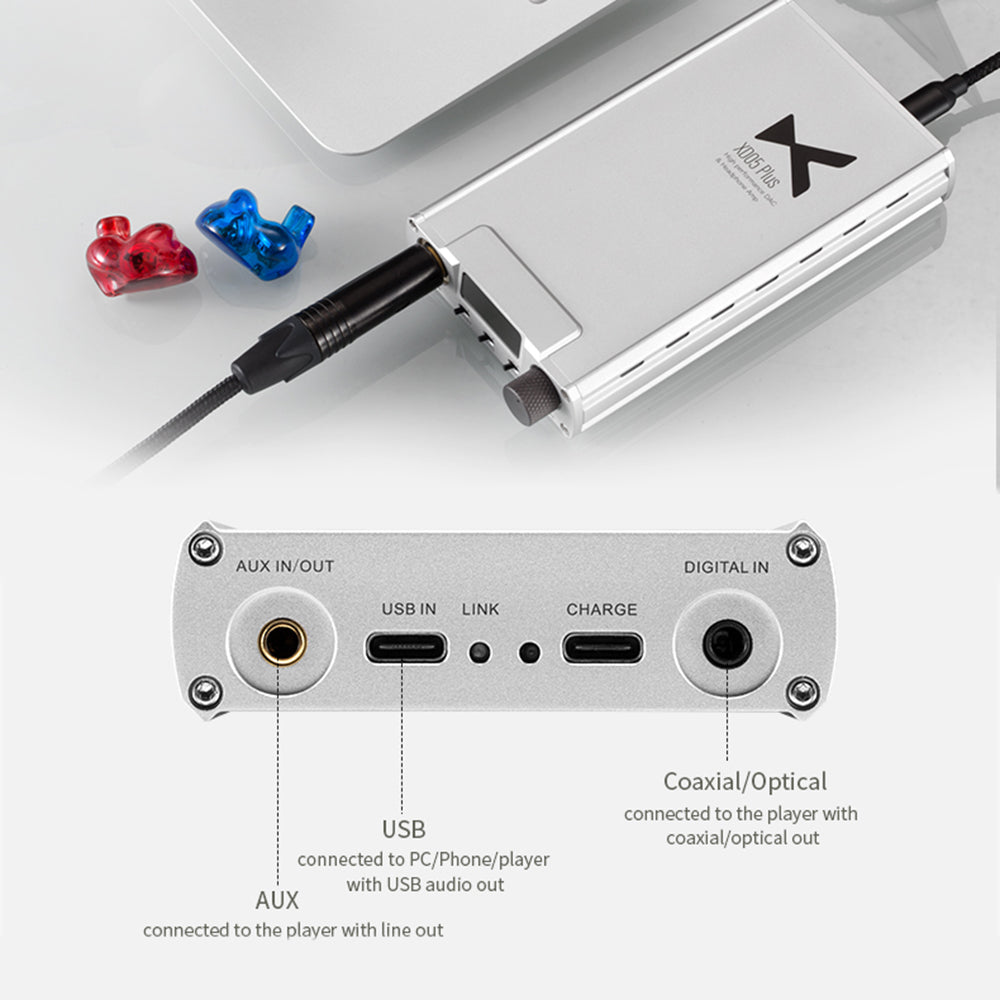

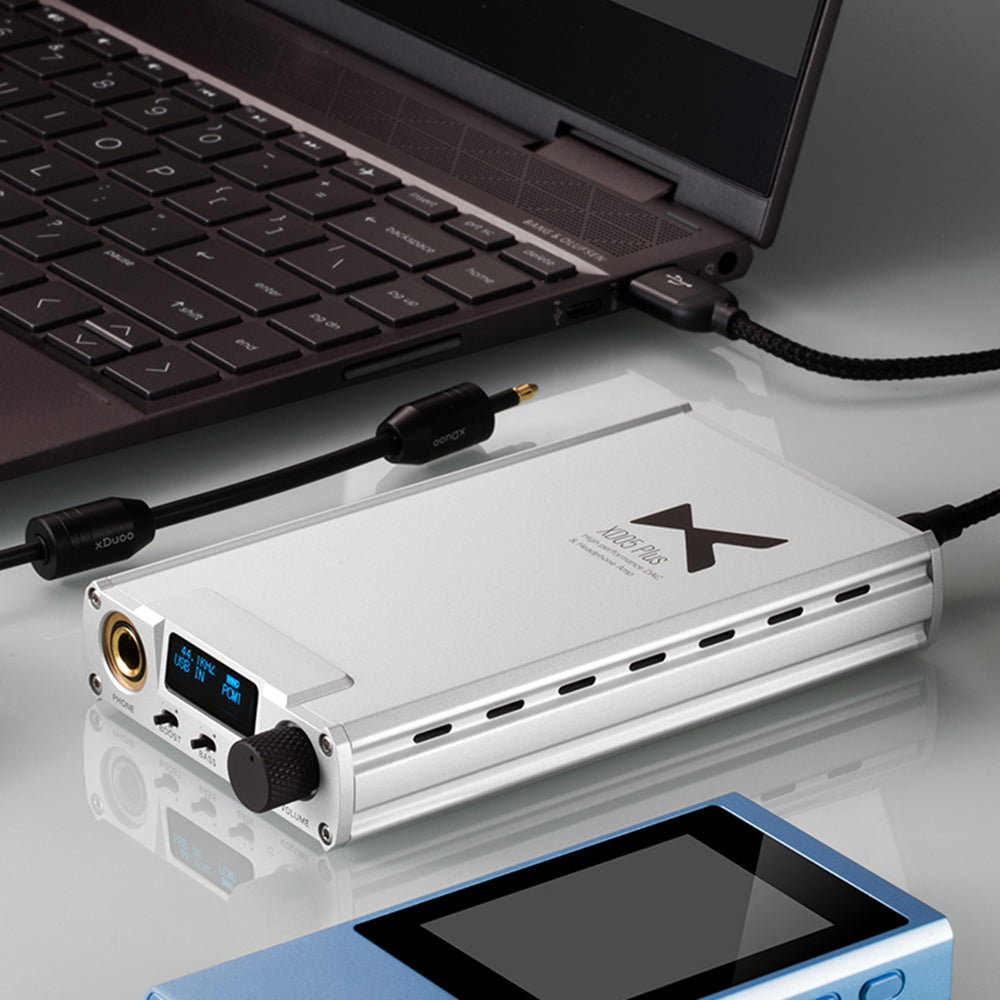

Multiple Audio Inputs

Supports USB/Coaxial/Optical/Aux in, the headphone amplifier could be connected with various multimedia devices. Besides, all inputs support DSD.

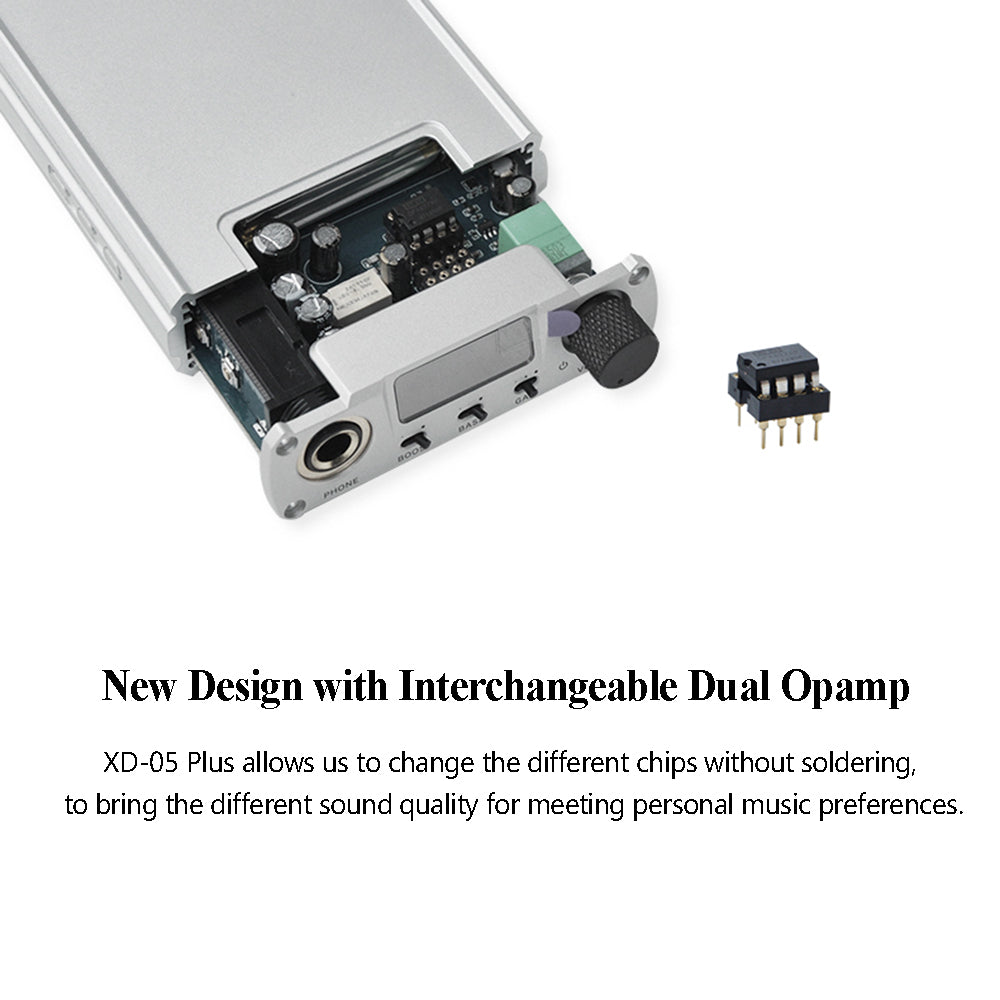

Interchangeable Dual Opamp

New design with Interchangeable Dual Opamp - XD-05 Plus allows us to change the different chips without soldering, to bring the different sound quality for meeting personal music preferences.

More Powerful Output

Compared with XD-05, XD-05 plus has 1000mW output power @32ohms loads, easily driving higher impedance headphones.

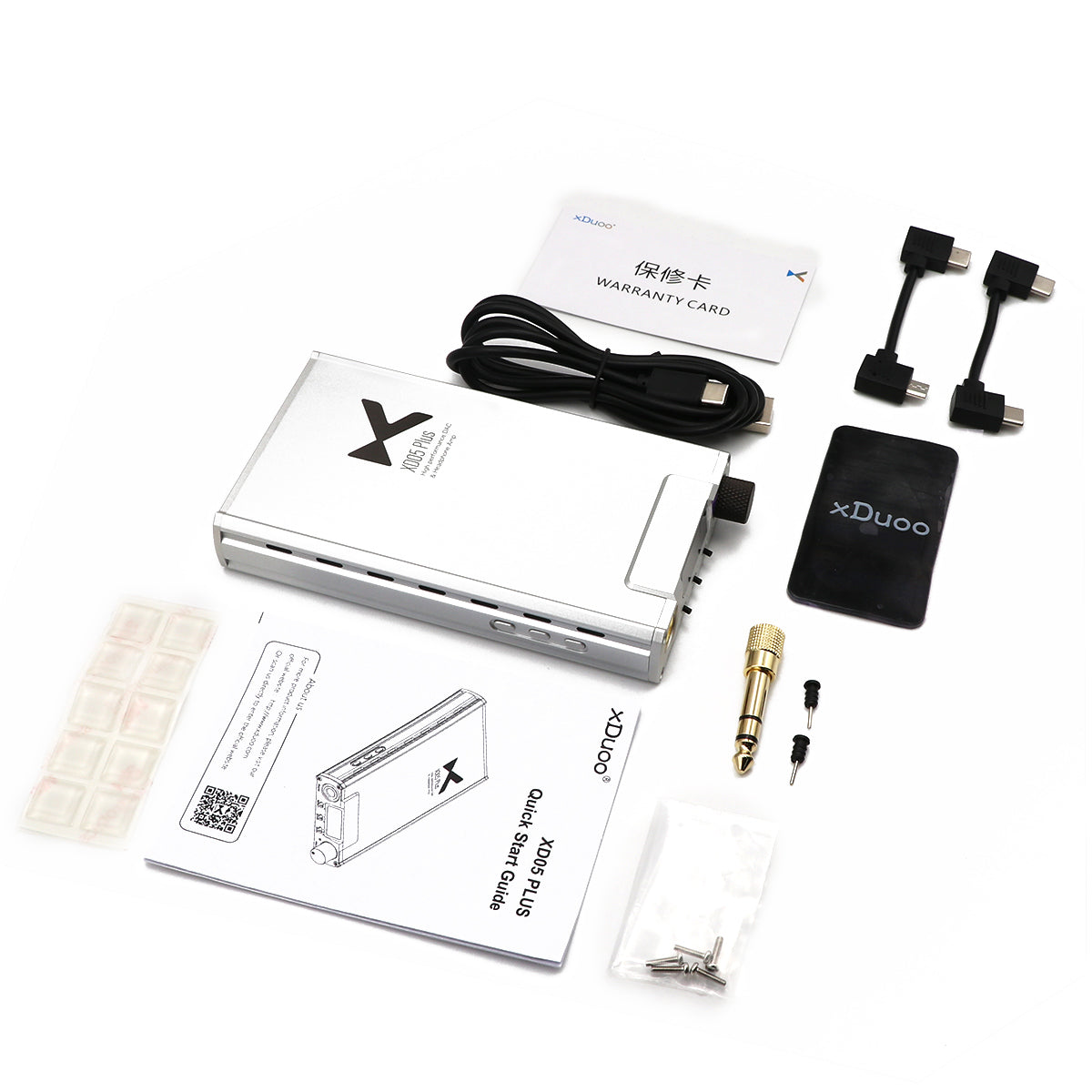

Inside the Box

  • USB charging cable
  • USB PC cable
  • 4 rubber feet
  • Silicone band
  • User manual

1 Year Warranty

The xDuoo XD-05 Plus Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Compliant operating systems
Windows XP/7/8/10, Mas OS X, IOS, Android
DAC chip
AK4493EQ
USB chipset
XMOS XU208
Output power
1000mW at 32 ohms
Frequency response (amp)
10Hz~100kHz (±0.5 dB)
Frequency response (USB/SPDIF)
20Hz~20kHz (±0.5 dB)
THD+ N (USB/SPDIF in)
0.0016% at 1kHz
THD + N (aux in)
0.0009% at 1kHz
Earphone Interface
0.78mm 2pin
S/N
117dB
Crosstalk
≥75dB
Battery
3.8V / 5000mAh
Battery life
≥13 hours (USB in), ≥21 hours (SPDIF in), ≥40 hours (aux in)
USB (PCM)
16–32bit / 44.1–384kHz
DSP
DOP / NATIVE mode, DSD64–256 (1bit / 2.8M–11.2M)
DXD
24–32bit / 352.8K–384kHz
OPT/COA (PCM)
16–24bit / 44.1–192kHz
DSD
1bit / 2.82 Mhz (DOP)
