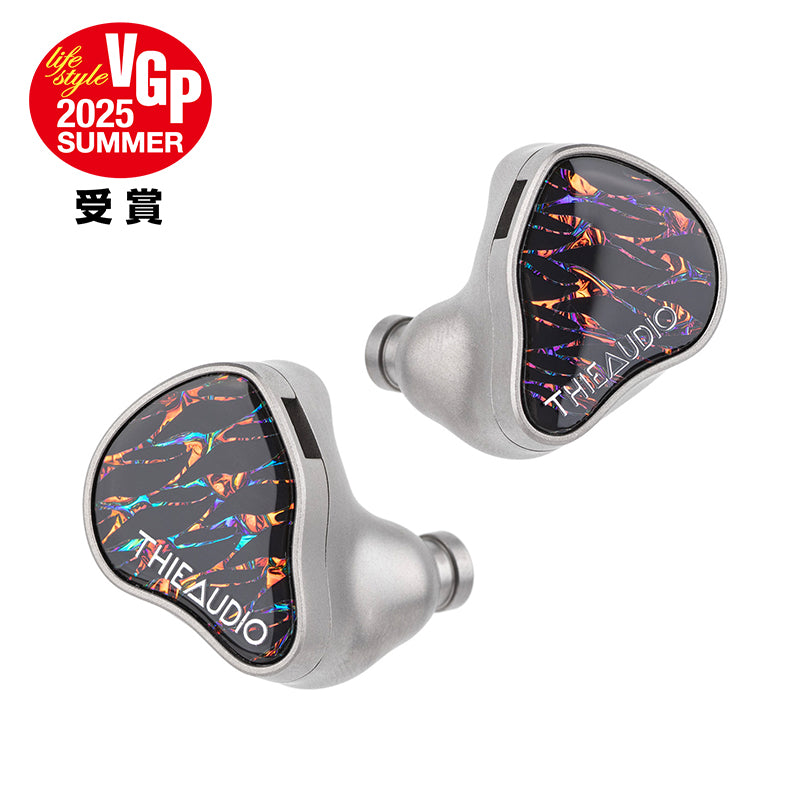

THIEAUDIO Valhalla
THIEAUDIO Valhalla
Flagship IEM with 19 Drivers and Precision Bass System
The THIEAUDIO Valhalla sets a new standard with its 19-driver configuration per side, featuring four Sonion subwoofers, ten low-midrange drivers, four Knowles mid-treble drivers, and one ultra-treble tweeter. With a 4-way crossover and multi-tubing system, it delivers a 10dB bass shelf with sharp decay at 200Hz, warm midrange, and extended treble up to 40kHz. Powered by the Precision Bass System, the Valhalla ensures subwoofer-level impact with reduced ear fatigue, offering unmatched clarity and tonal balance for professionals and enthusiasts.
Pinnacle of THIEAUDIO’s Acoustic Mastery: The THIEAUDIO Valhalla represents over two years of research and development, drawing on the expertise of engineers from multiple countries. Designed with three key goals in mind—pushing driver capacity limits in IEMs, achieving unparalleled technical performance, and showcasing tonal superiority—the Valhalla stands as the culmination of THIEAUDIO's technological and artistic breakthroughs over the past five years.
Cutting-Edge 19-Driver Design: The Valhalla features an impressive array of 19 drivers per side, demonstrating the highest resolution among THIEAUDIO products. This includes four Sonion 38D1XJ007 subwoofers, ten Sonion E50DT0005 low-midrange drivers, four Knowles RDE 33729 mid-treble drivers, and one Knowles WBFK 30095 ultra-treble tweeter. This intricate combination of premium drivers ensures exceptional technical precision and remarkable sound quality.
Precision Bass System (PBS): THIEAUDIO's proprietary PBS is engineered to emulate a true subwoofer experience in an IEM. This innovative system features a meticulously designed resonance chamber and low-frequency filter cavity, achieving a precise 200Hz bass shelf and extending bass impact down to ultra-low frequencies of 5Hz to 20Hz. The PBS not only enhances bass depth and clarity but also minimizes ear fatigue through a pressure relief valve, ensuring both acoustic excellence and user comfort.
Tonal Precision and Superior Tuning: The Valhalla employs advanced 4-way passive crossovers and a multi-tubing acoustic network to achieve THIEAUDIO’s signature tuning. Its balanced sound profile includes a 10dB bass shelf with quick decay and a sharp cutoff at 200Hz, delivering powerful bass impact without muddying the low-mids. The midrange features a gentle 1dB decay slope from 200Hz to 800Hz, providing a perfect blend of neutrality and warmth. The treble is precisely tuned with an 8dB pinna curvature at 2.8kHz, aligning with human auditory perception and extending ultra-treble performance up to 40kHz.
At THIEAUDIO, we combine innovative technology with thoughtful acoustic design to create In-Ear Monitors that bring your music to life.
Focused on delivering clarity and detail, we design our products with both music enthusiasts and professionals in mind. Each unit is carefully crafted to ensure reliable performance and a natural listening experience. At THIEAUDIO, we’re here to help you enjoy your music the way it was meant to be heard.
Pinnacle of THIEAUDIO’s Achievements
The R&D behind the THIEAUDIO Valhalla took over two years, with input from engineers from multiple countries contributing to its development. The Valhalla was designed with three core goals: (1) Push the limits of driver capacity in an IEM format; (2) Achieve the highest degree of technical performance; (3) Establish THIEAUDIO’s tonal superiority. With five years of continuous technological and artistic development, the Valhalla reflects THIEAUDIO's pursuit of excellence in the global IEM market.
Pushing the Limits: 19 Drivers Per Side

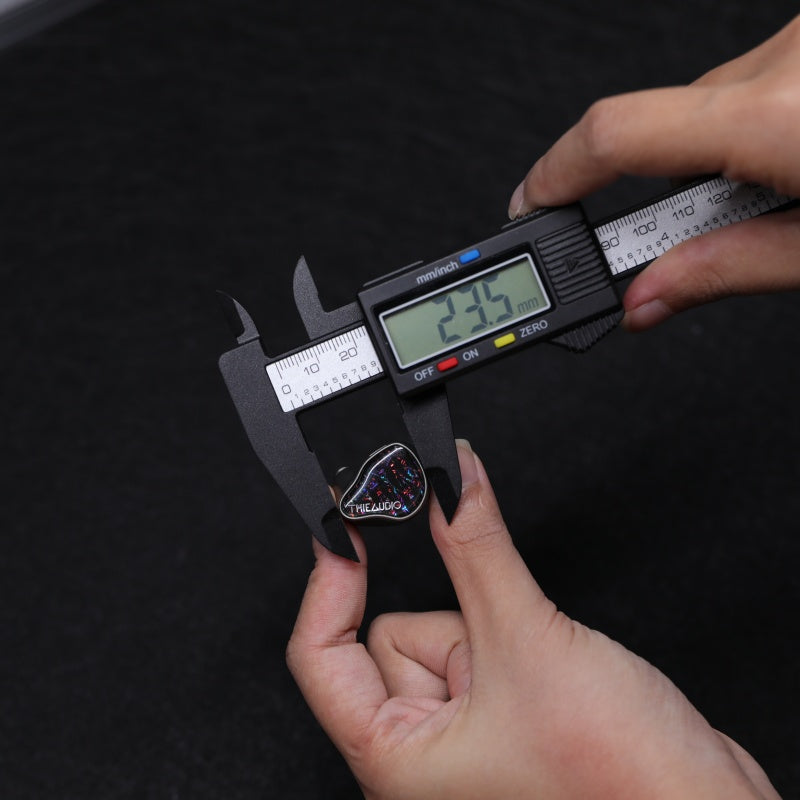

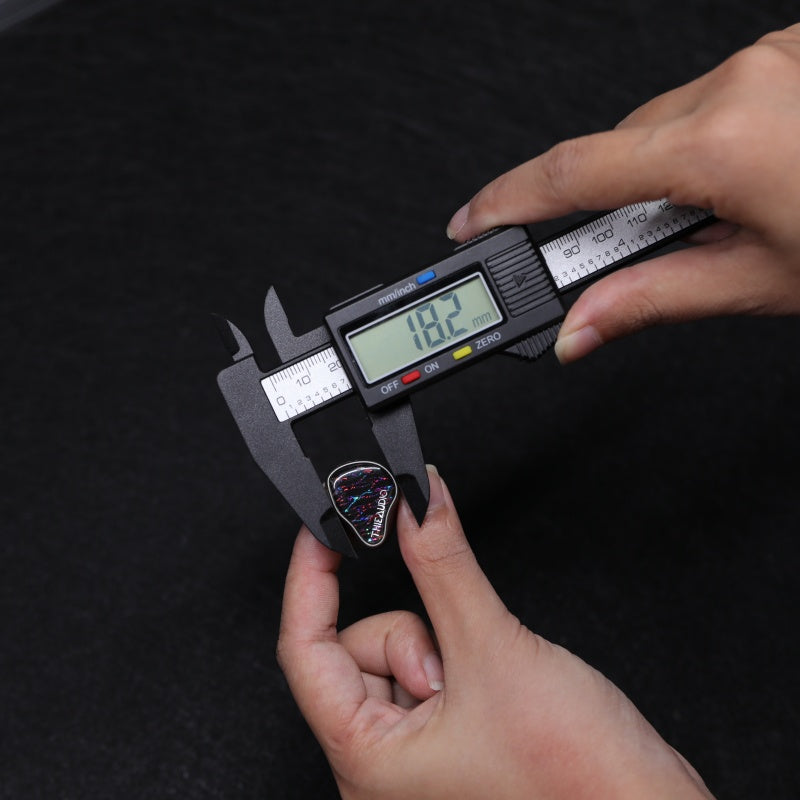

With 19 drivers per side, the Valhalla achieves exceptional resolution while maintaining a comfortable in-ear design. By utilizing a greater number of drivers, it reduces the workload on each unit, resulting in unparalleled clarity and technical performance. This engineering feat allows the Valhalla to stand as THIEAUDIO’s most detailed and refined product to date.
Genuine Imported Drivers
The Valhalla is equipped with carefully selected components sourced from industry leaders Knowles and Sonion. Each earbud features four Sonion 38D1XJ007 sub-woofers, ten Sonion E50DT0005 low-midrange drivers, four Knowles RDE 33729 mid-treble drivers, and one Knowles WBFK 30095 ultra-treble tweeter. These imported drivers ensure precise, high-fidelity audio reproduction, meeting the standards of professional and enthusiast users alike.
PBS: Precision Bass System
PBS (Precision Bass System) is THIEAUDIO’s innovative solution for delivering a true subwoofer-like experience in an IEM. Developed over the course of a year, PBS integrates multiple low-frequency drivers within a specially designed resonance chamber. This chamber is optimized to achieve a 200Hz bass shelf with enhanced depth and clarity, while the addition of a diversion tube and pressure relief vent precisely targets ultra-low frequencies from 5Hz to 20Hz. The design not only enhances sub-bass extension and impact but also reduces ear fatigue by relieving built-up pressure in the ear canal. By combining acoustic precision with ergonomic design, PBS delivers an immersive and comfortable listening experience.
A Feat of Acoustic Engineering
As THIEAUDIO’s flagship IEM, the Valhalla incorporates advanced crossover and tubing technologies. Its 4-way passive crossover network, combined with a 4-bore acoustic tubing system, ensures precise frequency division and smooth transitions across the entire spectrum. Unlike typical 1st-order crossovers, the Valhalla utilizes multiple 2nd-order networks for pinpoint accuracy. Additionally, impedance neutralization strategies ensure consistent performance regardless of the audio source. This sophisticated engineering results in an unmatched level of clarity and balance.
Tonal Superiority
The Valhalla embodies THIEAUDIO’s renowned signature tuning. The bass is characterized by a subwoofer-like impact, featuring a 10dB bass shelf that quickly decays and cuts off at 200Hz, avoiding any bleed into the mids. The midrange is tuned with a gentle 1dB slope from 200Hz to 800Hz, balancing neutrality with a touch of warmth. The treble features a smooth 8dB pinna gain at 2.8kHz, with extended ultra-treble output reaching up to 40kHz, offering brilliance and clarity without harshness. This tonal balance makes the Valhalla suitable for both professional and casual listening.
Grade 5 Titanium Housing

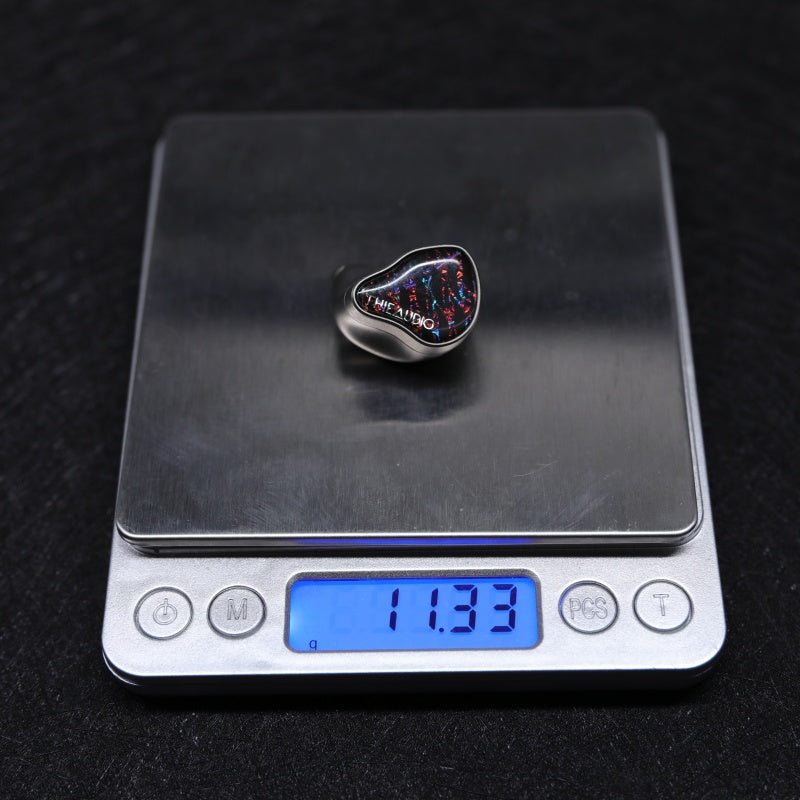

The Valhalla features Grade 5 Titanium, renowned for its exceptional strength and widely used in aerospace applications. This premium titanium housing offers an ultra-lightweight wearing experience while ensuring superior durability and strength compared to typical resin, plastic, or metal IEMs. Each shell is precision-crafted using advanced CNC technology. The newly designed ergonomic shape combines lightweight comfort with enhanced durability, making the Valhalla as premium in build quality as it is in sonic performance.
A Promise to Quality
The Valhalla reflects THIEAUDIO’s commitment to craftsmanship and quality. Each unit is handcrafted by a single engineer, requiring an entire day to complete. Drivers are meticulously measured and hand-paired before assembly, and each completed unit undergoes three stages of inspection: post-assembly testing, cosmetic checks, and accessory verification.

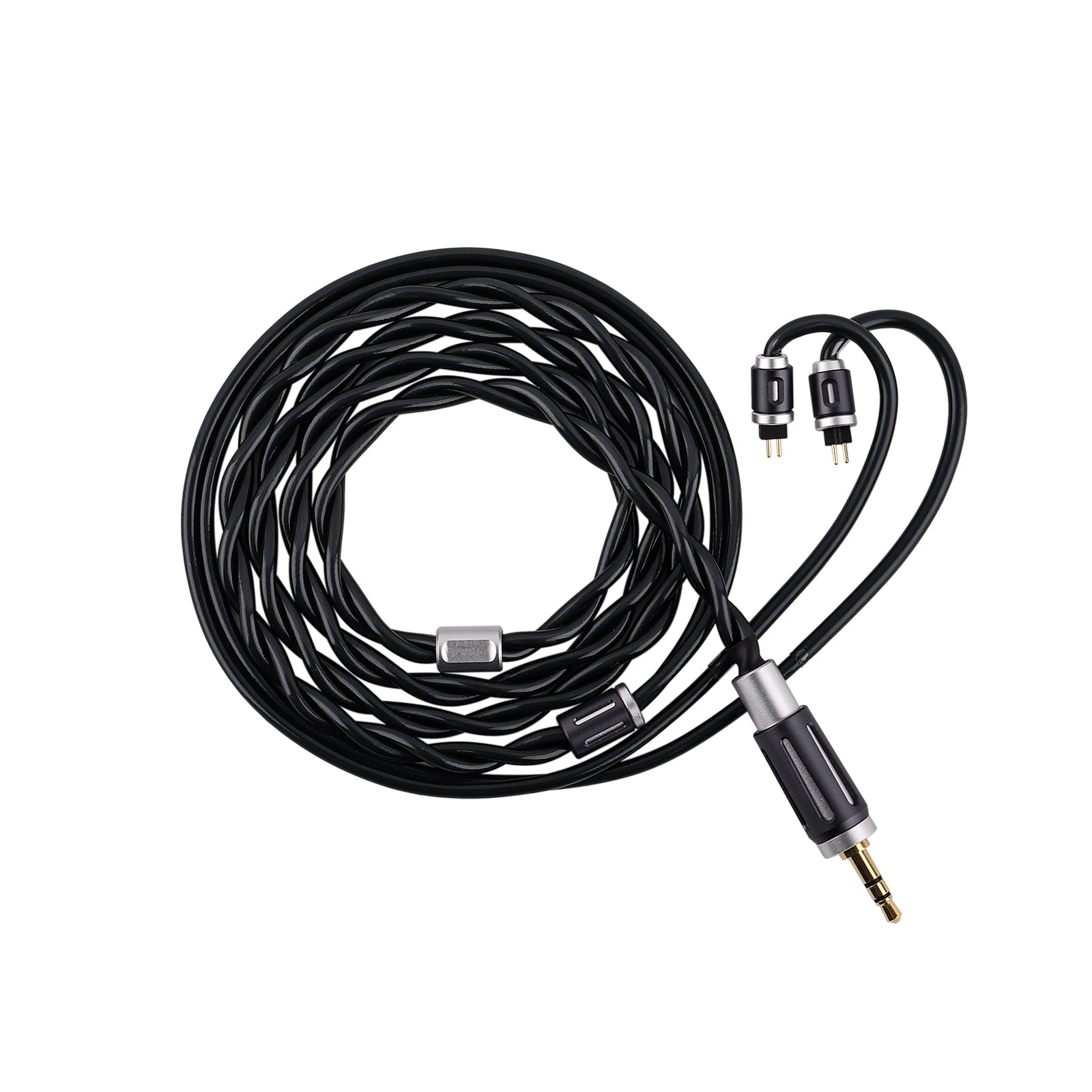

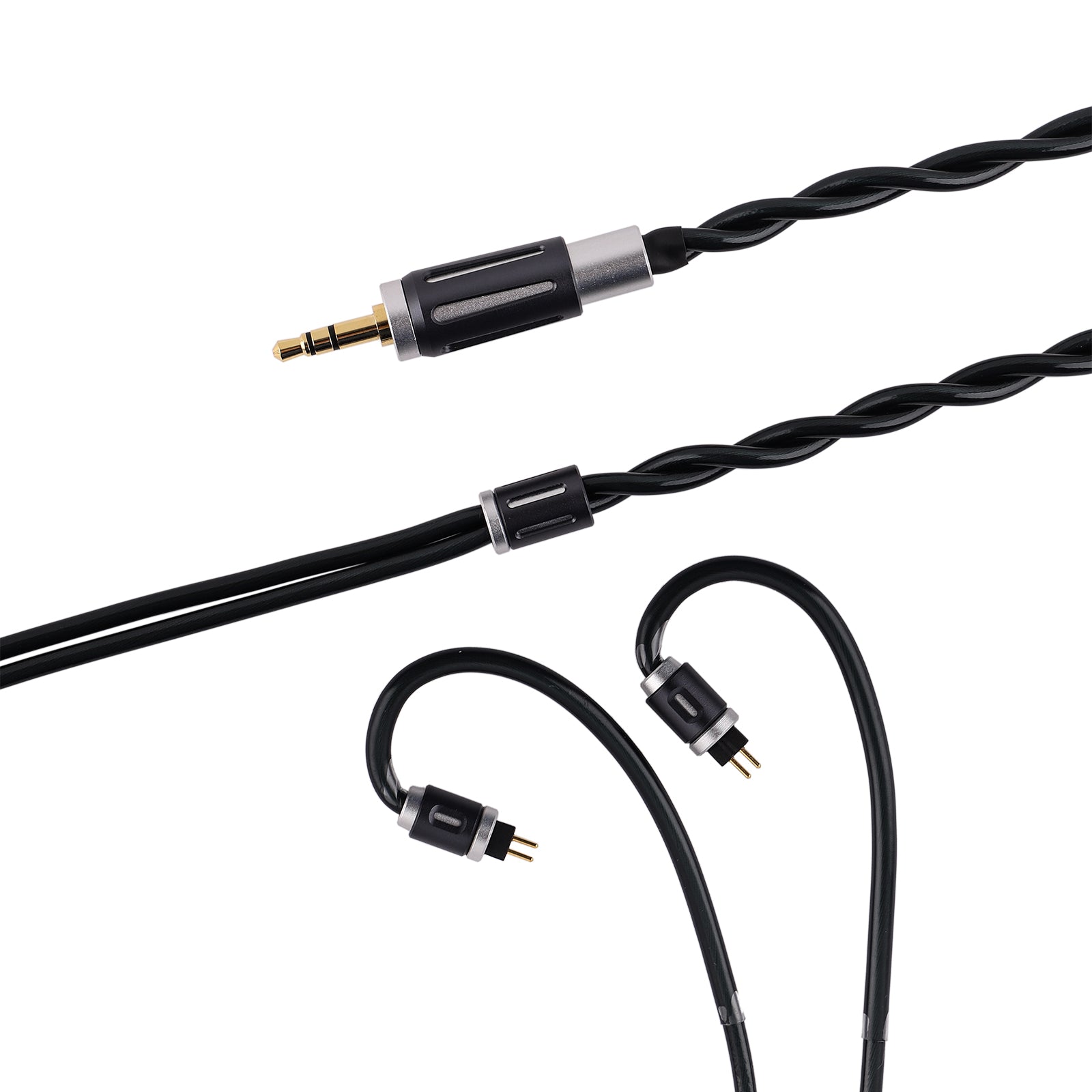

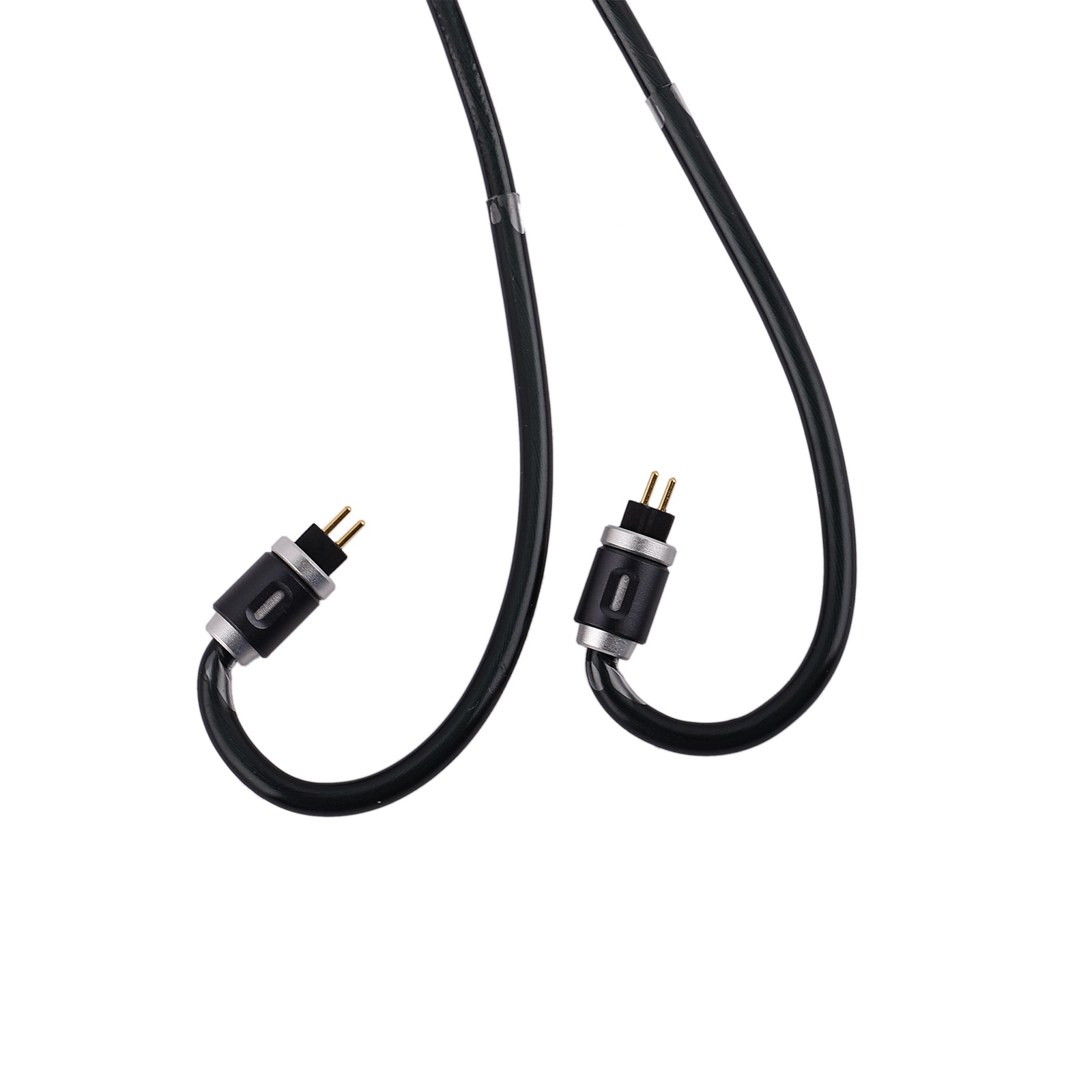

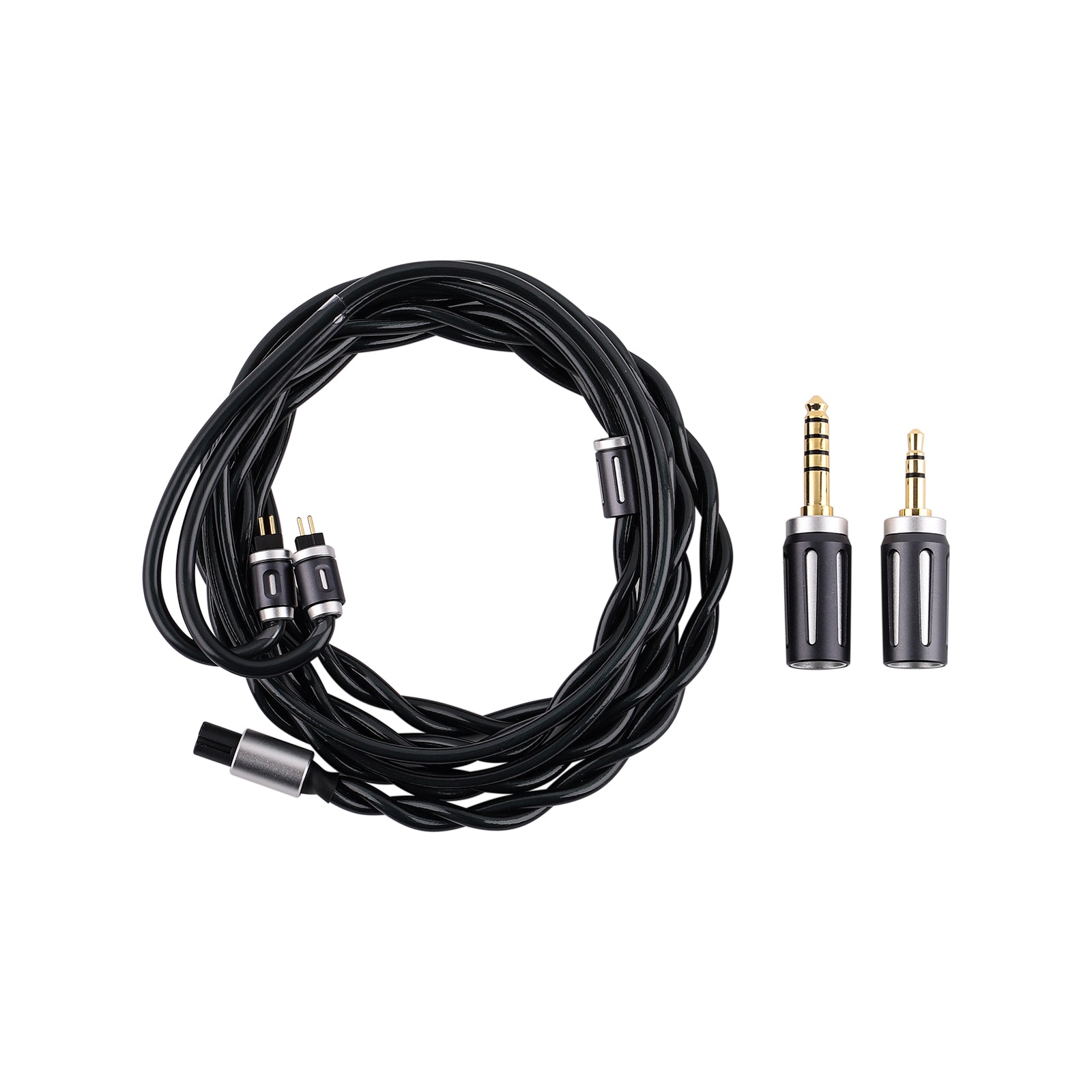

EliteNoir Cable
The Valhalla includes the EliteNoir cable, THIEAUDIO’s flagship offering for premium audio performance. The cable features a combination of 5N and 4N silver-plated LCOFC wires, insulated with Smoke Black-Blue Soft PVC sourced from the USA. Its construction includes 161 individual wires, 20AWG specification, and Mundorf Supreme Solder, ensuring lossless audio transmission. The cable’s design also incorporates a refined bifurcation, barrel, and multi-plug system for enhanced durability and compatibility. Offering an expansive soundstage, powerful bass, and precise imaging, the EliteNoir cable elevates the Valhalla’s performance, making it the ideal companion for audiophiles seeking a top-tier listening experience.
Technical Details
Frequency Response Range
10Hz - 44kHz
Impedance (@1kHz)
9Ω
Sensitivity (@1kHz)
103dB
Driver Configuration
Low Frequencies: 4 Sonion 38D1XJ sub-woofers
Mid Frequencies: 10 Sonion E50DT dual drivers
High Frequencies: 4 Knowles RDE-33729
Ultra-high Frequencies: 1 Knowles WBFK-30095
Crossover and Tubing Design
Crossover: 4-way passive crossover
Tubing: 4-bore acoustic tubing
