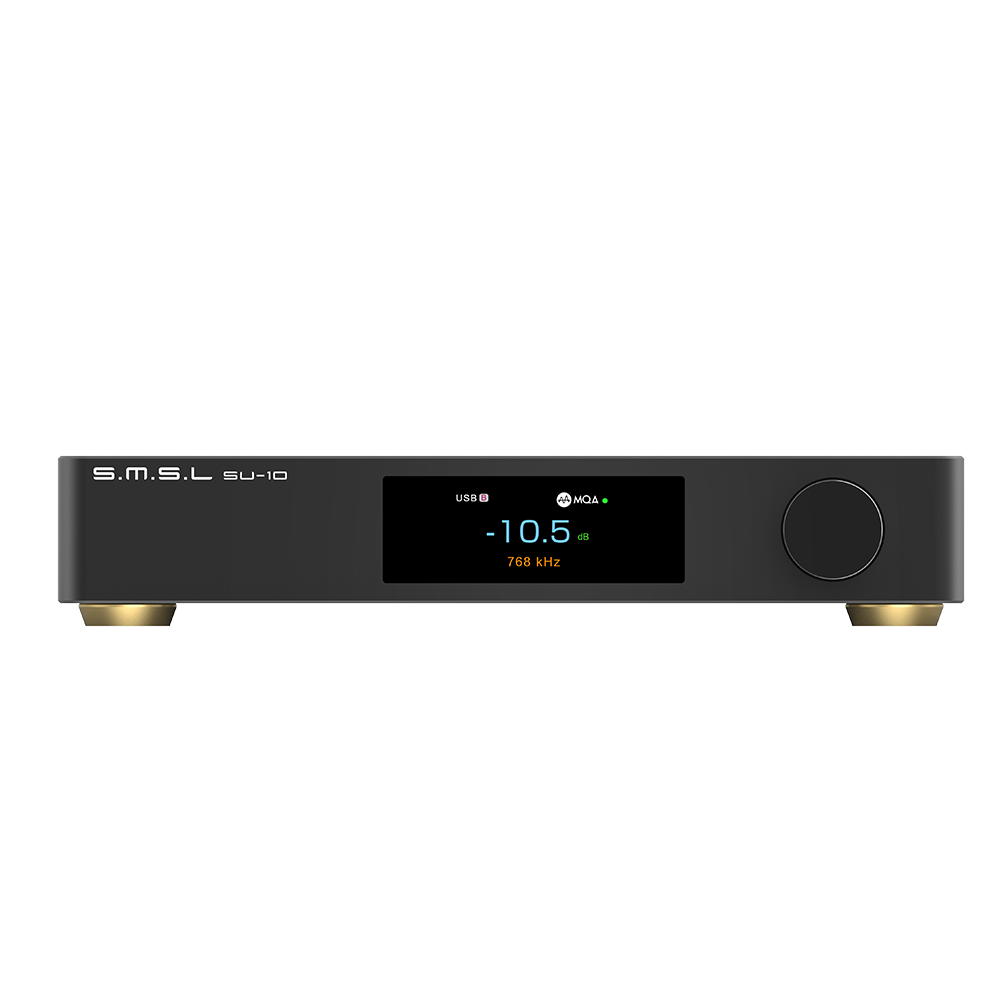

SMSL SU-10

High End Dual ES9038PRO Bluetooth Decoder

    16-channel flagship Delta Sigma DAC
    Dual Linear Power Supplies
    Qualcomm’s Latest Bluetooth Chip
    3rd Gen USB Controller
    Aluminum Alloy shell & Tempered Glass Display
    Support MQA and MQA CD
Regulärer Preis €899,99
Verkaufspreis €899,99 Regulärer Preis

16-channel flagship Delta Sigma DAC

The SU-10 DAC is SMSL’s 2022 flagship Delta Sigma DAC. Utilizing two ES9038PRO DAC chips, the SU-10 boasts 16 channels and 21 op amps for an exceedingly detailed sonic experience. SMSL has designed a third-generation DAC circuit for the occasion, offering an incredibly low THD+N of 0.00005%.

Dual Linear Power Supplies

The digital and analog components are supplied by separate linear power supplies. This, accompanied by shielded, low-noise power supply processing, results in noise as low as 1uVrms.

Qualcomm’s Latest Bluetooth Chip

Equipped with Qualcomm’s latest Bluetooth chip, the SU-10 supports 24-bit/96kHz Bluetooth formats. It provides high-definition wireless signal input to the SU-10 with support for LDAC, APTX HD, APTX, SBC, and AAC transmission protocols. With LDAC protocol, SU-10 takes input at 24-Bit/96kHz.

3rd Gen USB Controller

SU-10 adopts XMOS’s 3rd-generation 16-core XU316 USB processor chip. It’s a true 32-Bit USB solution that supports high-resolution 32-Bit/768kHz PCM signals, and Native DSD512 signals, and also provides DoP functionality.

Aluminum Alloy shell & Tempered Glass Display

SU-10 comes with precise CNC milled Aluminum Alloy shell, the outer finish is anodized and chamfered to bring a delicate smooth finish and reliable durability. SU-10 also features a bright color display, the display panel provides high light transmission and extremely long service life.

MQA & MQA-CD

Both USB and SPDIF inputs support MQA and MQA-CD formats, giving you more options to enjoy your library at the highest quality. It supports MQA decoding over USB, I2S, AES, Coaxial, Optical inputs, and MQA CD decoding via Optical, Coaxial, and AES inputs.

Inside the Box

  • 1 x SMSL SU-10
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Technical Details

Input
USB / Optical / Coaxial / Bluetooth / I2S / AES
Output
RCA / XLR
Line output amplitude
XLR 5.1Vrms RCA 2.6Vrms
THD+N
0.00005%(-125dB)(UN-WTD)
Dynamic range
135dB(XLR), 128dB(RCA)
SNR
135dB(XLR), 128dB(RCA)
USB
USB 2.0 Asynchronization
USB compatibility
Windows 7 / 8/ 8.1 / 10(Needs Driver)
Mac OSX10.6 or Later、Linux(Driverless)
MQA decode
USB / Optical / Coaxial/ 12S / AES
MQA-CD decoder
Optical / Coaxial / AES
Sampling rate & Bit Width
USB
PCM
44.1 ~ 768kHz(32bit)
DSD
2.8224 ~ 22.5792MHz(1bit)
Optical / Coaxial
44.1 ~ 192kHz(24bit)
DoP
DoP256(USB),DoP64(Optical / Coaxial / AES)
Bluetooth
LDAC: 24bit/96kHz (990kbps/ 660kbps/330kbps)
aptX-HD: 24bit/ 48 kHz_ 576kbps
aptX: 16bit/44.1 kHz_352kbps
SBC: 16bit/44.1kHz_328kbps
AAC: 16bit/44.1kHz_3280bps
Power Consumption:<30W
Standby power :<0.5W
Size: 240*185*39mm (WxHxD)
Weight: 1.86kg/4.1lb
