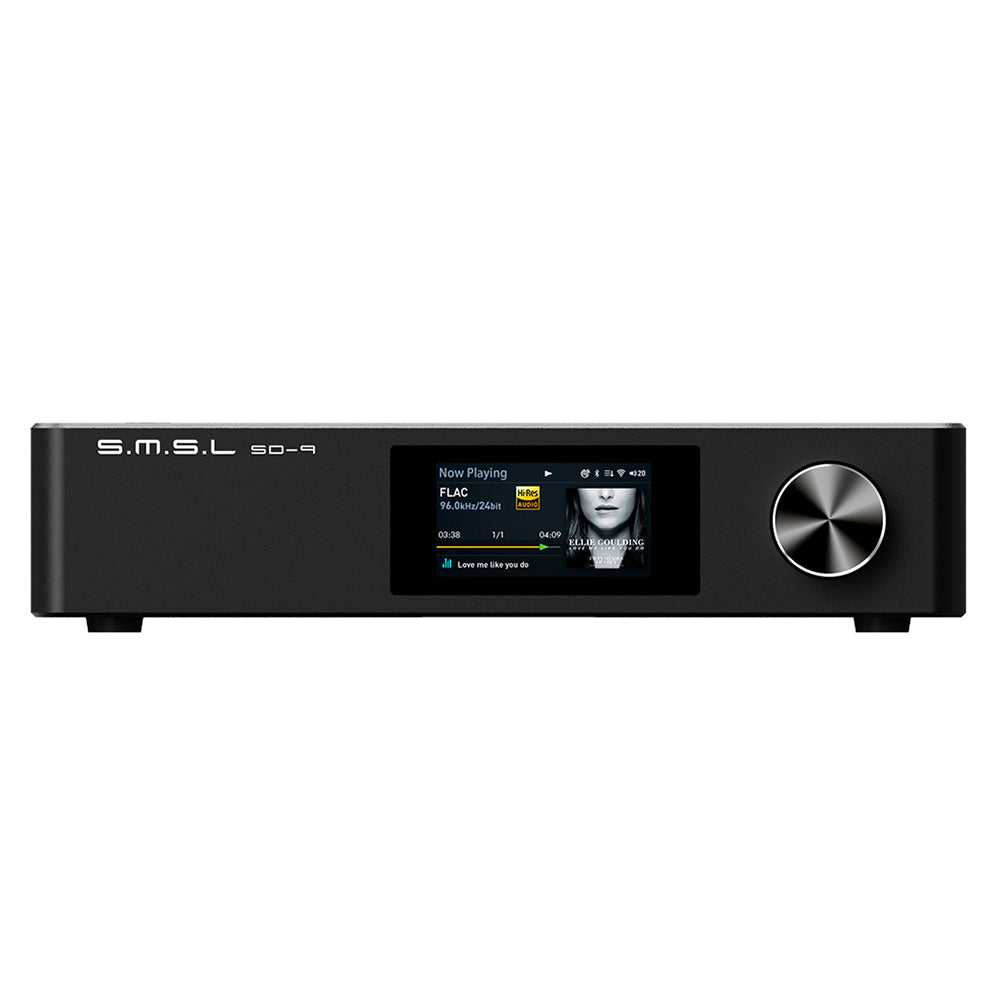

SMSL SD-9
Full Decoding Bluetooth 4.0 HiFi Music Player
- Precise Audio Architecture
- Various Playback Modes
- Full Function Interface Output
- Gorgeous Full Aluminum Alloy and Glass
- Multiple Control Methods
SMSL SD-9
Precise Audio Architecture
SD-9 adopts SOC(ARM)+CPLD architecture, where SOC is responsible for decoding. CPLD is responsible for clock management of the audio system. Audio clock is generated by 2 audio frequency clocks(22.5792mhz,24.576mhz). It is worth mentioning that this architecture can greatly reduce Clock jitter to achieve precise audio playback.
Various Playback Modes
The SMSL SD-9 features streaming playback of DLNA and Airplay and Hiby link. All of these modes can help SD-9 connect to playback with ease. Besides, there are many other modes to playback, including wireless and wired NAS, U Drive, hard disk, PC, Cell phone USB connection, Bluetooth, and DLNA. It can also support QQ Music, Kugou Music, and NetEase Music to playback.
Full Function Interface Output
The SMSL SD-9 comes with omnipotent interface output with Optical, Coaxial, I2S, AES / EBU, and USB signal outputs to meet your needs for HIFI audio sources. And SPDIF interface also supports DOP and D2P. Besides, an external hard-Disk connected by USB supports up to 4TB capacity and supports NTFS/FAT32 format. With the USB DAC function which can play music from the computer by USB-PC, USB-OTG can connect to other USB DAC, and output high bitrate or even DSD audio through USB.
Gorgeous Full Aluminum Alloy and Glass
The SD-9 features an excellent visual appearance with a whole piece of tempered glass on the top and an integrally CNC milled of full aluminum alloy shell, which effectively prevents oxidation. The use of non-magnetic raw materials can not only shield the interference of external magnetic fields but also have no magnetic fields. It is worth mentioning that the SD-9 can further improve the quality of music.
Multiple Control Methods
The SMSL SD-9 characterizes a 1.9-inch full-view IPS LCD display on the front and brand-new UI user interface that shows active format type, active input type and more details. It also follows with a full-functional remote control that you can control the device with ease. Besides, the knob buttons on the panel and the remote both can control SD-9 with full-function.
Technical Details
output mode: optical, Coaxial, AES, Bluetooth, USB,12S
USB Audio: DSD Top support DSD256
PCM：Top support PCM384kHz
USB Audio System compatibility: windows 7/8/8.1/10; Mac OS X; Linux
DSD D2p: Transcoding 88.2kHz
DSD DOP: supports up to DSD256l
DSD Native: supports up to DSD 256
Digital output DOP output: supports up to DSD64
PCM: supports up to 384kHz
File system: supports FAT/FAT32/NTFS
Micro SD capacity of card: Supports up to 256G
USB drive/Hard disk: supports up to 4TB
USB Maximum output current: 2A (The sum of two USB output currents)
USB A maximum output current: 2A
USB DAC output: Support
Bluetooth version: 4.0 Version
APT-X: support
Bluetooth input: support
Bluetooth output: support
HiBy Link: support
WIFI Function: Support
WIFI Specifications: Support 2.4G/5G
Mesh Size: 100Mb/S
File Browsing: Support
System Language: Simplified Chinese、Traditional Chinese、English
Software Upgrade: Support
Power Consumption: 2w
Standby: 0.5w
