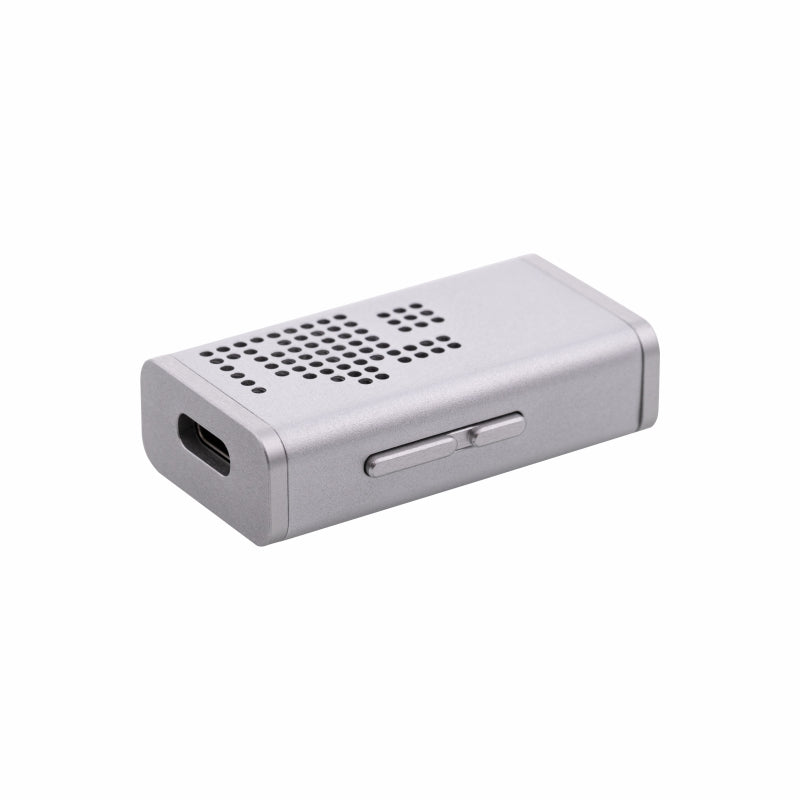

Moondrop Dawn Pro

Dual CS43131 Portable USB DAC/AMP

  • Dual CS43131 Flagship DAC Chips
  • 100-level Smooth DAC Volume Control
  • 131dB Dynamic Range Larger Dynamic
  • 4Vrms/120mW Lossless Output Power
  • Aluminum Alloy Housing Diversion and Heat Dissipation Design
Regulärer Preis €49,99
Verkaufspreis €49,99 Regulärer Preis

Dual CS43131 Flagship DAC Chips

DAWN PRO incorporates dual flagship decoding and amplifier chips, the CS43131, developed by Cirrus Logic. Additionally, it integrates a HiFi-grade USB digital interface chip, along with dual independent crystal oscillators and three discrete power supply chips. This amalgamation forms a sophisticated HiFi audio circuit architecture, characterized by high efficiency and top-tier performance. This meticulously designed system guarantees ample thrust, remarkably low distortion, minimal noise, and an intricate soundscape, all achieved with minimal power consumption.

100-level Smooth DAC Volume Control

Offering near-perfect 100-level volume control, this feature distinctively isolates the device's volume control from the smartphone. This not only enhances overall performance but also delivers a seamless and refined control experience.

131dB Dynamic Range Larger Dynamic

Boasting an extraordinary reduction in background noise to an ultra-low level, the system ensures that your audio experience remains undisturbed by any unwanted interference. Furthermore, the distortion levels have been meticulously minimized to an astonishing 0.0001%, guaranteeing unparalleled audio purity. The Signal-to-Noise Ratio (SNR) further impresses by soaring beyond 116dB, underscoring the system's exceptional ability to faithfully reproduce the most delicate nuances in your soundscapes.

4Vrms/120mW Lossless Output Power

Delivering an impressive 4Vrms/120mW of lossless output power, this feature ensures a robust and dynamic audio performance that can effortlessly drive a wide range of headphones. Its versatility extends across various headphone types, ensuring seamless compatibility and optimal performance with each. Whether you're using high-impedance audiophile headphones or more sensitive in-ear monitors, this system adapts flawlessly, catering to the unique characteristics of each headphone model. This adaptability underscores its ability to provide an exquisite audio experience, fine-tuned to your individual preferences and headphone choices.

Aluminum Alloy Housing Diversion and Heat Dissipation Design

The chassis of DAWN PRO seamlessly integrates aviation-grade aluminum alloy through a combination of CNC and mold forming techniques. Anodized surface treatment enhances both its tactile feel and robustness, culminating in an exceptional blend of texture and durability.The heat dissipation architecture of DAWN PRO draws inspiration from the design principles of high-fidelity desktop devices. Strategically positioned heat dissipation vents, situated above the areas prone to higher heat generation, optimize the system's cooling efficiency. This intelligent arrangement effectively enhances heat dissipation, contributing to the device's overall thermal management, ensuring prolonged and stable operation.

Inside the Box

  • 1 x Moondrop Dawn Pro
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Technical Details

Weight
13g
Size
42mm*22.45mm*12.39mm
EarphoneJack
3.5mm single-ended 4.4mm balanced jack
Frequency Range
5Hz-82kHz (1dB)
Background Noise
4.4mm: 1.3μV (AES17 20kHz)3.5mm: 1.5μV (AES17 20kHz)
SNR
4.4mm:131dB(A-wt) 3.5mm:123dB(A-wt)
Line Out
4.4mm:4 Vrms 3.5mm:2Vrms
Dynamic Range
4.4mm:132dB (A-wt)
THD+N Ratio
0.00014% (AES17 20kHz,non-loaded)
Package contents:
[DAWN PRO]Micro DAC +AMPType-C to Type-C adapter cable*1Type-A to Type-C adapter*1

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: No ETA. All orders will be shipped out sequentially.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.

Authentic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Worldwide Free Shipping

We are located in China but send our products worldwide for free. T&Cs apply.

1 Year Warranty

We provide 1 year warranty for the all products except the cables and accessories*.

Online Support

Need help?, we are here to assist you
Monday - Friday: 09:00 – 18:00 (UTC+8)

Customer Reviews

Based on 7 reviews
71%
(5)
29%
(2)
0%
(0)
0%
(0)
0%
(0)
R
Ron Rivera
Happy customer

What a difference between the moondrop makes. The volume using the moondrop is more powerful bringing the music to life. Without it, the volume had to be really high. Now I have more music with less volume.

J
JantiykT
For the price, it's a perfectly good DAC

It does what it says on this page. I've tried it with a variety of IEMs and headphones over the last 2 months and can't really complain about the sound quality. As some people before me have mentioned, the app isn't that great, but at least you can use it to adjust the LED's function and to set the gain... so it actually knows what it needs to know, so I can't complain too much about that either. Plus points for the metal housing and packaging.

J
James Montgomery
Amazing

High quality, clean sounding and powerful output for all IEMs and most headphones. Powers my HD58X with no issues and gets loud. One of the best budget dongle dacs. Works well as a desktop dac/amp for IEMs. Worth it.

J
Johnathan Wogerman
Amazing little Dac/Amp

I love everything about this thing. Small, durable (metal), great sound quality, has different colors for the quality of sound you are receiving, and has a 4.4mm balanced port. I can’t think of any possible improvements other than maybe if it could do my laundry.

T
Taipan
Miniature Banger... Great dongle!!!

Love this dongle for the price. Both Single ended and balanced connection. Quite powerful at 4 VRMS balanced. Cirrus Logic dac chips are lively....

M
Mátyás Szűcs
Great product, but could be better

So first of all, this is a really good quality portable DAC in this price point. It feels light but durable, I love the simplistic design, and the transparent cable. In terms of sound it really doesn't colour it all that much, and has just an overall great experience.
BUT, the app support is atrocious.
I'm not sure if it's because the app is still getting improved or what, but it lacks features, and is buggy.
It never recognizes my device at first, I always have to double check in the app, and then it realizes that I have it plugged in.
We have 4 different filters, which for me didn't make any real difference.
We also have a low and high gain mode, that is quite useful.
You can also adjust the LED that is placed beneath the grill, but to be honest I turned it off on day 1 and it has been like that since. They didn't translate the on option btw, that could be fixed...
And the most annoying part is that you have a volume page, but if you open that and change the volume you have to go back to the main menu and open the volume again to see the new value?!?!?!?!?
So in conclusion the device gets a 4.5 stars, the app a solid 2.
I would've also liked to see a media button, one press forward two presses backwards kinda deal, but being able to control volume and skip songs on a DAC is a luxury at this price point.
