UPGRADE DEIN SYSTEM

Mit diesem hochmodernen kompakten Digital-Analog-Konverter für den Heim-, Büro- oder Desktop-Einsatz werden Sie einen Unterschied und eine Klarheit in Ihrem Audiosystem hören, egal ob Sie Lautsprecher oder Kopfhörer verwenden.

EINFACHE VERBINDUNG

Verbinden Sie sich über den USB3.0-Eingang (USB2.0-kompatibel) mit Ihrer USB-Quelle wie einem Computer oder einem digitalen Audio-Player (DAP). Ausgang zu Kopfhörern, Aktivlautsprechern oder Verstärker mit 6,3 mm unsymmetrischen / 4,4 mm symmetrischen / Cinch-Anschlüssen

AUDIO MIT HOHER AUFLÖSUNG.

Hören Sie bekannte Songs in einem ganz neuen Licht mit reichhaltigen Details und warmen, natürlichen Tönen, die durch den Burr Brown True Native Digital-Analog-Konverter erzeugt werden, der jedes hochauflösende Audioformat bis zu PCM 24/384, DSD256, DXD 384 kHz verarbeiten kann und MQA ohne zusätzliche Konvertierung wiedergibt, sodass Sie genau so hören können, wie der Künstler es beabsichtigt hat. Auch perfekt geeignet, um den Klang für Streaming-Dienste wie Spotify, Tidal, Qobuz und Amazon Music zu verbessern

VIEL TECHNIK

Mit Technologien wie: Variable analoge Lautstärkeregelung, PowerMatch-Anpassung für iEMs/On & Over Ears und TrueBass, um den iEMs mehr Bass zu verleihen, können Sie Ihre Musik mit einer sanfteren, klareren Wiedergabe genießen.

STILVOLLES UND INTELLIGENTES DESIGN.

Aluminium in Militärqualität sorgt für ein robustes und elegantes Äußeres. Die sanften Kurven und Kanten verleihen Ihrem Zuhause oder Büro ein Gefühl von Ruhe und Frieden.

Technical Details

Input
USB 3.0 Type B (USB 2.0 compatible)
PCM
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
DSD
2.8 / 3.1 / 5.6 / 6.2 / 11.2 / 12.4 MHz
DXD
353 / 384 kHz
DAC
Bit-perfect DSD & DXD DAC by Burr Brown
Output
Unbalanced (RCA)
2.1V fixed; 1V - 3.3V max variable
Balanced (4.4mm)
4.2V fixed; 2V - 6.2V max variable
Z-out
<= 100 Ohm (unbalanced); <= 200 Ohm (balanced)
SNR
< -116dB (A) @ 0 dBFS (Unbal/Bal)
DNR
> 116dB (A) @ -60 dBFS (Unbal/Bal)
THD+N
> 0.0015% @ 0 dBFS (Unbal/Bal)
Unbalanced (1/4")
1V / 3.3V max (12 - 300 Ohm headphone)
Balanced (4.4mm)
2V / 6.2V max (12 - 600 Ohm headphone)
Output Power:
Unbalanced
> 280mW @ 32R; > 36mW @ 300R
Balanced
> 380mW @ 50R; > 70mW @ 600R
Output Impedance
< 1 ohm (Unbal/Bal)
THD+N
< 0.005% (125mW @ 32R)
SNR
>113dBA (3.3V Unbal / 6.2V Bal)
Power Consumption
~ 2.5W (max); ~0.5W (no signal)
Dimensions
Width 6.215", Height 1.375", Depth 4.709"
Inside the Box

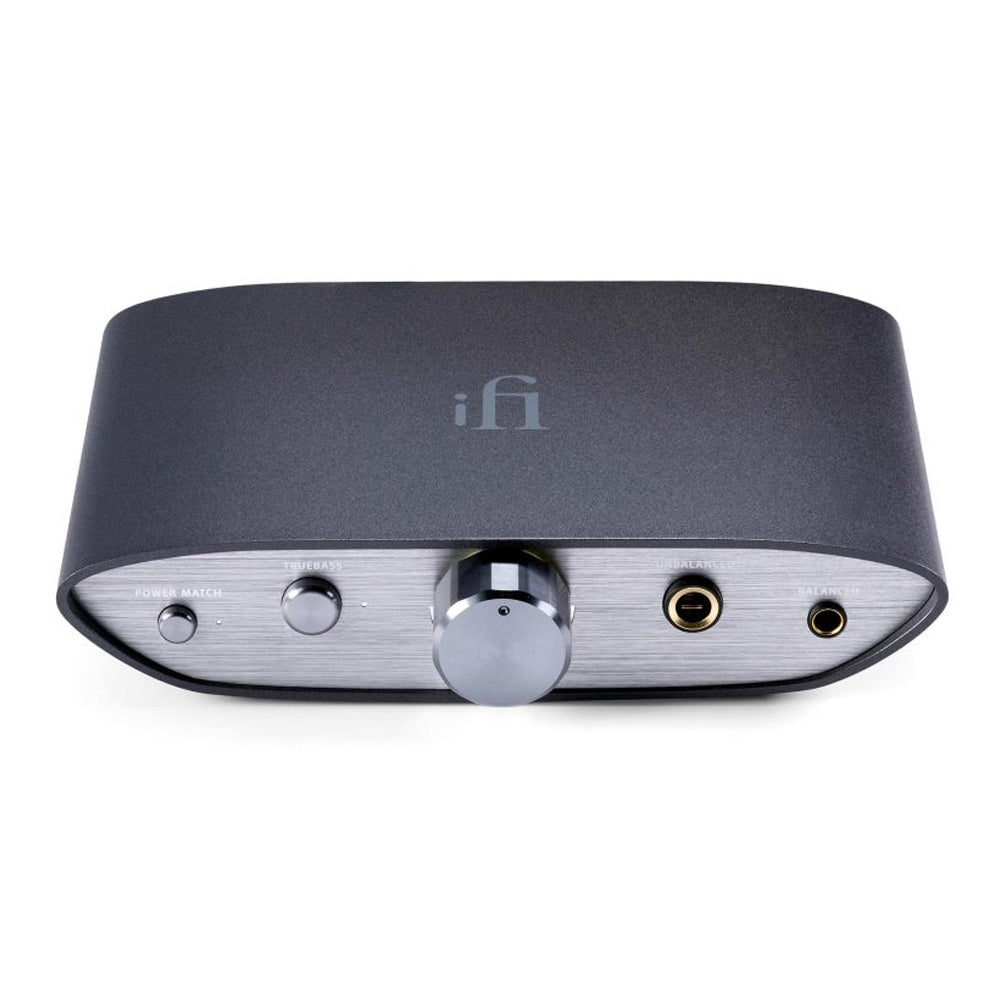

  • 1 x iFi Zen DAC V1
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

Most products within our store come with a 1 year warranty. Please check our terms of service to see more.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Nefo
An excellent dac / amp

I have been using this dac for a month and the truth is that it has fascinated me.

Let's start with its dimensions, it is large if you are used to dongles, but if you have already had one, it can be said that its size is small-medium.

Its construction is robust, nothing cheap that implies that we are facing a quality product, the only detail is its button panel since it is loose, that is, if you move this dac, they will sound like a rattle.

Its volume knob seems good and adequate to me, it is smooth and precise, behind it an LED lights up (depending on the file).

It has a good number of output ports, we have 2 balanced 4.4mm pentaconn, 1 professional output with its 3.5mm adapter, an amplifier output and its data and charging connection (it also has a power port but does not have the charger included Unfortunately).

Speaking of the sound, its performance is very good, it gives us a warm, rounded sound with excellent detail for its price, when activating the truebass we will obtain a much warmer sound, this will enhance the bass and sub-bass, but despite it keeps the music clean, it is not intrusive and it works better than a simple equalizer (I am not a fan of equalizing) but in this device using the truebass is fascinating.

Finally speaking of power, this dac / amp will cover all the needs of iems and even a large part of headband headphones, do not think that it will move you very demanding planars, if you use the balanced output and high gain you can move more demanding headphones (I would put limit 600 ohms to 95% of its capacity will move them).

In my opinion, this dac / amp is a safe purchase for anyone who starts or who only has mobile devices (dongles and low-end daps) and especially if you have headphones that are somewhat cold or balanced and you would like them to be more fun, colored and warm.
