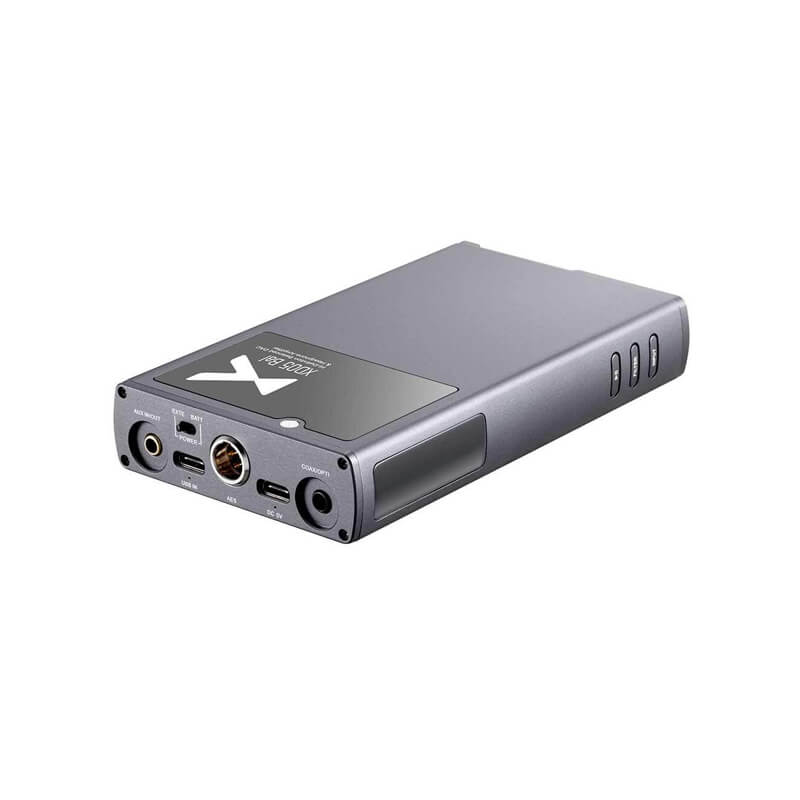

xDuoo XD05 Bal

Portable Decoding Headphone Amplifier Balanced DAC

    Premium Dual DAC Chipset featuring 2*ES9038Q2M DAC chips.
    High-Performance XMOS XU208 USB Signal Receiver
    Qualcomm CSR8675 Bluetooth Chip
    6.35mm Single-ended headphone output,4.4mm Balanced headphone output.
    PCM up to 32-Bit/768kHz, DSD up to DSD512
    USB Type-C input support.
Regulärer Preis €429,00
Verkaufspreis €429,00 Regulärer Preis

Powerful Dual DAC Chipset

xDuoo has equipped the XD-05 Balanced with a premium Dual DAC chipset featuring 2xES9038Q2M DAC chips. It provides outstanding hi-res audio signal decoding with super-clean background and ultra-low distortion. The DAC chip is paired with a premium XMOS XU208 USB signal receiver chip providing hi-res signal decoding up to 32-Bit/768kHz and DSD512 natively.

Seamless Wireless Connectivity

Featuring the flagship CSR8675 Bluetooth signal chip from Qualcomm, the xDuoo XD-05 Balanced provides a seamless wireless Bluetooth V5.0 connectivity with hi-res codecs support such as LDAC, AptX HD, AptX LL, AptX, and many more.

Powerful Balanced Output.

xDuoo XD05 Bal as the name suggests features a fully balanced 4.4mm headphone output port. The device is equipped with a premium OP+BUF amplifier circuit providing a whooping 1000mW power at 32Ω of load. This much power is more than enough to power your power-hungry headphones and makes them shine with all their glory. With the balanced headphone output, the S/N and dynamics are greatly improved. Along with this balanced headphone out port, the XD-05 Bal also features a single-ended 6.35mm headphone output.

OLED Display, Gain Switch, & Other Features.

The XD05 Bal houses plenty of more features such as OLED display, Digital Decoding Filters, Boost switch, two-way gain(+6/+15dB), premium build quality, and much more.

Inside the Box

  • 1 x xDuoo XD05 Bal
  • User Manual

1 Year Warranty

The xDuoo XD05 Bal Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Battery
3.8V/5000mAh
Screen
0.91 inch OLED
Applicable OS
Win7/8/10, Linux, Mac OS X, IOS, Android system
Sensitivity
25Ω
USB/SPDIF
20Hz~20kHz(±0.5dB)
AMP
10Hz~60kHz (±0.5dB)
Sampling Rate support
PCM up to 32-Bit/768kHz, DSD up to DSD512.
Output Power(6.35mm)
up to 1000mW(32Ω).
THD+N(6.35mm)
0.0015%@1kHz.
SNR(6.35mm)
115dB
Crosstalk(6.35mm)
≥72dB.
USB/SPDIF
20Hz~20kHz(±0.5dB)
Output Power(4.4mm)
up to 1000mW(32Ω)
THD+N(4.4mm)
0.0008%@1kHz
SNR(4.4mm)
117dB
Crosstalk(4.4mm)
≥100dB
Output Level(Aux)
2.0Vrms
Size
13cmx7.5cmx2.2cm
Weight
0.29Kg
