Powerful Portable Hi-Fi Upgrade

The xDuoo Link 3 is a high-performance USB DAC and headphone amplifier designed to dramatically improve the sound quality of smartphones, tablets, and computers. Supporting Hi-Res PCM up to 32bit/768kHz and DSD512, it unlocks true lossless audio performance far beyond standard formats.

High Output Power for Any Headphone

With up to 700mW@32Ω per channel in normal mode, the Link 3 easily drives a wide range of headphones. When powered externally, Super Power Mode boosts output to an impressive 1000mW@32Ω, delivering enhanced dynamics and unlocking the full potential of demanding dynamic and planar headphones.

XMOS XU316 16-Core USB Solution

Equipped with the professional-grade XMOS XU316 USB chip, the Link 3 ensures ultra-low latency, high-speed data transmission, and exceptional signal stability, forming a solid foundation for high-fidelity audio performance.

Dual ES9039Q2M DAC Chips

Featuring dual flagship-grade ES9039Q2M DACs, the Link 3 achieves outstanding audio specifications, including up to 130dB dynamic range and ultra-low distortion. This results in a clean background, precise detail retrieval, and highly accurate sound reproduction.

Precision 100-Level Digital Volume

The independent 100-step digital volume control allows precise adjustment regardless of device volume, ensuring perfect matching for headphones with different impedance and sensitivity.

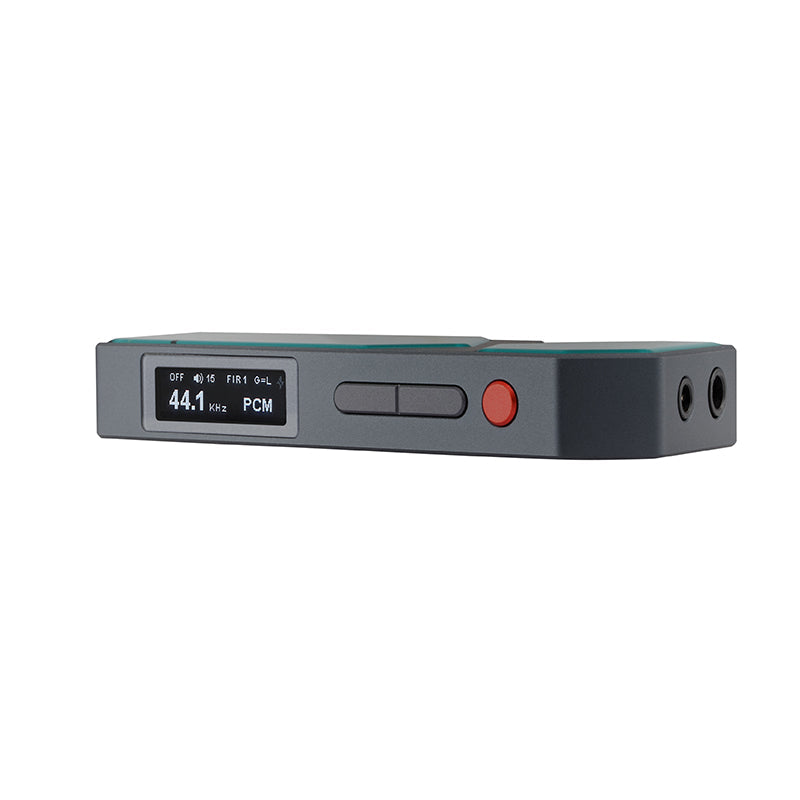

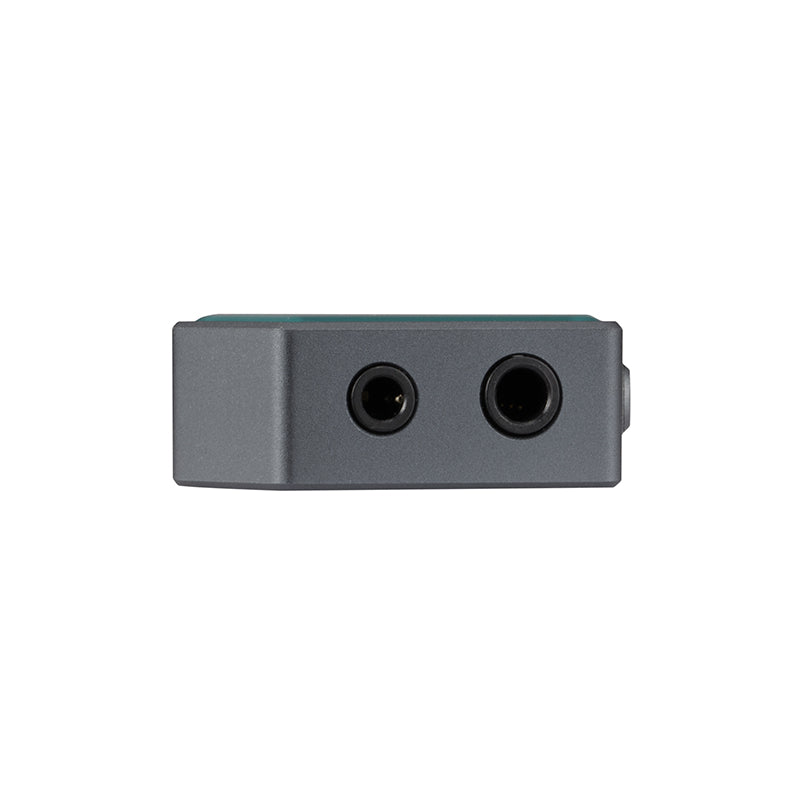

Dual Output: 3.5mm & 4.4mm

The Link 3 offers both 3.5mm single-ended and 4.4mm balanced outputs, providing flexible compatibility with a wide range of earphones and headphones while delivering improved power and audio performance in balanced mode.

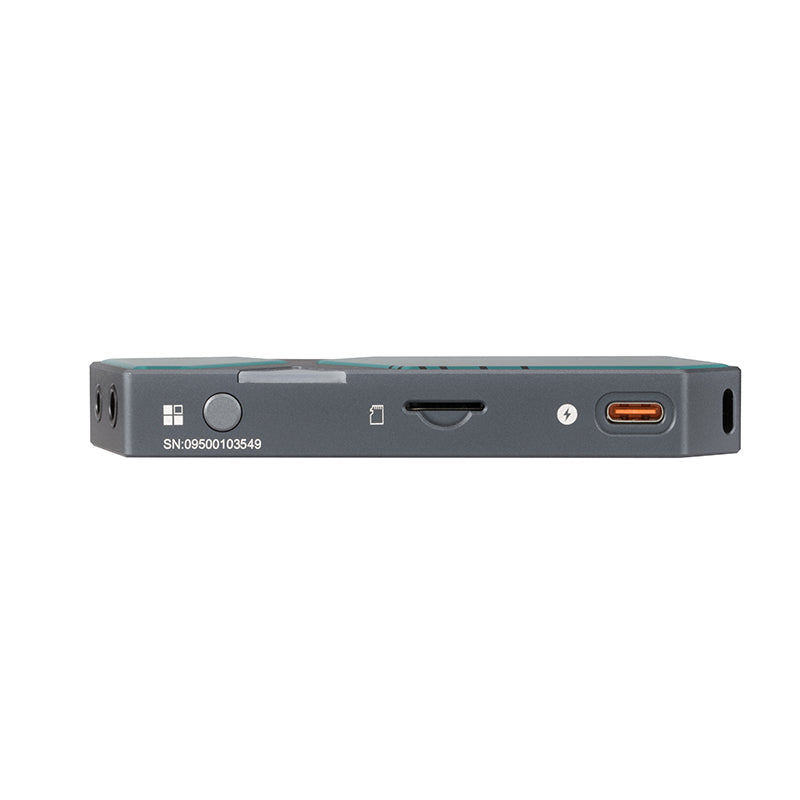

Expandable Storage Support

With a built-in micro SD card slot supporting up to 2TB, the Link 3 expands your device storage, allowing you to carry a massive library of Hi-Res music files with ease.

Gaming & Dual USB Modes

Switch to UAC1.0 mode for compatibility with gaming consoles such as Switch, PS5, and Steam Deck. The Link 3 enhances in-game audio clarity and immersion, making it ideal for both music and gaming scenarios.

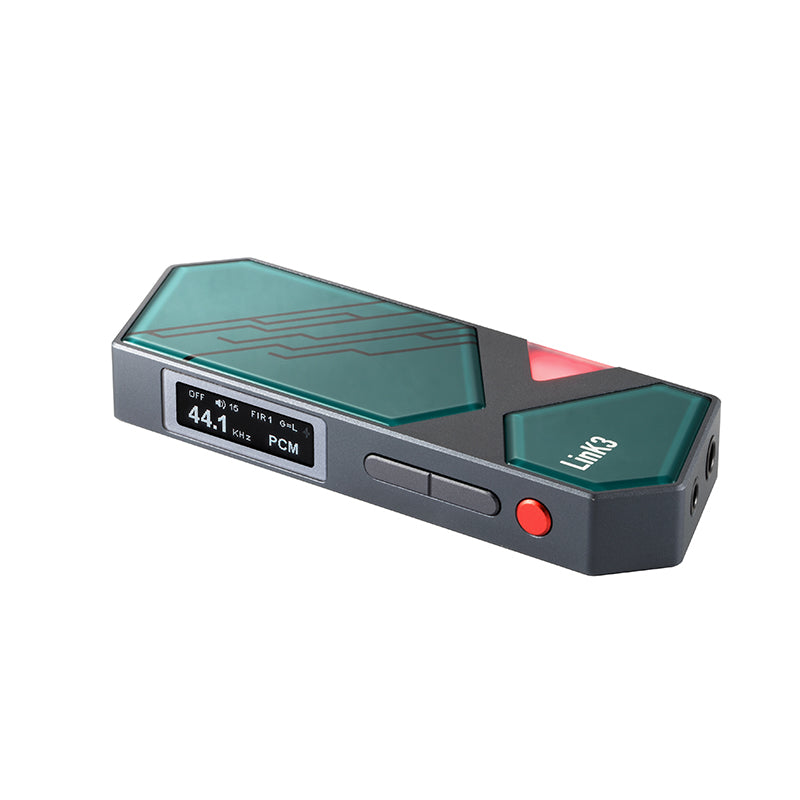

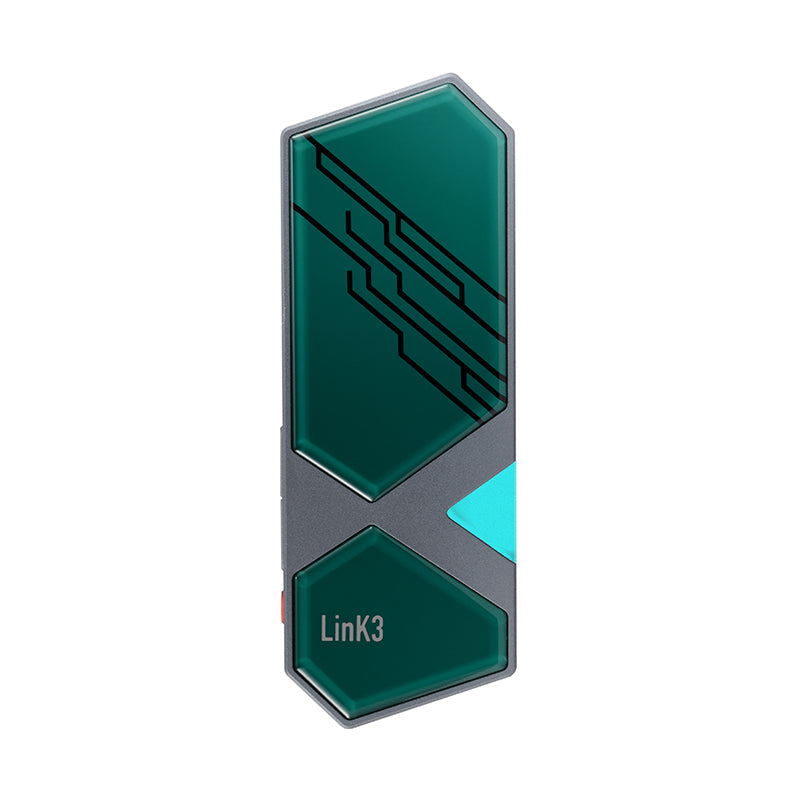

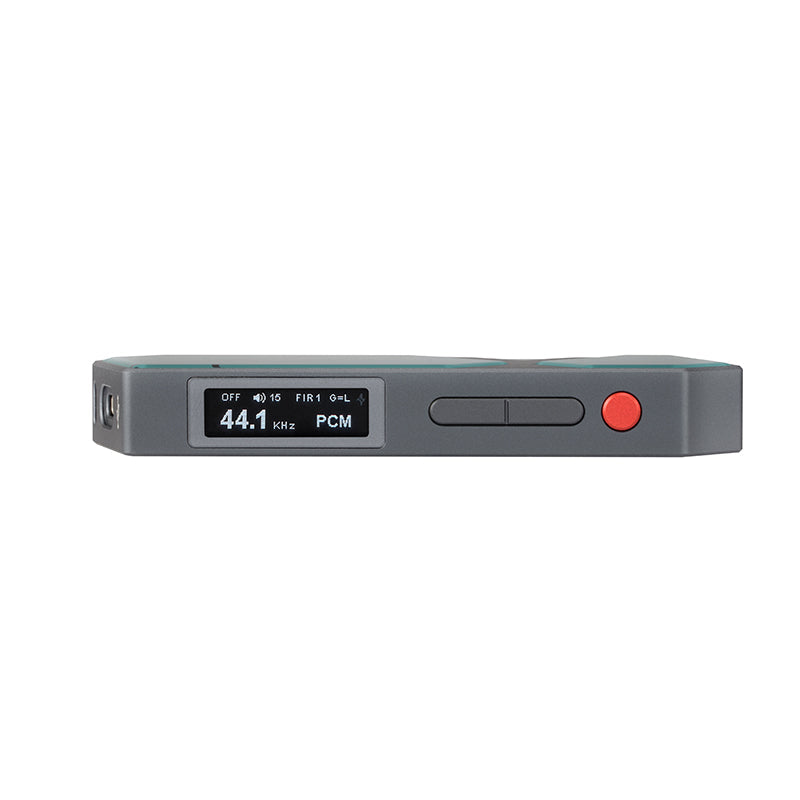

Color Display & LED Indicators

The integrated TFT color display offers a clear and customizable interface, while the multi-color LED indicator provides real-time feedback on sampling rates for quick format recognition.

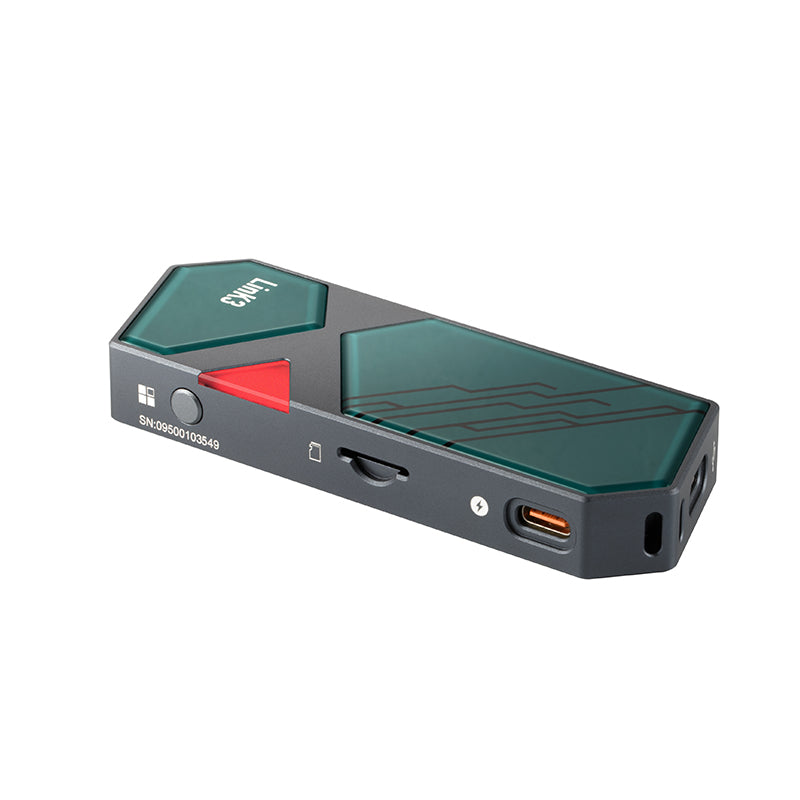

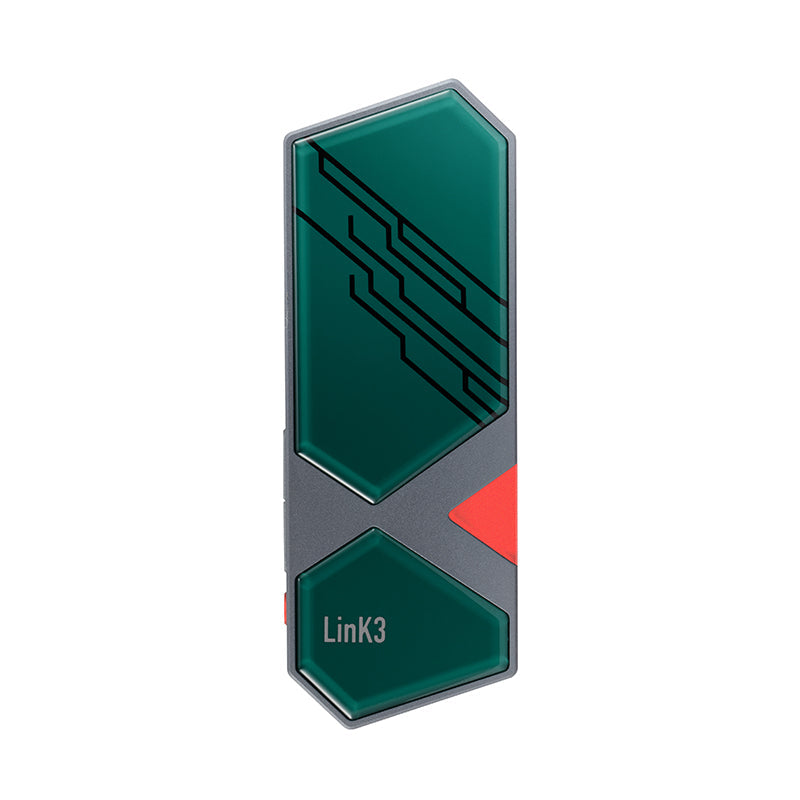

Premium Build & Detachable Cable

Constructed with CNC-machined aluminum alloy and dual-sided glass panels, the Link 3 delivers a sleek and durable design. The detachable USB-C cable with high-purity single-crystal copper ensures reduced interference and cleaner signal transmission.

Battery-Free Design with Fast Charging

The Link 3 adopts a battery-free, low-power design powered directly by your device, eliminating charging concerns. It also supports fast charging, allowing simultaneous music playback and device charging for uninterrupted listening.

Technical Details

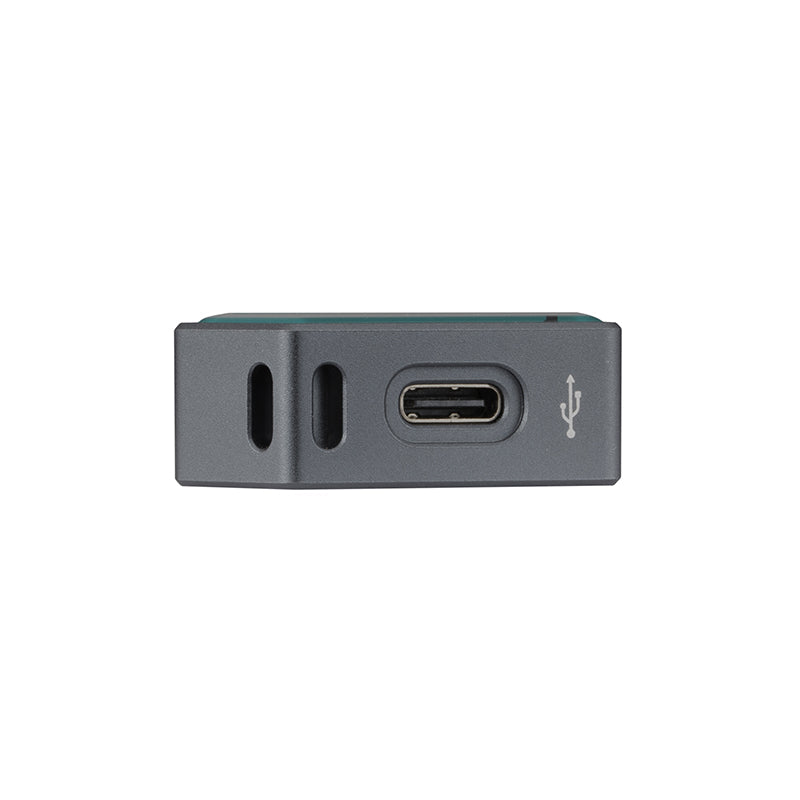

Input Interface
Type-C
Power Consumption
5V / 0.27A
USB System
UAC1.0 / UAC2.0
Headphone Output
3.5mm + 4.4mm
Sampling Rate
PCM 16–32bit / 44.1kHz–768kHz, DSD 1Bit/2.82m–22.57MHz
Super Mode Output
32Ω → 500mW (Unbalanced) / 1000mW (Balanced)
Normal Mode Output
32Ω → 360mW (Unbalanced) / 700mW (Balanced)
THD+N
110dB@1kHz (Unbalanced) / 112dB@1kHz (Balanced)
SNR
≥120dB (Unbalanced) / ≥130dB (Balanced)
Crosstalk
≥75dB (Unbalanced) / ≥123dB (Balanced)
Frequency Response
20Hz – 20kHz (±0.5dB)
Expansion Interface
Micro SD (up to 2TB)
Dimensions
10.7 × 3.8 × 1.5 cm
Weight
70g
Inside the Box
  • 1 x xDuoo Link 3
  • User Manual
