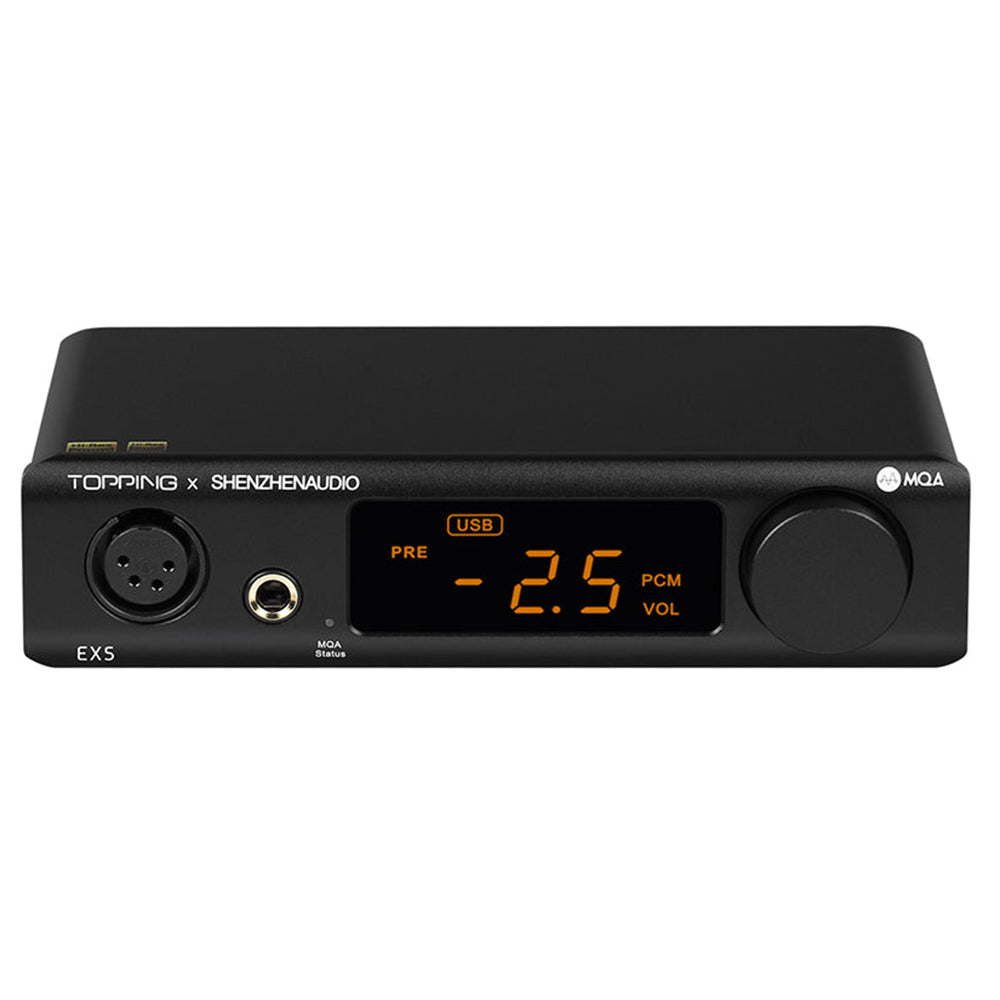

TOPPING EX5

Efficient Full-Balanced HIFI Decoder Headphone Amplifier

    High Performance DAC +AMP 2 in 1
    Bluetooth 5.0 LDAC transmission
    4 Output Mode Options
    Plug and Play
    DAC + HPA Application &Pre amp Application
    High performance DAC For Media Player Mobile Phones and Tablets
Black
Silver
Regulärer Preis €349,99
Verkaufspreis €349,99 Regulärer Preis

High Performance DAC +AMP 2 in 1

EX5 adapts NFCA circuitry, optimizing headphone output performance, and rivaling standalone desktop amps. By featuring 2 x EX9038Q2M decoding, dual-chip parallel structure also brings better performance.

Bluetooth 5.0 LDAC transmission

EX5 HiFi decoder has the certification of Hi-Res Audio Wireless and LDAC/ AAC/ SBC/ APTX LL/ APTX HD protocol. Abandoning the built-in DAC of CSR8675, its digital signal will be connected 2 x ES9038q2M to decode so that we can get better sound quality from Bluetooth.

4 Output Mode Options

EX5 also characterizes three outputs: “Headphone Amp”, “RCA” and “XLR”. It can be available to four output modes:” Headphone amp output only”, “RCA output only”, “XLR output only” and “RCA+ XLR output” to adapt to different usage scenarios. Regardless of the output mode, the volume control is greatly effective.

Plug and Play

EX5 has a wide range of compatibility: Windows 10, MAC, Linux, IOS, Android can be plug and play. It is worth mentioning that EX5 uses 2nd generation 16 core XMOS XU216, meaning USB supports MQA full decode, PCM 32bit 768 kHz and DSD512 Native. Even in the face of higher-end ASIO applications, such as MAC drive-free, Win10 with customized Thesycon ASIO driver, EX5 can do a great job. All in all, PC becomes a professional HIFI source.

DAC + HPA Application &Pre amp Application

The EX5’s output mode “RCA output only”, “XLR output only” and “RCA+XLR output” is quite useful for multiple systems. You can use it to connect 2 different system of power amplifier, active speakers or other devices and adjust the volume on EX5. Because it uses digital volume adjustment so that the left and right channels can be balanced, and there will be no partial sound. Connect your digital audio sources and headphones to EX5, and you can enjoy higher-quality music on the headphones.

High performance DAC For Media Player Mobile Phones and Tablets

Connect the Bluetooth of the phone, tablet or notebook to EX5, or connect the power amplifier, active speakers or headphones to the EX5’s output, and then EX5 will be your Bluetooth Headphone amp / Bluetooth DA.C. You can easily enjoy the high-quality music and convenience brought by Bluetooth 5.0. If your device supports LDAC transmission, you will get even more excellent experience. Whether it is Apple IOS devices, Android devices or media players, if it supports OTG external sound card, they can be connected to the USB input of EX5 to make EX5 be their external high-performance DAC.

Inside the Box

  • 1 x TOPPING EX5
  • User Manual

1 Year Warranty

The TOPPING EX5 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

SPEC
USB IN:44.1kHz-768kHz/16bit-32bit
DSD64-DSD512(Native)
DSD64-DSD256(Dop)
Renderer, MQA Studio, MQA
OPT/ COAX IN:44.1kHz-192kHz/16bit-24bit, DSD64(Dop)
BT IN:AAC/SBC/APTX/APTX LL/APTX HD/LDAC

EX5 LineOut XLR:
THD+N @A-wt : <0.0001%@1kHz
THD+N @No-wt:  <0.0004%@10-20kHz
SNR @A-wt: 125dB@ 1kHz
Frequency Response: 20Hz-20kHz(+0.1dB)
Output Level: 4.3Vrms OdBFS
Noise@A-wt: <2.5uVrms
Channel Crosstalk: -85 @1kHz
Channel Balance: 0.3dB
Output Impedance: 200Ω
Device attributes
Measured: 17.4cm x 13.8cm x 4.5cm
Weight: 750g
Power input: 100-240VAC 50Hz/60Hz
Signal Input: USB/OPT/COAX/BT
Line Out output: RCA/XLR
Headphone Amp Output: 6.35mm/4-PIN-XLR
Package list
EX5*1
Bluetooth antenna*1
Remote control*1
6.35mm to 3.5mm adapter *1
AC cable*1
USB cable*1
User's manual*1
Warranty card*1
