TOPPING EHA5
Amplifier for electrostatic headphones XLR TRS RCA input
- Powerful 700Vrms and 2000Vp-p output swing and 146dB SNR
- 12V Trigger interface for easy on/off switching
- Pass-through function for seamless audio system switching
- Exceptional noise control

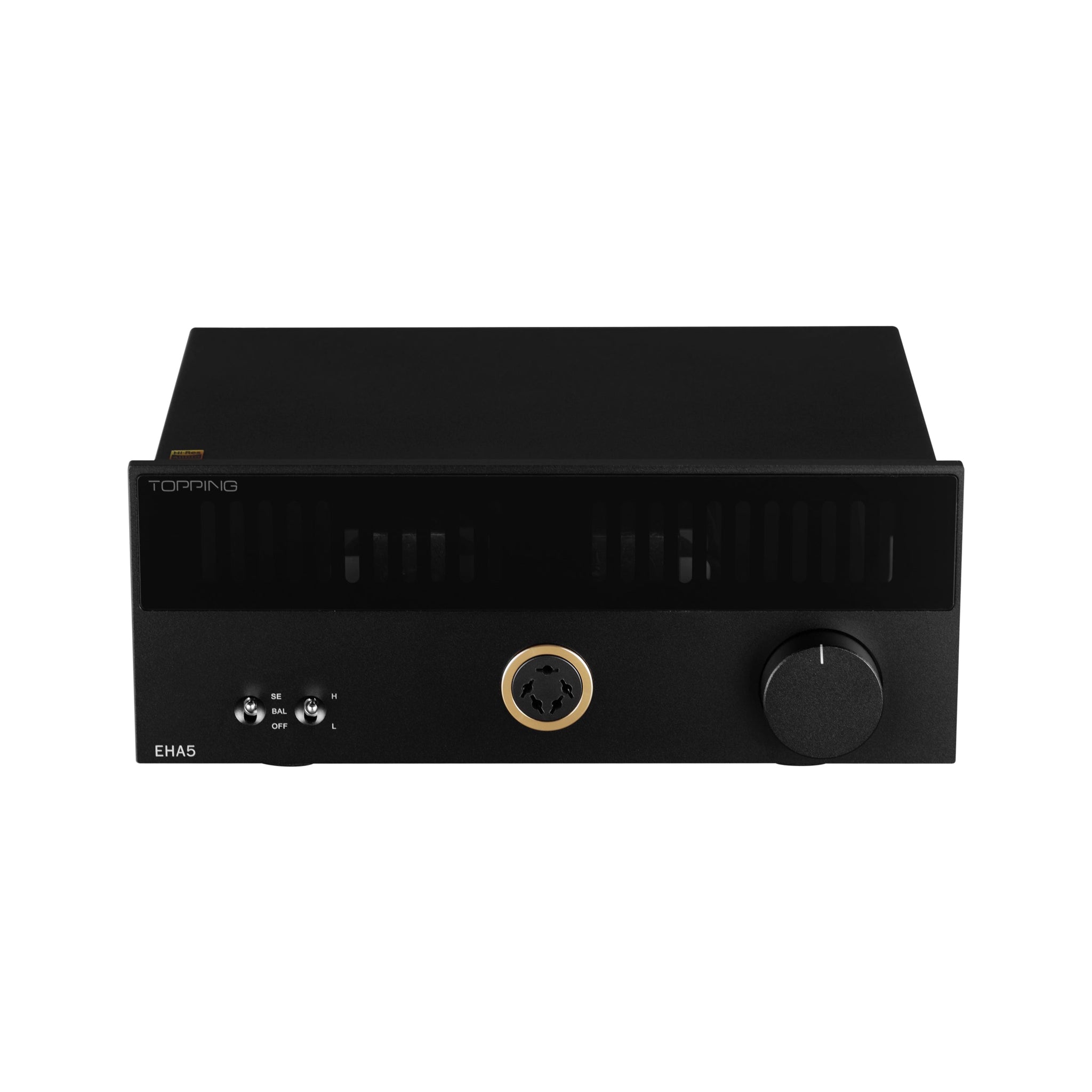

TOPPING EHA5
Unleash The Potential Of Your Electrostatic Headphones
The EHA5 is outstanding in its noise control. With an impressive 146dB SNR and noise levels below 35uVrms at low gain and 80uVrms at high gain, the EHA5, allow you to focus on every intricate detail of your music. Moreover, it boasts a remarkable 700Vrms and 2000Vp-p output swing, ensuring your electrostatic headphones perform at their peak.
Impressive Power Output With 12v Trigger Interface
The EHA5 delivers a remarkable 700Vrms and 2000Vp-p output swing, which packs a lot of power into its body. Featuring a 12V Trigger input interface, the EHA5 can easily connect with other devices for seamless on/off switching. Say goodbye to the hassle of manually powering devices on and off one by one.
Pass-through Function
The EHA5 includes a pass-through function, allowing the input signal to directly reach the corresponding balanced and single-ended outputs when the front panel is switched off. This feature is perfect for users who want to easily switch between electrostatic headphones and other audio systems when their DAC has a preamp function.
Technical Details
THD+N @1kHz (A-wt)
BAL: <0.0009%
THD+N @20kBW(No-wt)
BAL: <0.05%
SNR @ MAX OUT
BAL: 146dB
Dynamic range
BAL: 146dB
Frequency response
Noise (A-wt)
BAL: <35uVrms low gain, <80uVrms high gain
Channel crosstalk
Input sensitivity
BAL: 20Vrms low gain, 3.9Vrms high gain
Gain
BAL: 30.9dB low gain, 44.9dB high gain
Channel balance
Output level
Bias voltage
Shipped weight
Dimensions
