Dual CS43198 DACs for Exceptional Clarity

class="MsoNormal">The TANCHJIM Space Pro employs dual CS43198 DAC chips, paired with independent high-power amplifiers for each channel. Its optimized peripheral circuit design and fully balanced four-channel decoding architecture ensure efficient amplification while minimizing channel interference, resulting in a purer and more detailed soundstage.

High Output Power for Versatile Headphone Compatibility

Capable of delivering up to 618mW of output power at 26Ω, the Space Pro provides ample power reserves to easily drive high-impedance in-ear monitors (IEMs) and over-ear headphones. It maintains precise control, rich detail, and stable performance even during high-dynamic passages.

Exceptional Dynamic Range and High Performance

Leveraging a high-performance circuit design and premium component selection, the SPACE PRO achieves an impressive 131dB dynamic range (DNR) and 131dB signal-to-noise ratio (SNR) in balanced output mode. The ultra-low noise floor enhances positional accuracy, making it ideal for video playback and immersive gaming experiences.

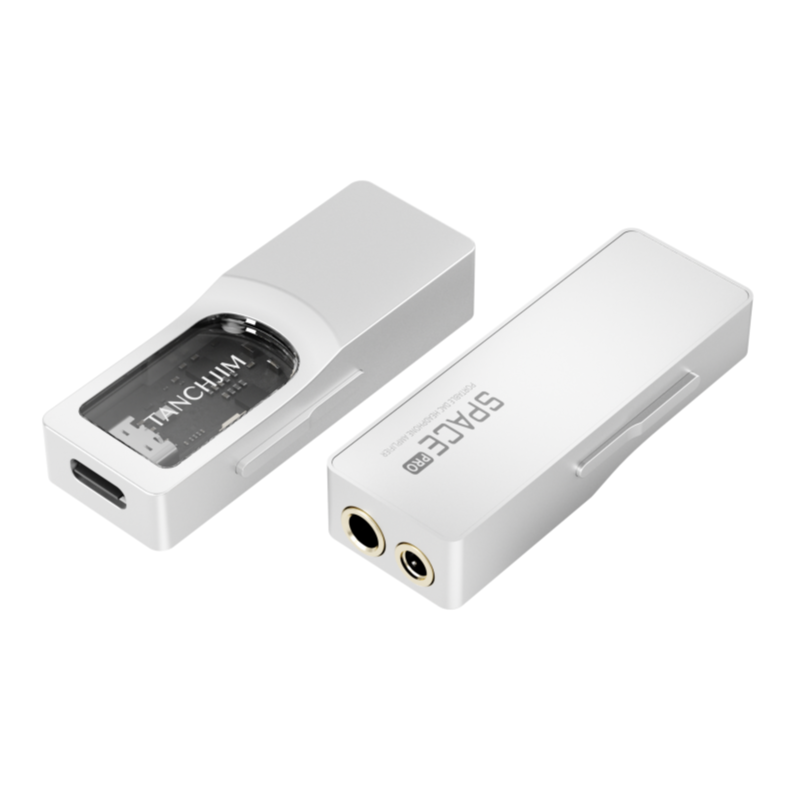

Flexible Dual Headphone Outputs

Featuring both 3.5mm single-ended and 4.4mm balanced outputs, the Space Pro supports simultaneous dual-port connections. The 3.5mm jack is CTIA-standard compliant, enabling microphone input for calls, gaming voice chat, and everyday communication.

Switchable DAC Output Stage Modes

The SPACE PRO offers selectable output stage modes between Class AB and Class H. Class AB mode, the default setting, is renowned for its linearity and stability, making it a staple in high-fidelity audio. Class H mode provides higher operational efficiency. (Note: Class AB mode has a quiescent current approximately 6.5mA higher than Class H mode.)

Game Audio Optimization System

Building on the SPACE PRO's powerful chipset, TANCHJIM has integrated a dedicated "Tactical Perception" feature. This allows users to fine-tune in-game audio elements such as gunshots, footsteps, and impact sounds with customizable parameters, designed to enhance sound layering and spatial awareness for a competitive edge.

Technical Details

Brand
TANCHJIM
Model
SPACE PRO Portable DAC/Headphone Amplifier
Headphone Output
3.5mm Single-Ended, 4.4mm Balanced
Input
USB Type-C (Detachable Cable)
Frequency Response
8Hz-80kHz(-0.5dB)
THD+N
0.000206%(A-weighted)
Noise Floor
≤1.14uVrms(A-weighted)
Dynamic Range
131dB(A-weighted)
Signal to Noise Ratio
131dB(A-weighted)
SINAD
113.7dB(A-weighted)
Inside the Box
  • Space Pro Unit x 1
  • USB Type‑C to Type‑C Cable x 1
  • USB Type‑C to USB‑A Adapter x 1
  • User Manual x 1
