Precision Sound Meets Aesthetic Design

The SMSL DS300 is an innovative audio device that blends cutting-edge technology with modern aesthetics, offering an exceptional listening experience. Equipped with a built-in low-noise switching power supply and multiple analog circuit low-noise power supplies, the DS300 ensures superior sound quality. Its extensive input and output ports, along with advanced features like customizable headphone amplifier gain settings and high-resolution audio support, make it the ideal choice for audiophiles seeking both performance and style.

Breathing Lights That Dance to Your Music

The DS300 features unique, customizable lighting effects that pulse and change with your music, adding a dynamic visual element to your listening experience.

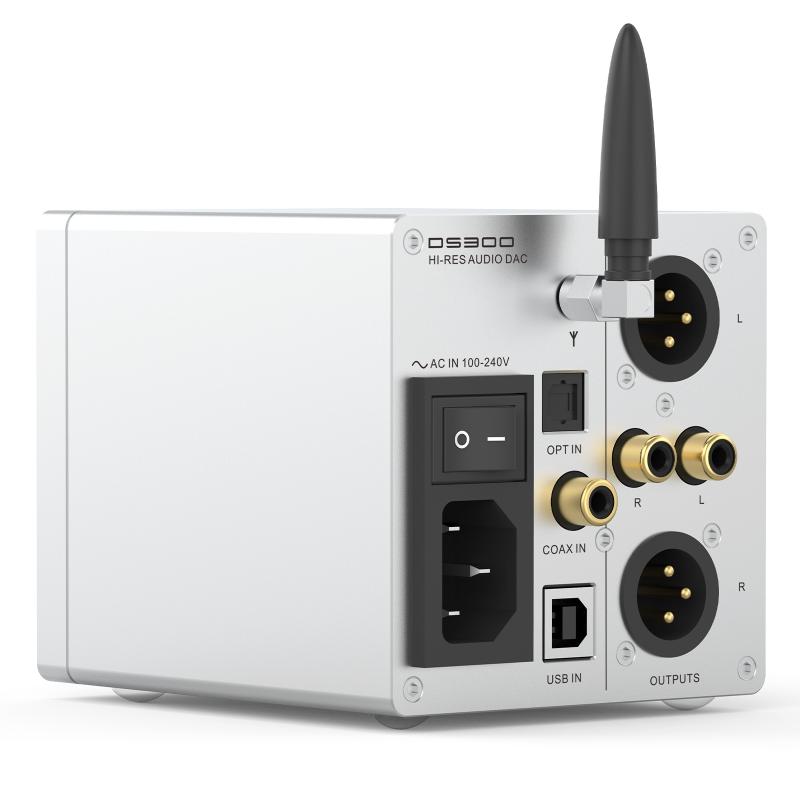

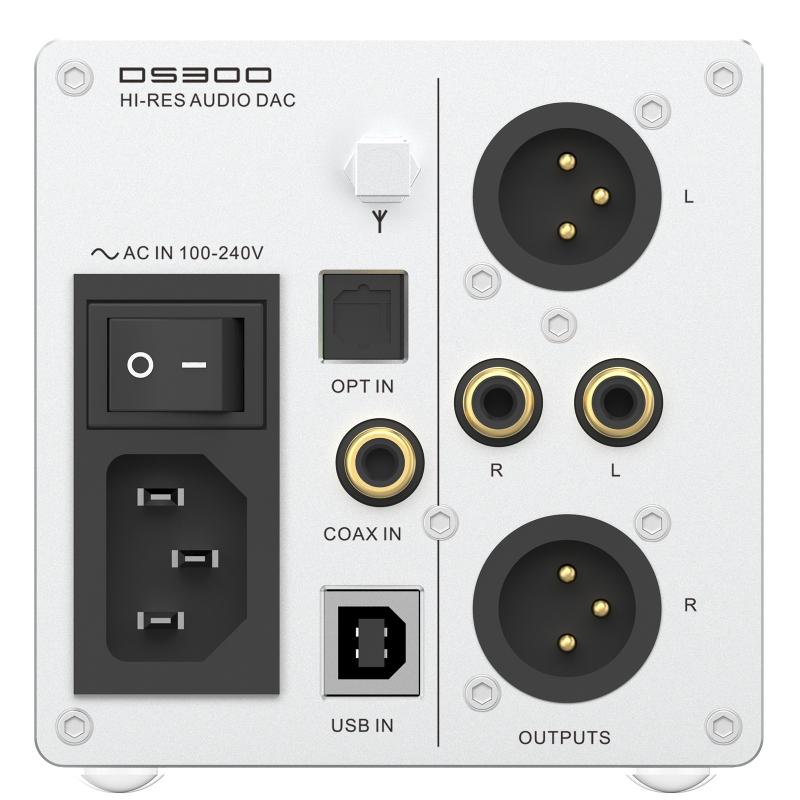

Comprehensive Input/Output Ports

Supports a wide range of input and output connections, including USB, optical, coaxial, Bluetooth, XLR, and RCA, allowing you to seamlessly integrate it into your existing setup.

Superior Sound Quality with Audio-Grade Components

Crafted with high-quality components and a precision audio clock, the DS300 ensures clean, clear, and detailed sound across all frequencies. Low-noise power supplies and high-grade analog circuitry further elevate its performance.

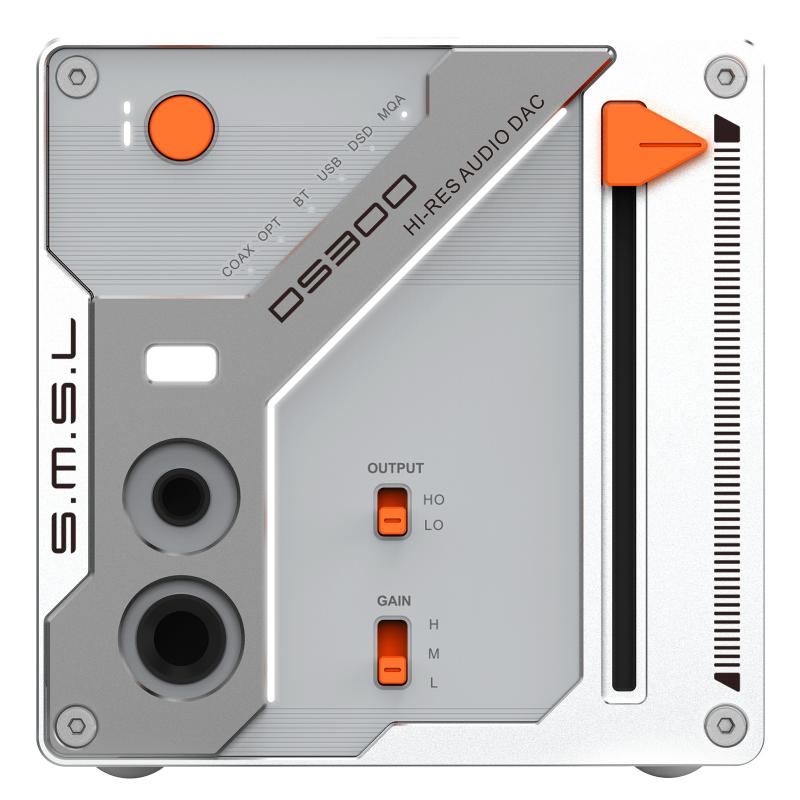

Customizable Headphone Amplifier Gain Settings

With three adjustable gain settings (high, medium, low), the DS300 adapts to a variety of headphones and listening preferences. Whether you're using sensitive IEMs or full-size headphones, you can fine-tune the gain for optimal sound.

Sliding Volume Controller

Adjust every nuance with a gentle slide of your fingertip. From delicate vocals to powerful, thundering lows, experience smooth transitions that create a fully immersive soundscape tailored just for you.

MQA Support

The DS300 supports MQA (Master Quality Authenticated) CD, allowing you to experience studio-quality sound with high-resolution audio and authenticated signatures.

Technical Details

Input
USB / Optical / Coaxial / Bluetooth / XLR / RCA
Output
6.35mm Headphone / 4.4mm Headphone / XLR / RCA
THD+N
XLR 0.00007% (-122.5dB) / RCA 0.0001% (-120dB) / Headphone Output 0.00018% (-114dB)
Output Level
XLR 5Vrms / RCA 2.5Vrms
Headphone Amplifier Power
16Ω 3W×2 / 32Ω 1.5W×2 / 150Ω 350mW×2 / 300Ω 170mW×2 / 600Ω 85mW
USB Transmission
USB 2.0 Asynchronous
Bluetooth Version
5.1
USB Compatibility
Windows 7–11 (Driver Required), macOS, Linux, iOS, Android
Bit Depth
USB 1–32bit, Optical/Coaxial 16–24bit
Sample Rate
USB PCM 44.1–768kHz / DSD 2.8224–22.5792MHz, Optical/Coaxial PCM 44.1–192kHz / DSD64 (DoP)
Power Consumption
<25W
Standby Power
<0.5W
Dimensions
85 × 88.5 × 114.2 mm (W × H × D)
Weight
639.5g (1.41 lbs)
Dynamic Range / SNR
XLR 129dB / RCA 126dB
Headphone Output
125dB
Inside the Box
  • 1 x SMSL DS300
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL DS300 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
