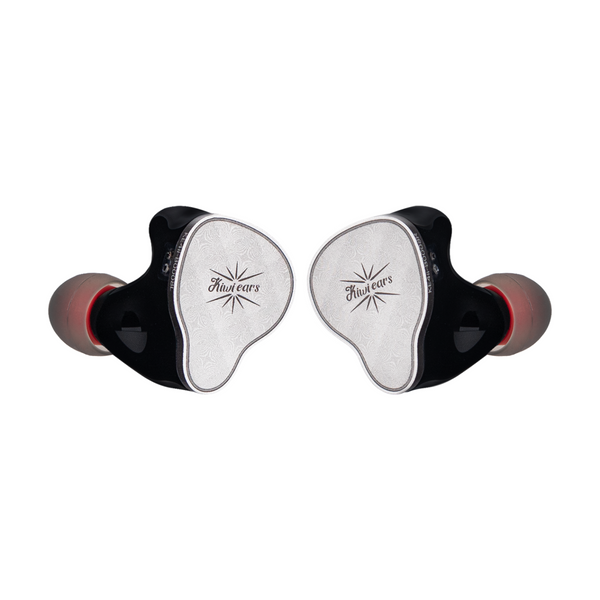

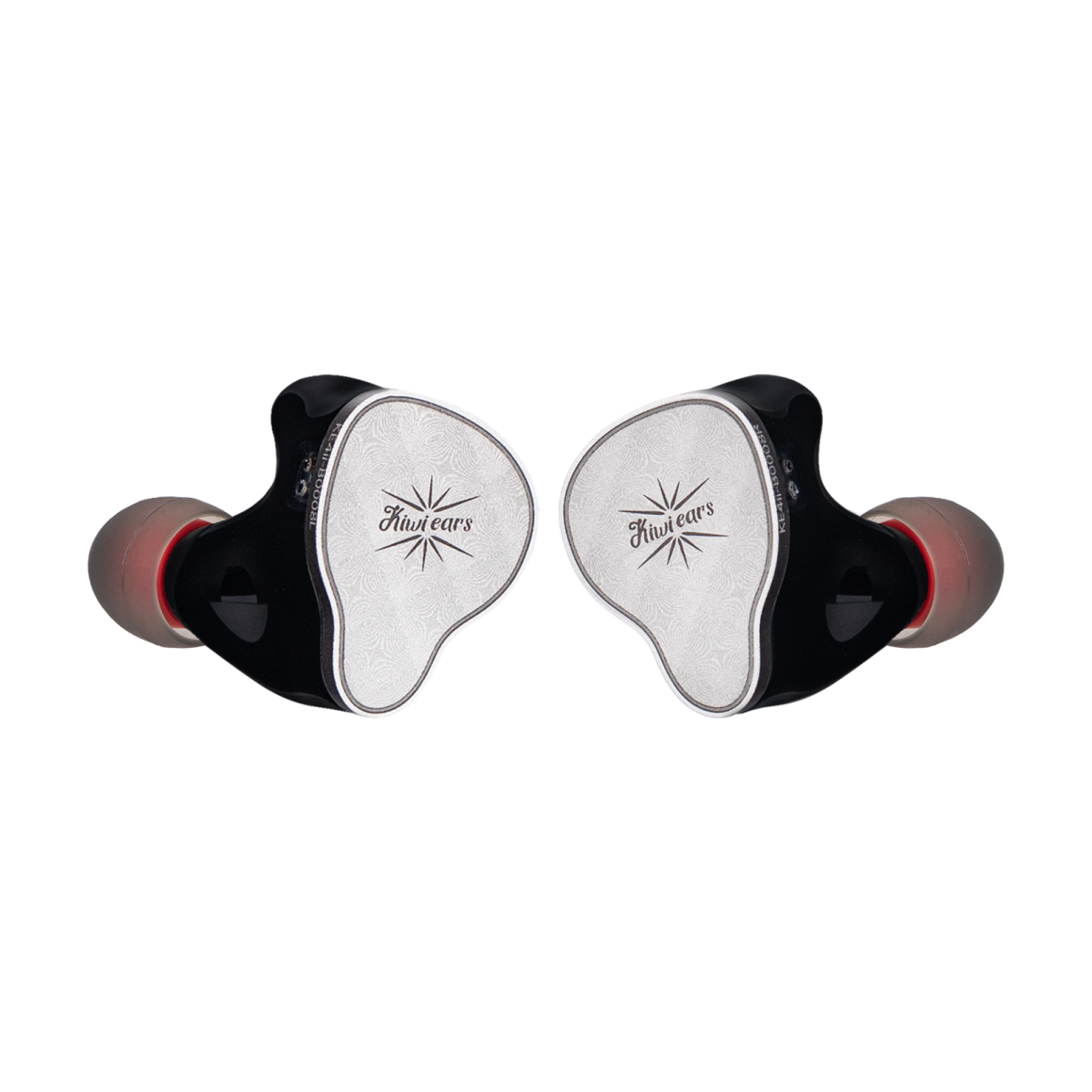

Kiwi Ears KE4 II
Kiwi Ears KE4 II
The original Kiwi Ears KE4 established a strong reputation with its balanced tuning philosophy and versatile sound performance. Following this foundation, the KE4 II introduces a completely redesigned driver architecture and refined acoustic tuning. Featuring a new 1 planar + 2 balanced armature + 1 dynamic driver hybrid configuration, the KE4 II improves resolution, layering, and tonal balance while maintaining a natural and cohesive listening experience.
Redesigned 1 Planar + 2BA + 1DD Hybrid Architecture: The KE4 II features a redesigned 1 planar + 2BA + 1DD hybrid configuration, with each driver optimized for different frequency ranges to achieve improved resolution and balanced sound reproduction.
Balanced Sound for Various Genres: With its refined modern tuning, the KE4 II delivers controlled bass, natural mids, and smooth treble, making it suitable for a wide range of musical styles.
Handcrafted Medical-Grade Resin Shell: Each KE4 II shell is handcrafted from medical-grade resin, finished and polished by hand, with individually decorated faceplates for a unique appearance.
Detachable 0.78mm 2Pin Cable: The KE4 II comes with a detachable 0.78mm 2Pin cable system, allowing users to replace cables and extend the long-term usability of the IEM.
A Legend, Reimagined
The original Kiwi Ears KE4 launched with global acclaim, setting the benchmark for a new era of modern IEM tuning. Following this legacy, the KE4 II has been completely redesigned with a more efficient driver architecture and a refined benchmark tuning.
New Driver Architecture
The KE4 II has been engineered from the ground up, utilizing a completely new three driver-type configuration that achieves greater resolution and midrange texture. The original KE4 was a 2DD+2BA Hybrid configuration, but by upgrading to a more powerful 1DD woofer, an additional driver could be added to enhance the fundamental frequencies - all while keeping the 4 driver framework. Compared to the original KE4, the new driver configuration optimizes driver load, particularly in the mids and trebles, enhancing technical performance and timbre.
Newly Developed Drivers
A single 10mm biocellulose dynamic driver subwoofer delivers precision sub-bass and bass impact rich with textural rumble. A custom-made dual balanced armature drivers focus on layered and articulate mids and lower-trebles. An innovative custom microplanar ultrasonic tweeter brings out airy micro-details. Compared to balanced armature tweeters, the microplanar ultrasonic tweeter is able to significantly output greater +20kHz treble extension at lower distortion. Importantly, the timbre of microplanar drivers are smoother and more natural sounding compared to balanced armature drivers, which are often described as “plasticky”, or electrostatic drivers, which can feel too metallic.
A Refined Take on Modern Sound Signature
The KE4 II was tuned following a new tonal ideology. Based on modern target preference curvatures, The KE4 II refines the sound signature to balance neutrality with musicality. The lows feature a dedicated 8dB sub-bass shelf that cuts off precisely at 200Hz, providing enough bass rumble for all genres, while keeping the midrange free from bloating or muddyness. The midrange is completely flat from 200Hz to 1kHz, allowing a studio monitor presentation of vocals and instruments. This allows the music to be heard as it was recorded, without any artificial colorations to the sound. The treble peaks exactly at 3kHz, following the perceived hearing compensation for the ear anatomy. The ultra-treble has been tamed to allow a more natural and fatigue-free listening while maintaining a spacious soundstage thanks to the fast transients of the microplanar driver.
Optimal Sound for Every Genre
The KE4 II sits at the tonal balance that is perfect for every musical genre. Whether it is pop, rock, hip-hop, or classical music, the secret to the KE4 II’s performance lies in its sound signature. Each musical genre is presented as it was intended, allowing the KE4 II to sound incredible, no matter what song is playing. Moreover, the KE4 II is perfect for all usage scenarios, including stage performance, sound engineering, musical enjoyment, and gaming.

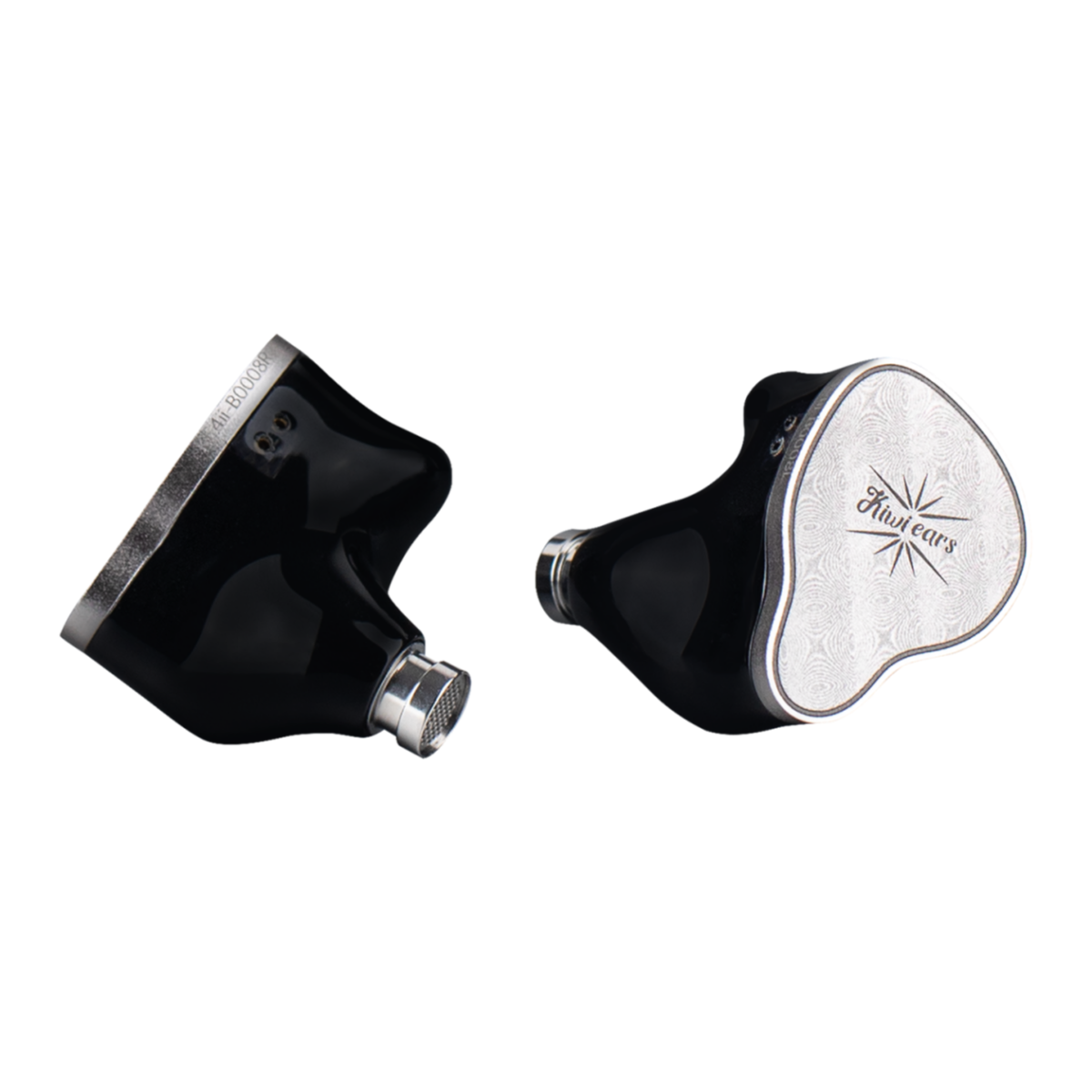

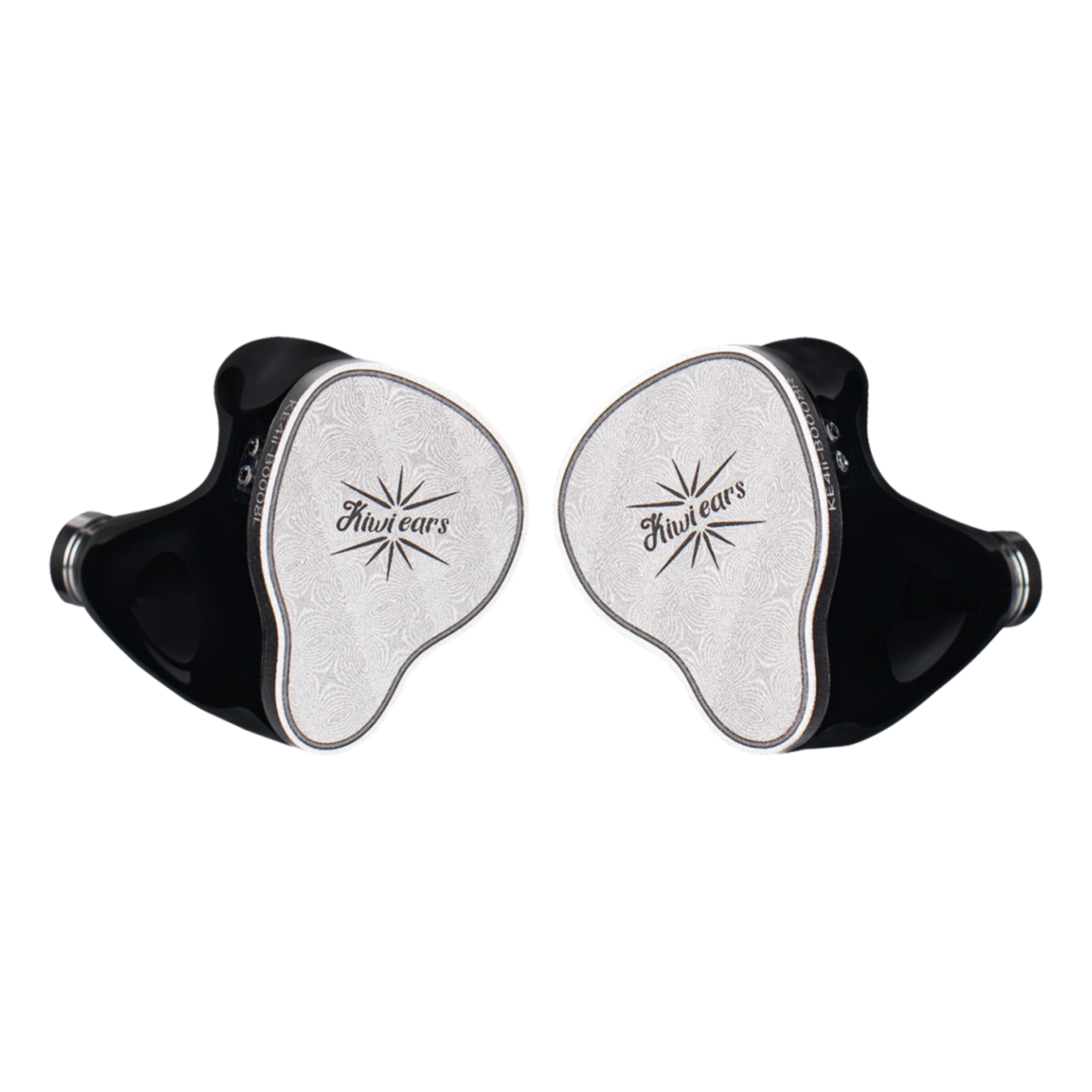

Crafted by Hand
Each KE4 II unit is handcrafted. The shells are made from medical-grade resin, finished, and polished by hand, while the faceplates are individually decorated. Each driver unit is measured and paired to ensure channel balance and optimal performance prior to assembly. Every component of the KE4 II is hand-assembled, and each completed unit is measured again to ensure quality controls. The KE4 II is designed and manufactured to be a dependable tool for all scenarios.

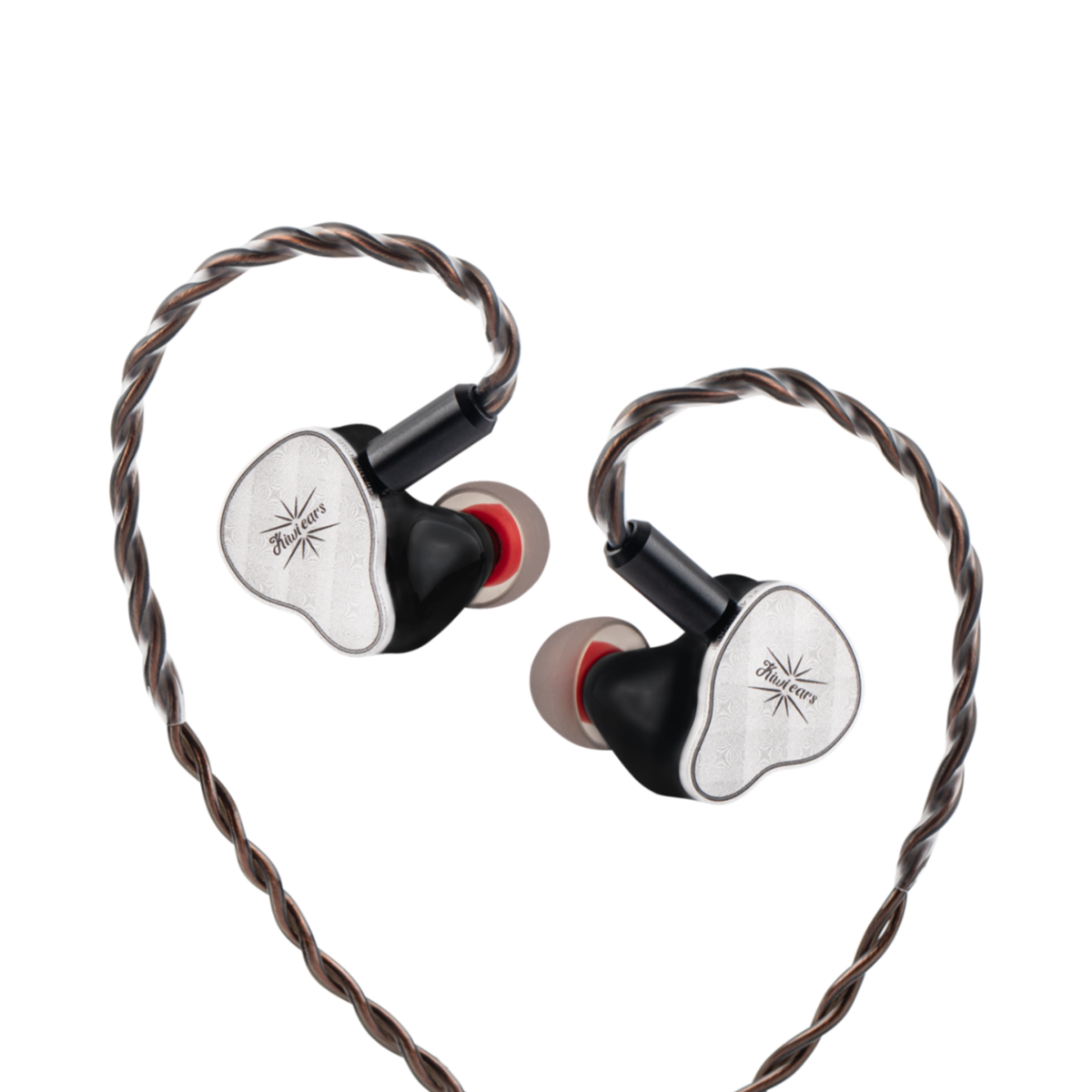

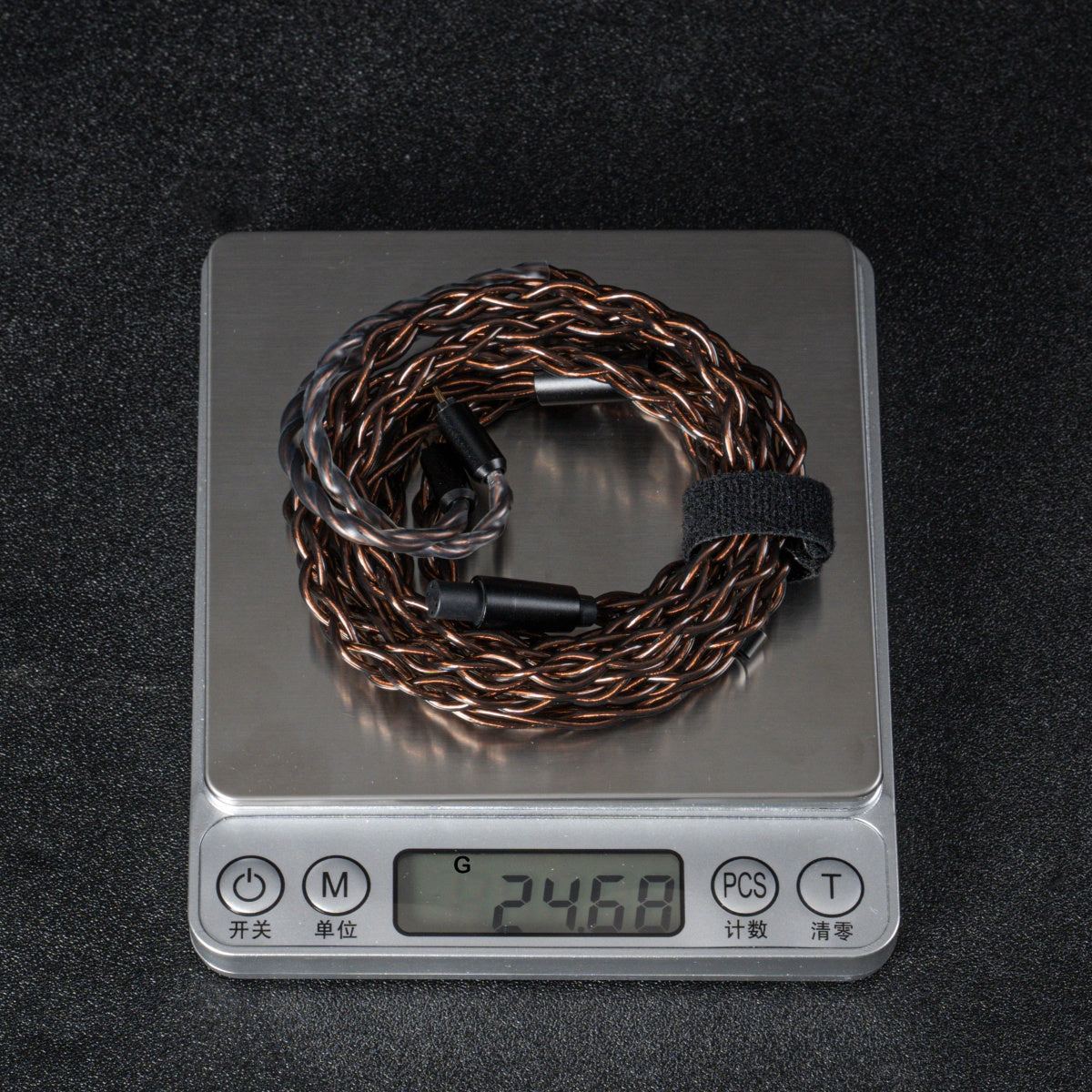

Custom Detachable Cable
The Kiwi Ears KE4 II comes standard with a detachable 2pin 0.78mm cable system. The detachable cable system allows users to mix and match their cables to customize their listening experience, while simultaneously extending the longevity of the IEM.
Technical Details
Driver Configuration
1 planar driver + 2 balanced armature drivers + 1 dynamic driver
Crossover / Acoustic Design
3-way crossover with 3 acoustic tubes
Frequency Allocation
1 ultra-high-frequency driver, 2 mid-high-frequency drivers and 1 low-frequency driver
Impedance
13Ω @ 1kHz ±1Ω
Sensitivity
104dB @ 1kHz ±1dB
Frequency Response
20Hz–20kHz

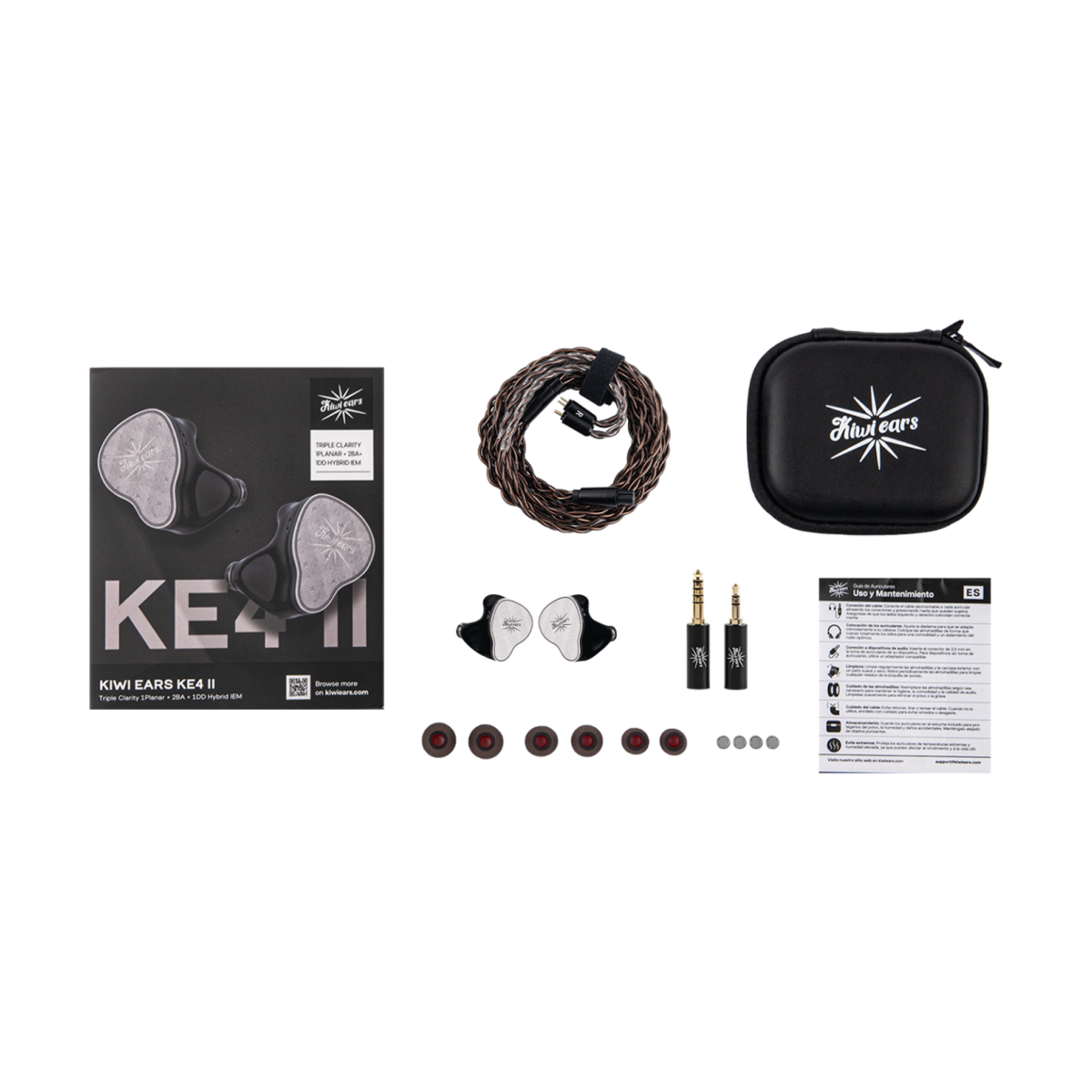

- Kiwi Ears KE4 II IEMs × 1 Pair
- Detachable Cable × 1
- Silicone Ear Tips (S,M,L) × 3 Pairs
- 3.5mm Plug × 1
- 4.4mm Plug × 1
- Nozzle Filters × 4
- User Manual & Warranty Card × 1
