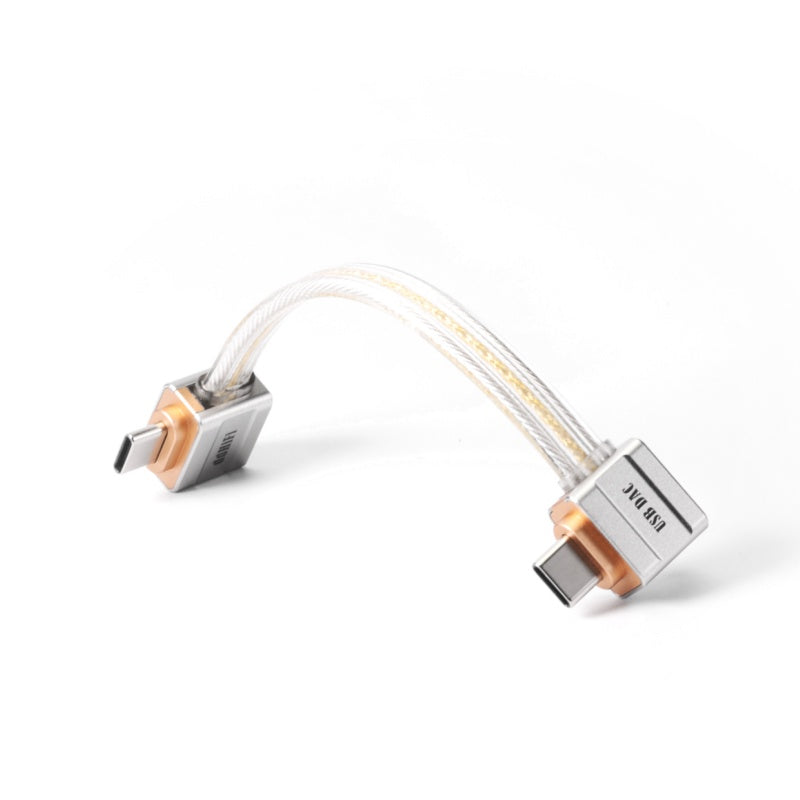

Five-Wire Parallel Conductor Structure

TC19LL uses a five-wire parallel design with CC signal conductors in the center and power lines on the sides. Pure silver data lines consist of two independently insulated twisted pairs wrapped in gold-plated shielding, providing excellent bending performance without compromising flexibility.

Directional USB-C Connection

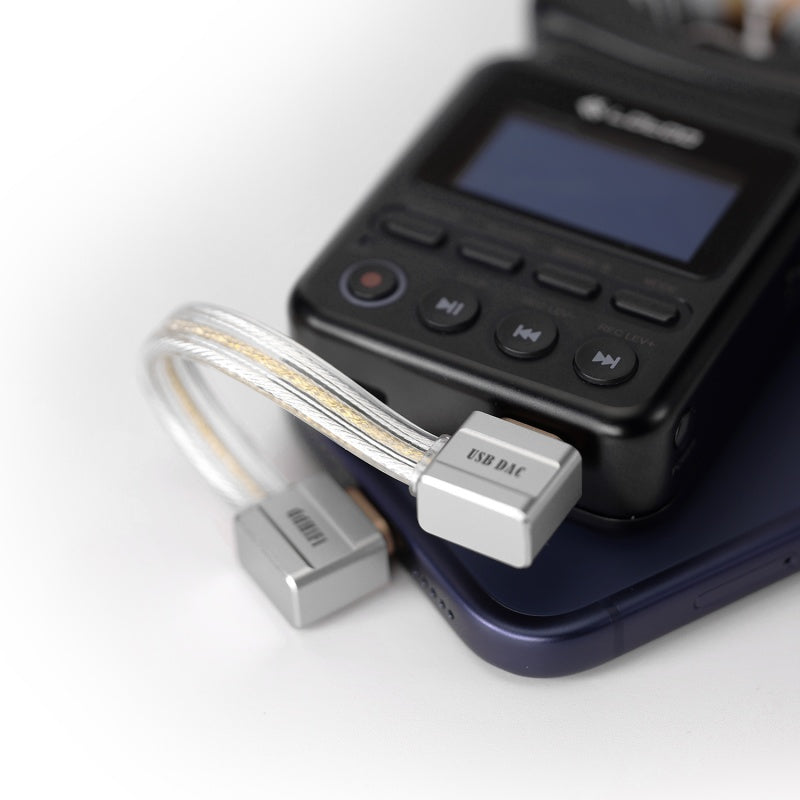

When outputting USB audio signals, the system identifies an OTG device by detecting the resistor inside the USB-C plug. Correct plug orientation ensures proper signal flow when connecting USB DACs or players, optimizing playback accuracy.

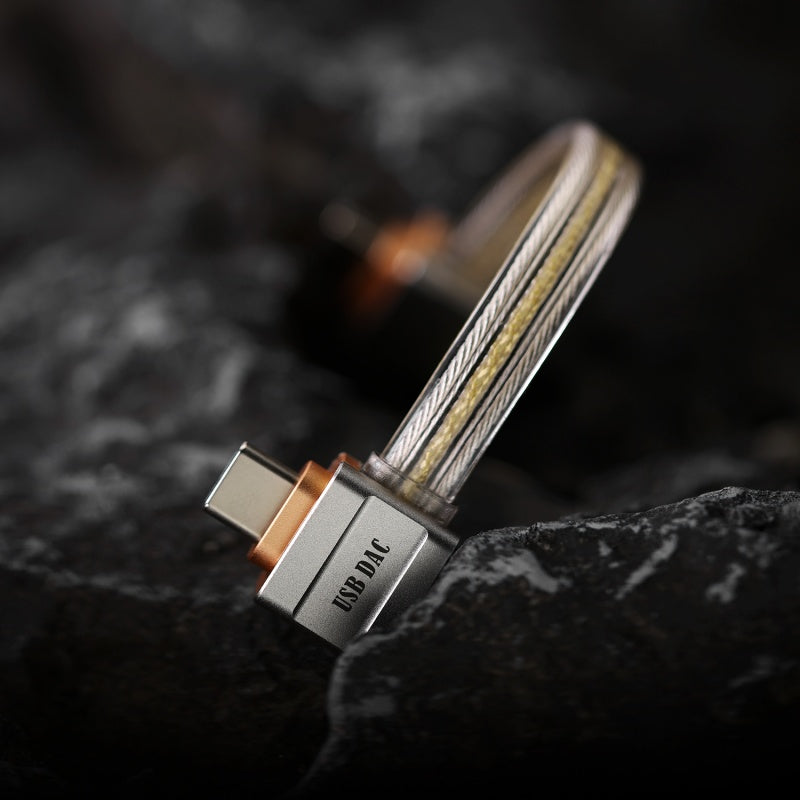

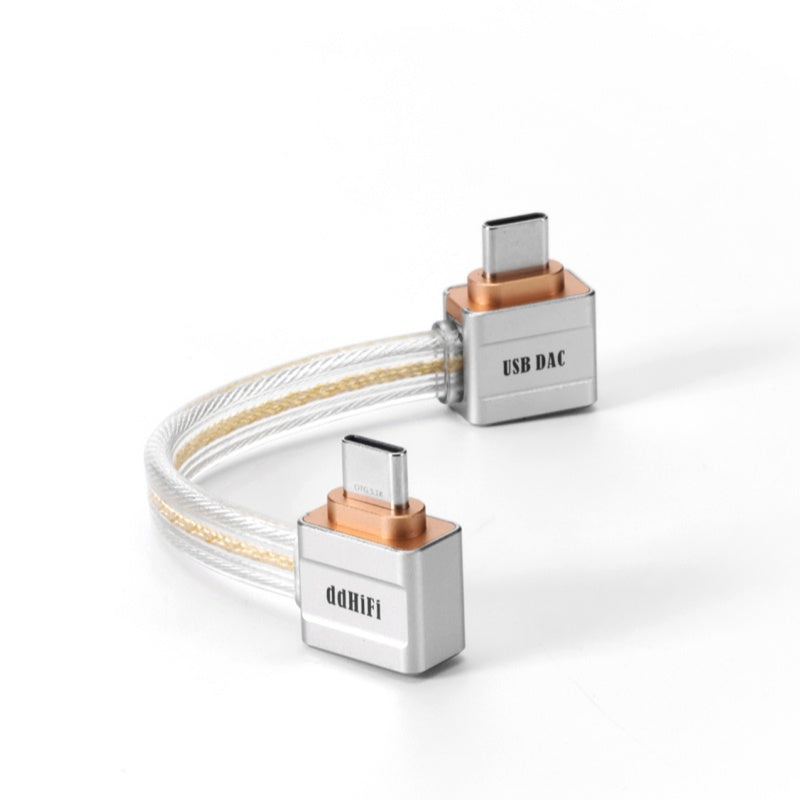

CNC Full-Metal Shielded Plug

The plug housing is crafted from aviation-grade aluminum via CNC machining. The three-piece assembly fully shields the soldered area, and the redesigned USB-C PCB reduces the overall profile compared with TC09L plugs, ensuring stable, interference-free signal transmission.

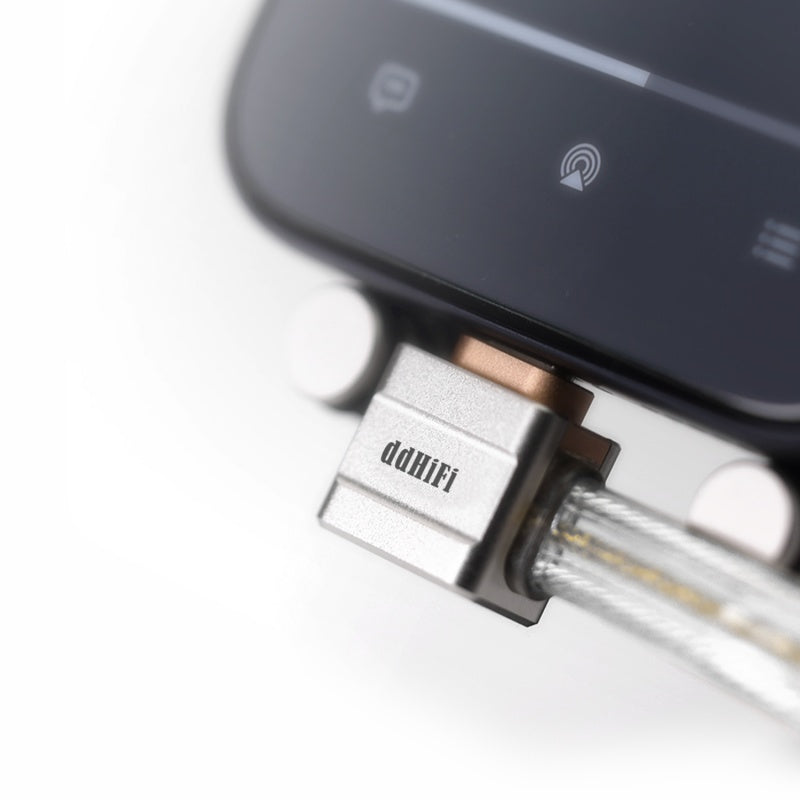

Stepped Non-Slip Ergonomic Design

The plug features a textured stepped structure that prevents slipping when pinched, making plugging and unplugging easier and smoother.

Technical Details

Cable Construction
Flat parallel 5-wire design
Insulation Material
SoftFlex PVC
Conductor Gauge
25.6AWG (D+), 25.6AWG (D-)
Conductor Material
High-purity 4N monocry stalline silver
CC1 or CC2 Material
Tin-plated copper
Conductor Gauge
21.3AWG (V+), 21.3AWG (G)
Conductor Material
Silver-plated 5N long-grain copper
Length
8.5~9cm
Weight
Approx. 13g
Inside the Box
  • 1 x DDHIFI TC19LL
  • User Manual
