Wireless Convenience with HiFi Sound Quality

Add Bluetooth capability to legacy DACs, amplifiers and speakers for effortless Bluetooth playback. Optimized radio performance eliminates the common drawbacks of traditional radios: unstable signals and poor sound quality.

Fully Upgraded Bluetooth Performance

Powered by Qualcomm QCC3084 Bluetooth 6.0 chip, supporting LDAC, aptX Lossless, aptX Adaptive, aptX HD and LC3 high-resolution audio codecs. Rich codec options bring you immersive high-def Bluetooth audio for a revitalized auditory experience.

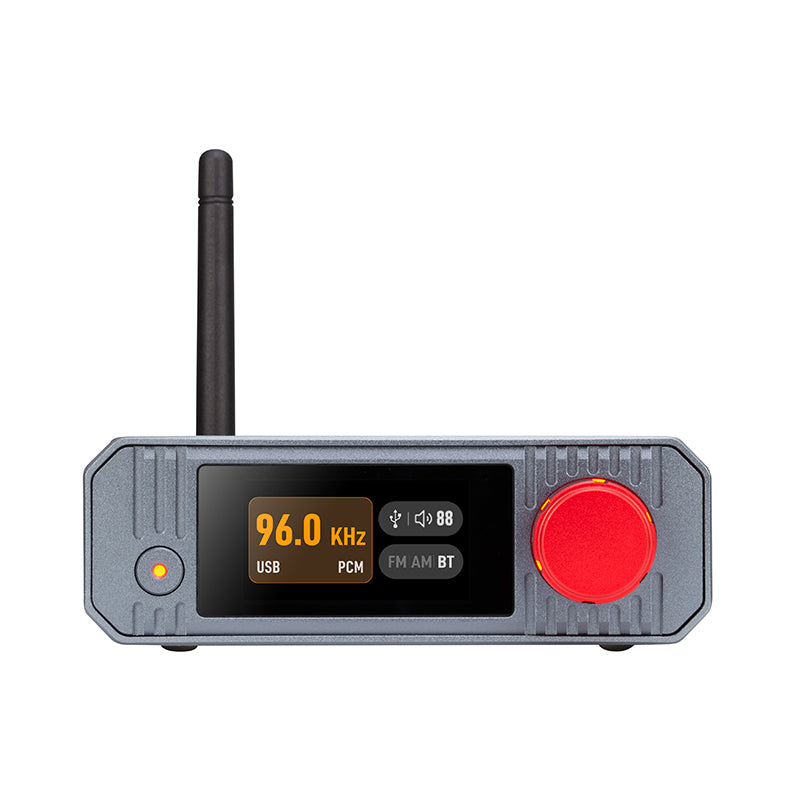

USB Decoding, Plug-and-Play

Works as a USB PC sound card, driver-free. Connect to your computer for instant audio decoding and playback.

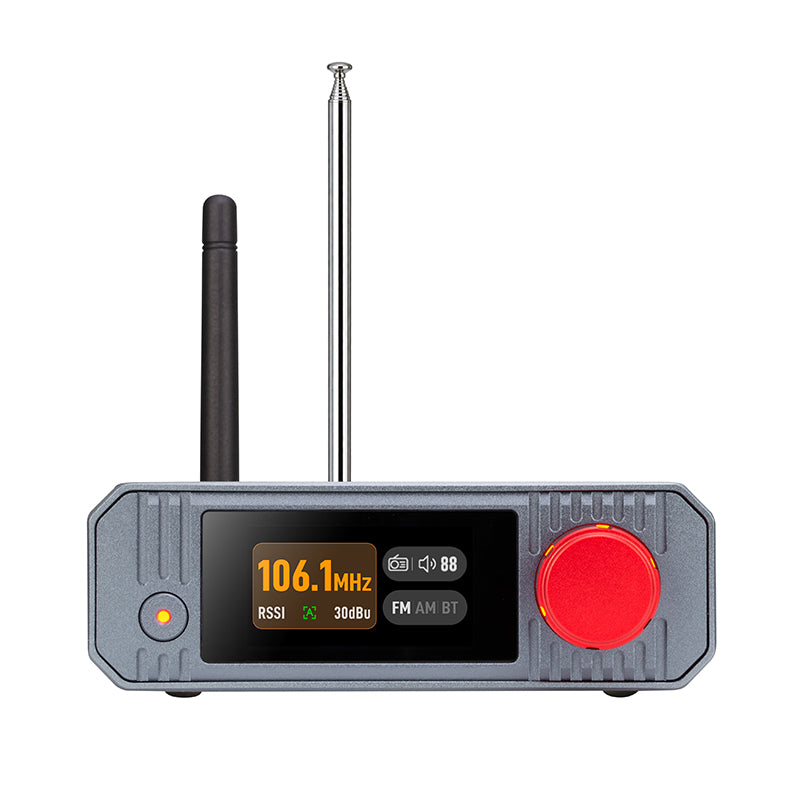

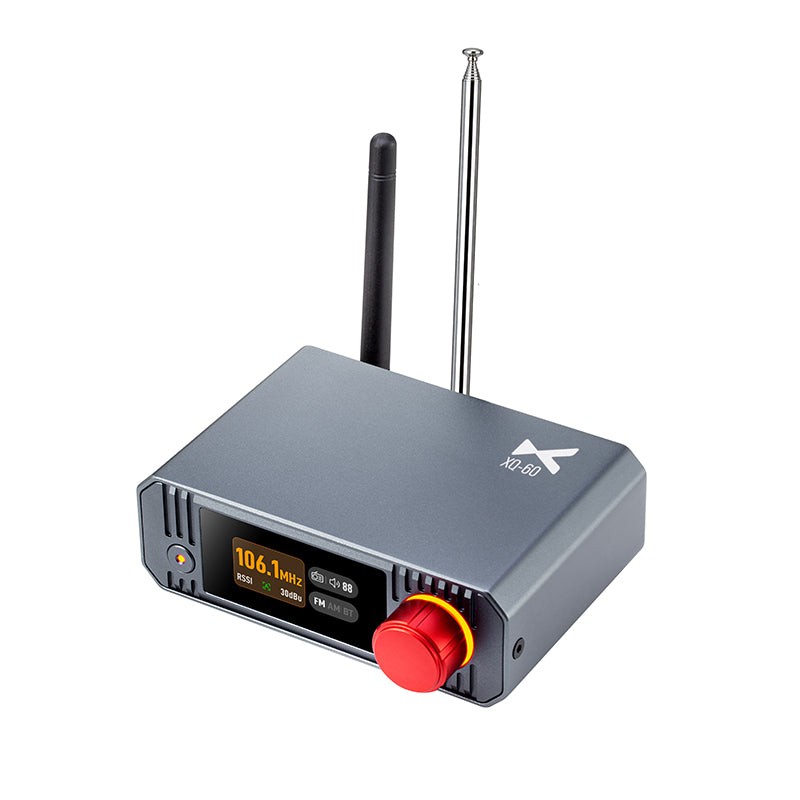

Full-Band AM/FM Radio, HiFi-Grade Radio Reception

Featuring the professional radio chip paired with DSP digital demodulation technology, it delivers stable signal reception and clear, transparent sound. I²S digital signal is output for decoding by a dedicated DAC chip to achieve superior playback quality. Built-in radio preset function allows you to save your favorite stations for one-touch quick recall and playback.

Custom AM/FM Parameters for Worldwide Use

Configure AM/FM parameters freely to match regional broadcast standards across the globe. Enjoy clear radio reception in any country.

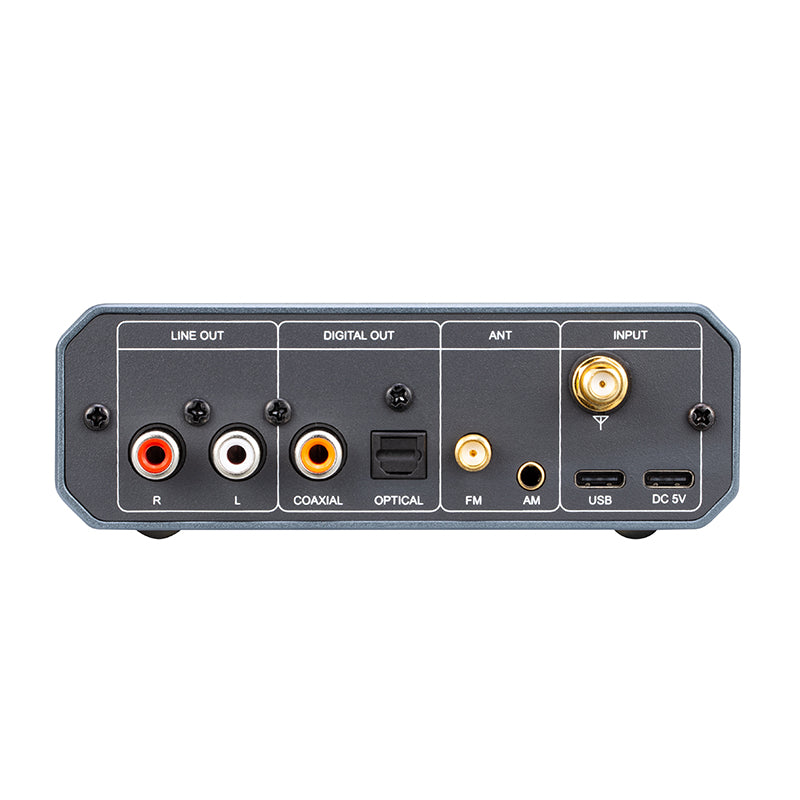

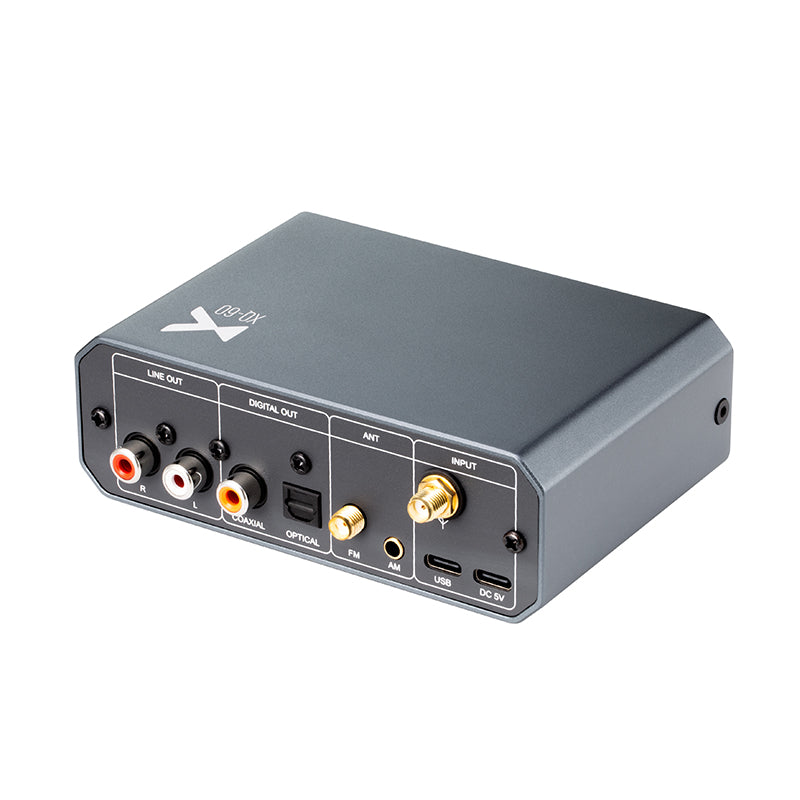

Versatile Output Interfaces for Great Expandability

Coaxial / Optical digital outputs for compatibility with professional DACs; Line-Out analog output for connection to amplifiers and active speakers.

High-Performance Digital Signal Conversion

High-grade CS8406 digital transceiver chip delivers low-jitter, clean digital output for enhanced HiFi resolution.

High-Quality DAC Chip

Equipped with premium CS43198 DAC chip, it delivers ultra-high SNR and extremely low distortion. It accurately reproduces audio details and renders pure, transparent high-fidelity listening experience.

User-Friendly Interface for Simple & Intuitive Operation

Equipped with a 1.9-inch high-definition TFT color display for clear on-screen information. All function settings are visually intuitive for effortless operation.

Thoughtful Multi-Level Settings for Worry-Free Operation

It offers user-friendly features such as auto power-on, automatic screen off, and multi-level screen brightness adjustment. Abundant fine-grain configurations simplify daily operation for a more pleasant user experience.

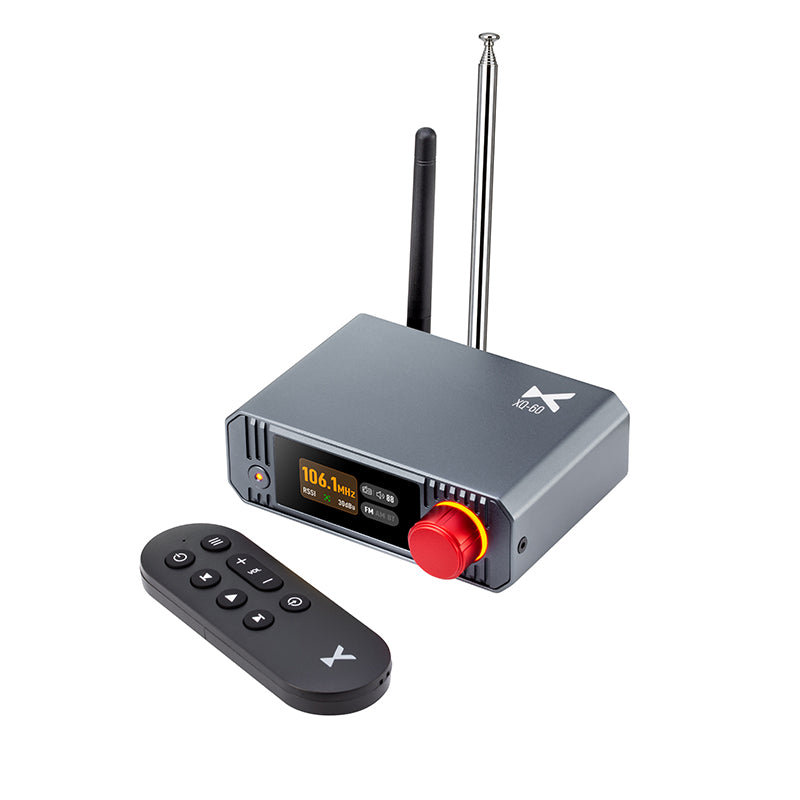

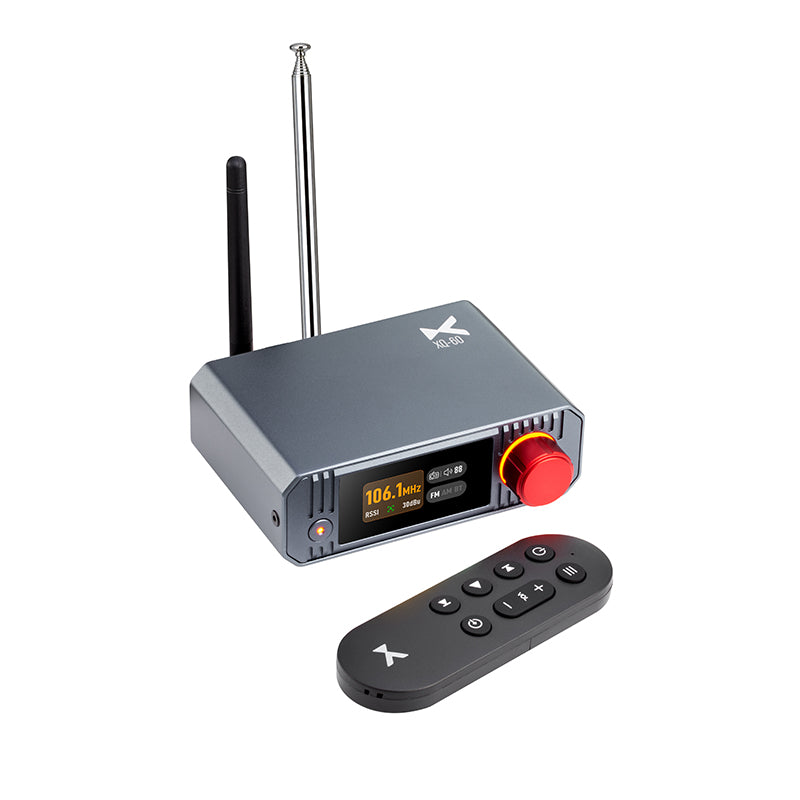

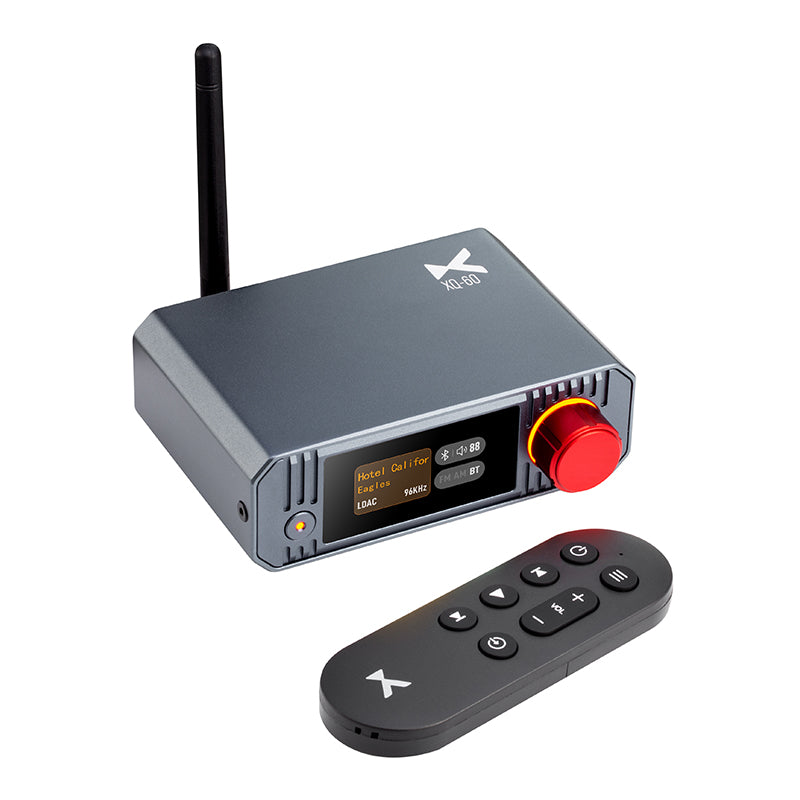

Handy IR Remote Control

Comes with a dedicated IR remote for long-range control. Easily toggle functions and adjust settings without leaving your seat for a relaxed listening experience.

Aluminum Alloy Body, Better Anti-Interference & Stable Signals

High-strength aluminum alloy housing shields against external electromagnetic interference to suppress unwanted noise. Detachable high-gain external Bluetooth antenna maintains rock-solid Bluetooth links with no transmission dropouts. Dedicated external high-gain AM/FM antenna boosts reception sensitivity for stronger, more stable radio performance.

Technical Details

Power Input
DC 5V/1A
Power Consumption
5V/0.1A
Display
1.9-inch color screen, resolution 170 × 320
Dimensions
12.0 × 10.2 × 4.2 cm
Weight
0.34 kg
Bluetooth Version
6.0
Supported Formats
Classic Bluetooth (A2DP)
Bluetooth Antenna
External magnetic bar antenna
Communication Range
Approx. 10 meters
FM Frequency Range
64-108 MHz
FM Tuning Step
50 kHz / 100 kHz / 200 kHz
FM Pre-emphasis Time
50 μs / 75 μs
FM SNR Ratio (Sensitivity with Noise Limiter)
≥ 55 dB
AM Frequency Range
520-1710 kHz
AM Tuning Step
1 kHz / 9 kHz / 10 kHz
AM SNR Ratio (Sensitivity with Noise Limiter)
≥ 45 dB
Scan Modes
Manual Scan, Auto Scan, Preset Station Storage
Preset Capacity
Up to 64 FM stations, up to 64 AM stations
Signal Strength Display Range
0~127 dBu
Antenna Configuration
Telescopic Antenna for FM, Loop Antenna for AM
Compatible Devices
USB ports of computers and tablets
USB Audio Specifications
16-24 Bit/44.1-96 kHz
Output Interfaces
1 × Coaxial Out, 1 × Optical Out, 1 × Line Out
THD+N
Coaxial Output 0.00087%, Optical Output 0.00087%, Line Out 0.002%
Maximum Output Level
Coaxial Output 0.5 Vp-p, Optical Output 0.5 Vp-p, Line Out 2 Vrms
Inside the Box
  • 1 x xDuoo XQ-60
  • User Manual
