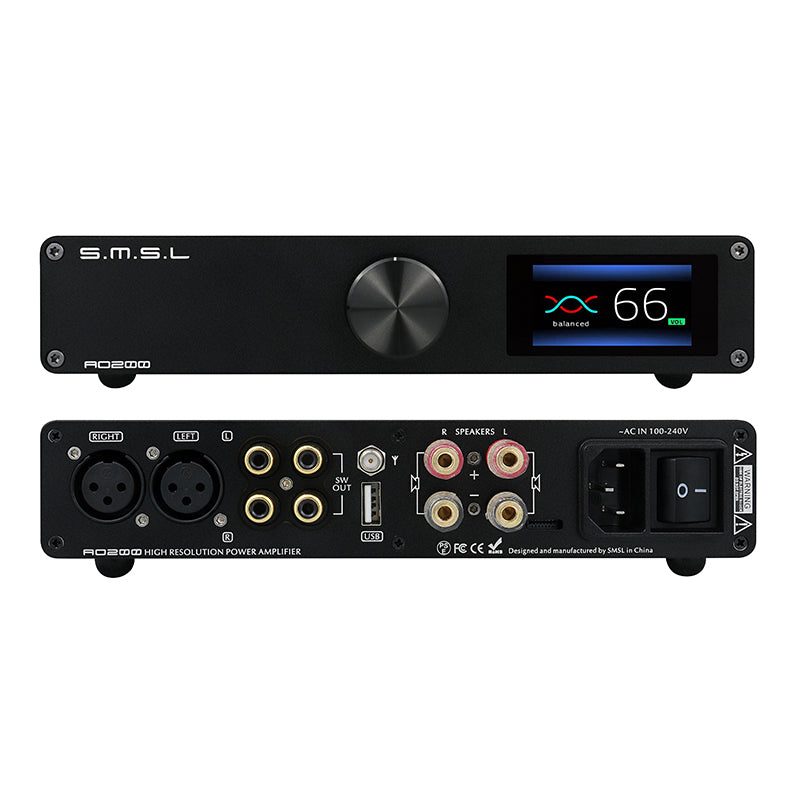

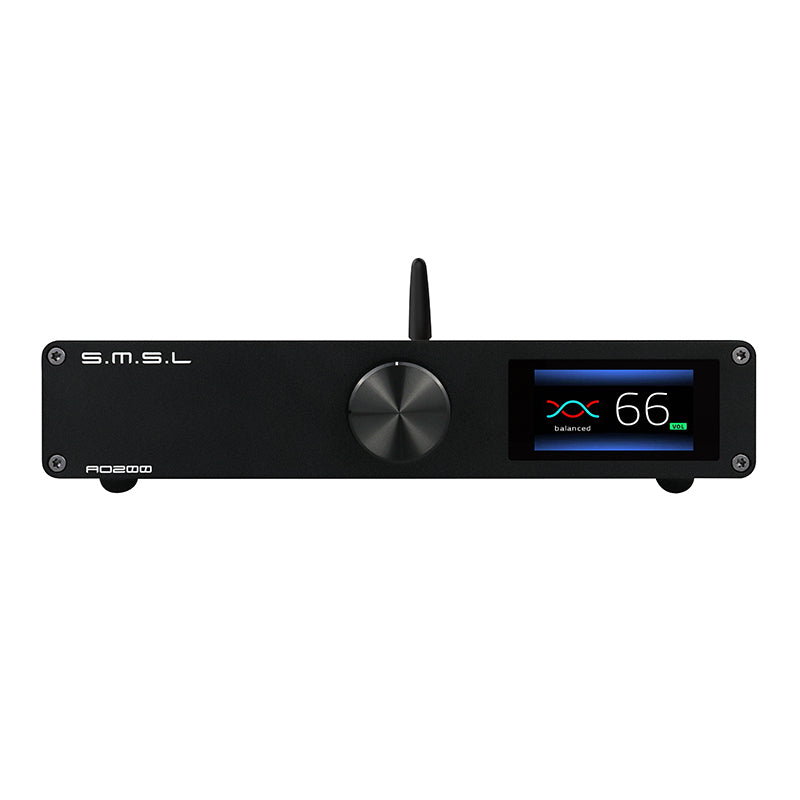

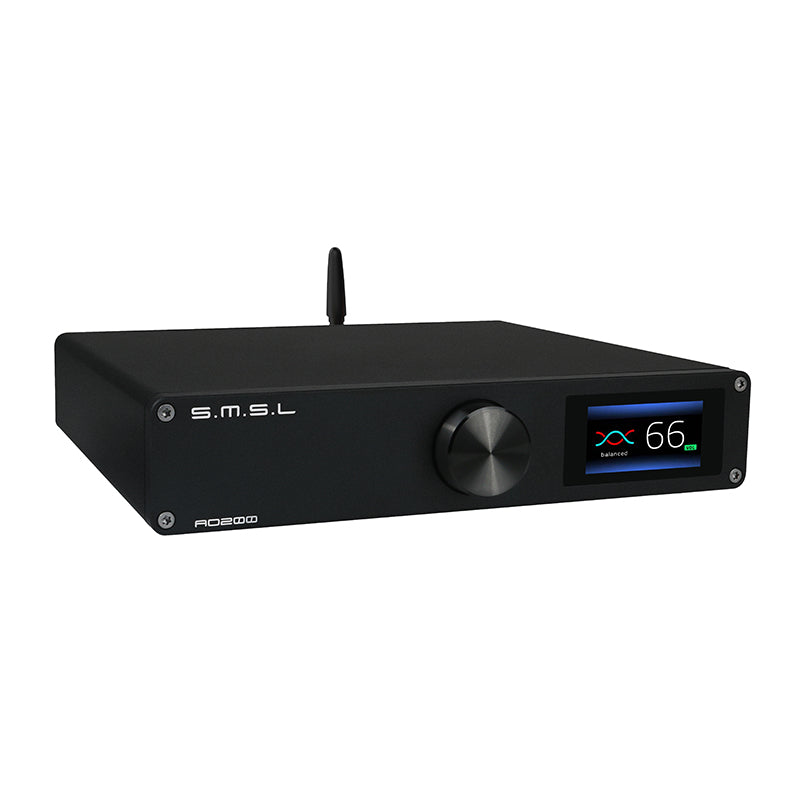

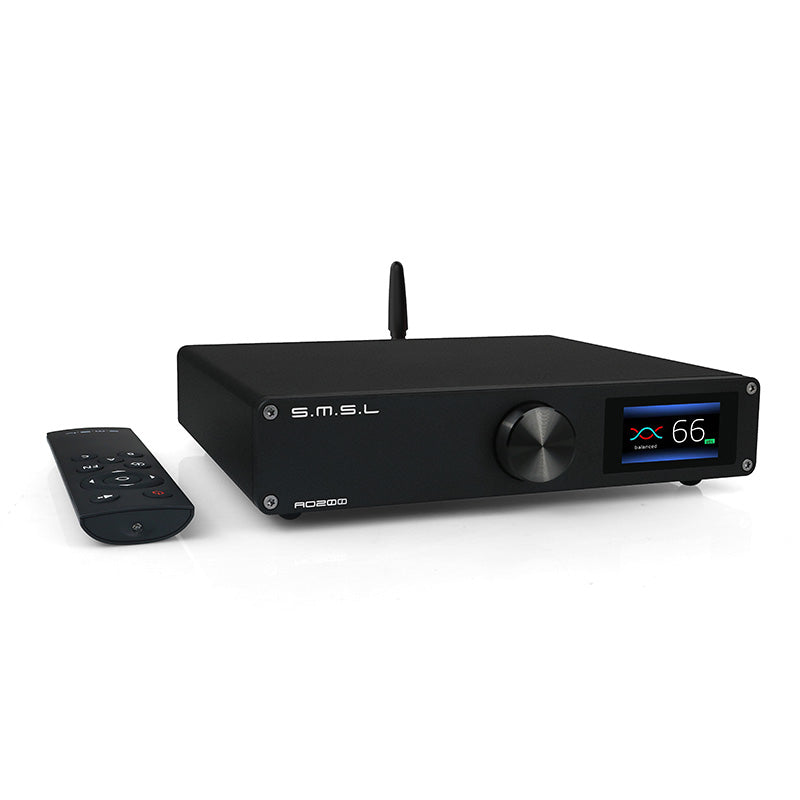

SMSL AO200

Bluetooth 5.0 MA12070 Class D Balanced Amplifier

    Ideal to reach deep and punchy bass
    At the heart of the AO200's amplifier stage are two Infineon MA12070 Class D amplifier chips
    The 5.0 standard ensures a fast and stable transmission over a distance of 10m
    The AO200's circuitry uses high quality components to provide the best possible performance
    An optimized power supply stage
Regular price €279,00
Sale price €279,00 Regular price

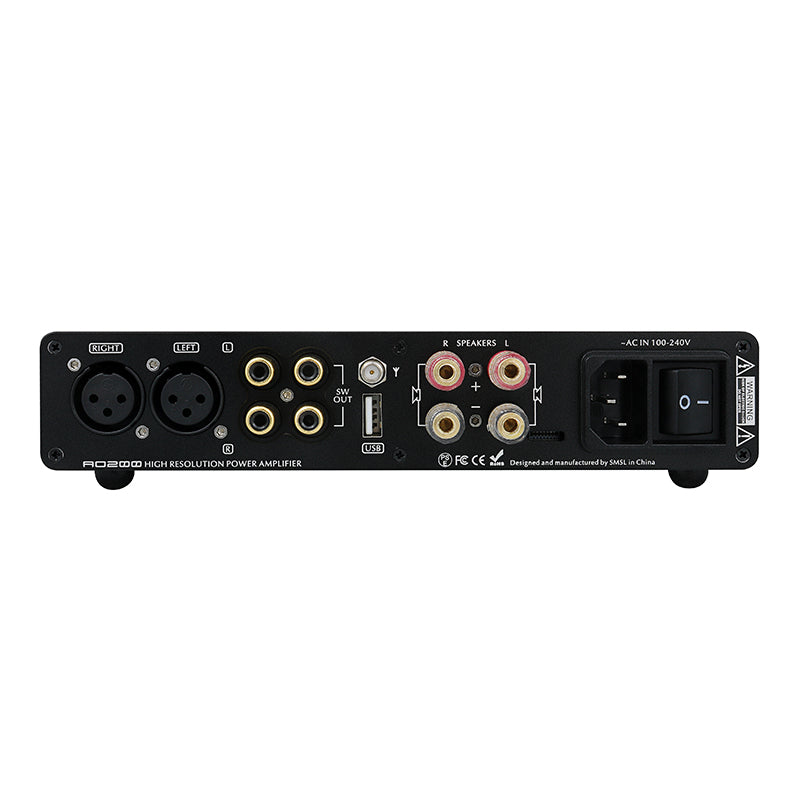

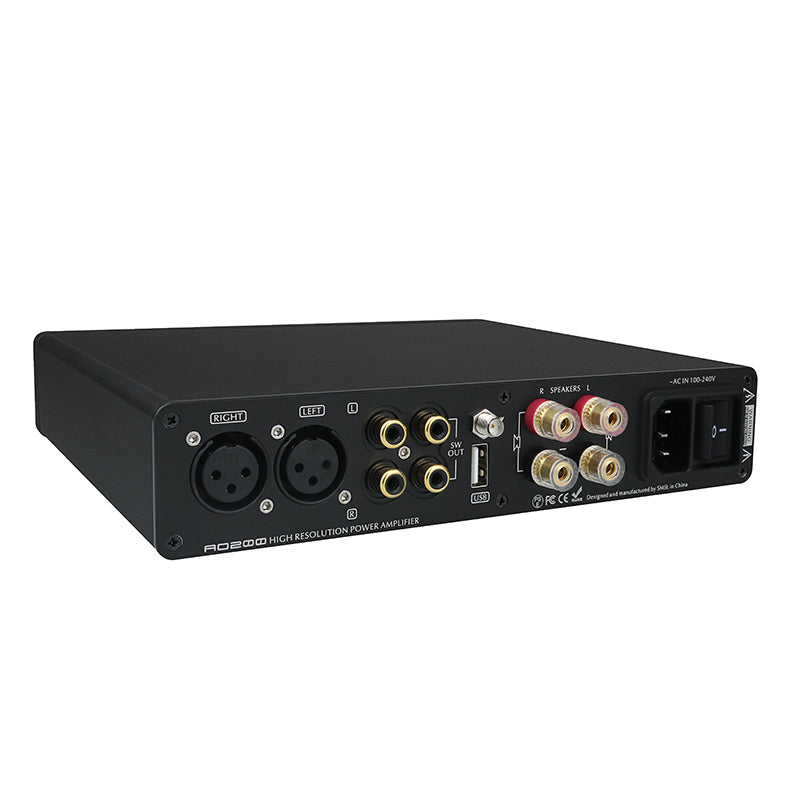

Balanced & Single-Ended

In order to integrate with all audio systems and to adapt to all needs, the SMSL AO200 is equipped with two inputs. There is an unbalanced input on RCA and a balanced input on XLR. Each connector is gold plated to ensure a very good conductivity and durability.

Subwoofer output

With the AO200 it is possible to set up a 2.1 audio system, thanks to an output on RCA connector. Ideal to reach deep and punchy bass.

Infineon MA12070

At the heart of the AO200's amplifier stage are two Infineon MA12070 Class D amplifier chips. These allow to offer a consequent power, associated with a high efficiency of 92%, a reduced consumption and then of course a sound of a great richness. These chips adopt the new MERUS architecture, totally different from a classic Class D architecture. Each half-bridge uses four MOSFETS (M1-M4) and a capacitor between them as an additional power rail to generate a three-level output signal at the output node.

Bluetooth 5.0

With its Bluetooth 5.0 receiver, the AO200 allows you to broadcast your music from a distance, directly from a smartphone for example. The 5.0 standard ensures a fast and stable transmission over a distance of 10m.

High-end components

The AO200's circuitry uses high quality components to provide the best possible performance. We can find a particularly precise and low distortion NJW1194 volume controller, EOP1678 AOPs, ERO capacitors or low noise MELF resistors.

An optimized power supply stage

The power supply stage is not to be outdone since it is based on a power supply module custom designed to provide an instantaneous power of 300W. It thus allows to favour a beautiful dynamic while limiting efficiently the impact of the interferences. For that it uses in particular a large transformer with low leakage and a filtering of the input at two levels.

Inside the Box

  • 1 x SMSL AO200
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Technical Details

Inputs
1x Balanced stereo XLR
1x Single-ended stereo RCA
Bluetooth 5.0
1x USB-A
Outputs
Speaker terminals
1x Subwoofer (RCA)
THD+N
>0.003%
SNR
110dB
Channel separation
98dB
Input sensitivity
280mV
Input impedance
47kΩ
Output power
2x 150W @ 2Ω
2x 90W @ 4Ω
2x 50W @ 8Ω
