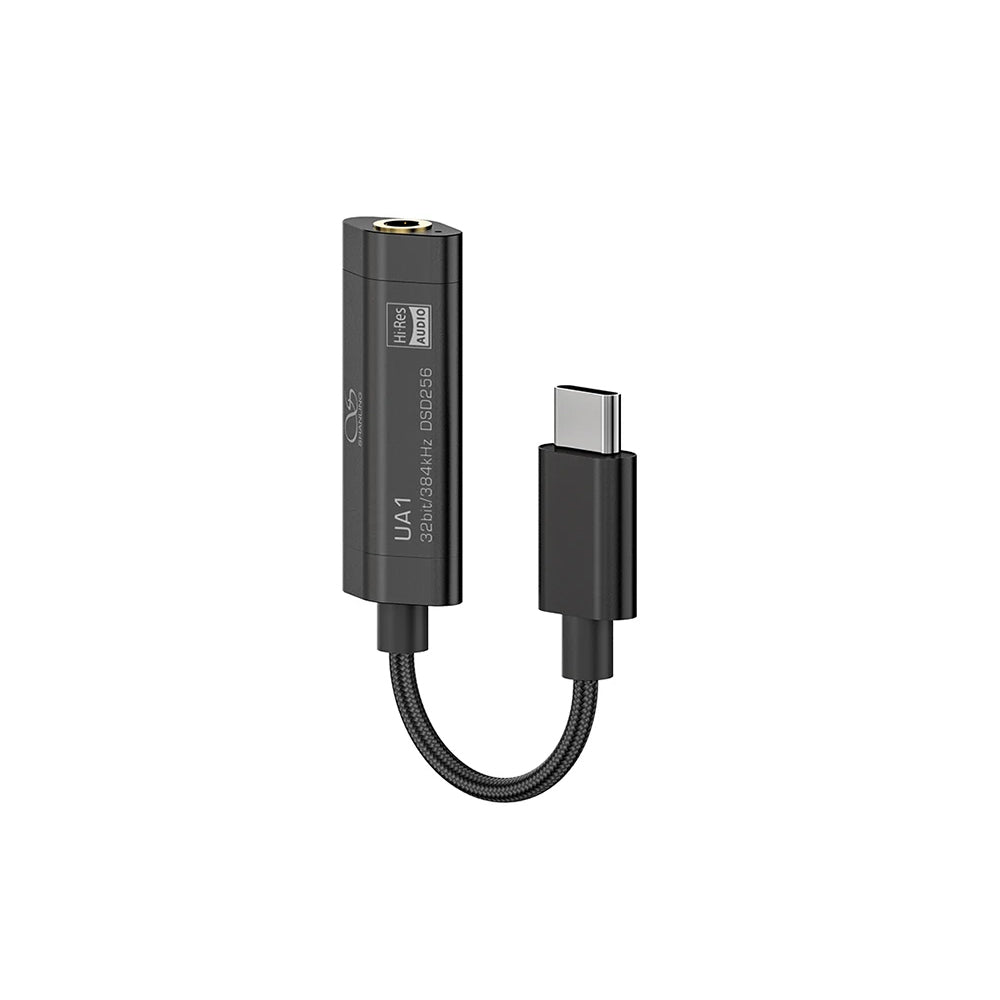

SHANLING UA1

ESS ES9218P Portable USB-C DAC&

    Adapting same ESS Sabre ES9218P Hi-Fi chip
    Hi-Res Aidio Certified Dongle, support up to PCM 32/384 and DSD256
    Compatible with Android, Windows and MacOs
    Comes with a USB-C female to USB-A male adapter
Regular price €45,00
Sale price €45,00 Regular price
Unit price
Enjoy free shipping to most countries*

Please refer to our shipping FAQ to see if you apply.
30-Day Return Policy

For Factory Sealed, Non-Customized Products.
SHANLING UA1

SHANLING UA1

Regular price €45,00
Sale price €45,00 Regular price
Unit price

Portable DAC USB-C ES9218P 384kHz DSD256

Whether you are using a latest generation smartphone that lacks an analog audio output (compatible directly with your headphones ) or you simply want to improve the very average audio output of a standard consumer phone, the Shanling UA1 is a transportable and affordable solution for playing your high resolution audio files anywhere without carrying more than necessary

DAC ES9218P

Although very compact, the Shanling UA 1 embeds a nice circuit built around an ESS ES9218P chip, a reference component for High Fidelity applications incorporating both digital to analog conversion capabilities as well as headphone amplification capabilities. On the DAC side, the UA1 is capable of playing high resolution audio files up to 384kHz / 32bit and even DSD files up to DSD256. The output stage is for its part capable of developing up to 80mW of power at 32 Ohm with a minimal noise level, which represents an incomparable performance gain in comparison with the traditional audio outputs of general public portable multimedia devices..

USB-A adapter

The UA1 portable headphone converter and headphone amplifier from Shanling comes with a USB-C female to USB-A male adapter. The latter will be particularly useful for using all the qualities and audio capabilities of the UA 1 with a laptop or even a PC tower without a satisfactory sound card (relying only on the limited audio capabilities of the motherboard). Completely optimized for mobile use, the circuit is designed to maximize the power available for the amplified output while limiting the load on the battery of the source device. This is a suitable solution for extended listening sessions, even on devices with limited battery.

Shielded cable

The integrated cable has high purity & high section copper conductors ensuring excellent conductivity for your audio streams. It is securely protected by a robust sheath and has cotton / silver shield specially designed to limit the capture of high-frequency waves, such as those specifically present near a smartphone.

Technical Details

Dimensions
39x15x9mm body/77mm cable
Weight
8.3g
Output power
1.6V@32Ω(80mW@32Ω)
Frequency range
20Hz-50kHz(-0.5dB)
THD+N
0.001%@32Ω(A-Weighting )
Dynamic range
119dB@32Ω(A-Weighting)
Signal-to-Noise
119dB@32Ω(A-Weighting)
Channel separation
77dB@32Ω
Output impedance
<0.5Ω
Accessories
USB-C to USB A adapter， User guide
Inside the Box
  • 1 x SHANLING UA1
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Return Policy

1 Year Warranty

The SHANLING UA1 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Shipping Policy
Warranty Policy

Authentic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Worldwide Free Shipping

We are located in China but send our products worldwide for free. T&Cs apply.

1 Year Warranty

We provide 1 year warranty for the all products except the cables and accessories*.

Online Support

Need help?, we are here to assist you
Monday - Friday: 09:00 – 18:00 (UTC+8)

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Dr C
Audio sound is very high quality

I purchased a UA2 two months ago and I am very happy with it. I had to purchase the UA1 just to compare them. I received the UA1 today and it sounds just as good as my thousand dollar dac. I am very happy with both of them. Thank you!!!!!

T
Tynan McLaren
Very good amp for the price

I've owned this for a few months now and have had it paired with the KZ DQ6'S and the volume and power is amazing. I have never turned my phone volume with it at max because it's so loud. At some points it gets quite warm but if you just squeeze it in your hands for a few seconds it cools down quite a bit since it's made of aluminum. I have been having one issue though where randomly while listening to music I'll get these loud crackles that are just ear piercing. I'm not sure what's causing it but I might need to go through warranty.

A
AJ
Big upgrade on phone sound

I wasn't expecting very much, but when paired with something like KZ ZS10 Pro or Blon 02, the improvement in sound quality is really obvious. It does run a little warm and runs the battery down a bit, but it's worth it!

L
LL
Excellent for phone and laptop

Impressive. Much more than I expected given the price. Highs are extended and clear without harshness. Soundstage is decent on my Hifiman headphone which it can drive to high volume without using high gain. Imaging is pin point accurate. Love the ESS DAC sound. Bass is adequate and overall a fun and laid back sound without sacrificing details. This reminds me of my Oppo BPS 95 sound which has dual ESS DAC for analog out to my Pioneer preamp and Aragon power amp. Makes my well recorded SACD sing. Highly recommended.. Used with Samsung S20 FE. Very well built.

A
AT
Great Balanced Sound, Robust and Portable DAC

This is my second DAC after Tempotec Sonata HD and I'm quite impressed with UA1. It has robust yet lightweight aluminium build and this nice black sheath-covered (I think it's covered by nylon) cable. Also it has this small green light indicator near the 3.5mm jack output which is useful for the users to make sure whether the DAC is really working or not. Although, I should be upfront about some problems I've been facing with this DAC, that's sometimes it's lagging (like the audio is cut off for like one or two seconds before start working again) when I use it with my laptop or my phone; more often with my laptop. I don't really know whether it's about a compatibility issue, firmware, my source, etc but it does bother me a bit.

For the sound quality, in my opinion, this DAC has balanced sound signature with a little boost / emphasis on the bass. I'm not experienced and don't really know how to explain the sound quality; the bass, soundstage etc, but for me this DAC is suitable for many IEMs / devices. It's a "fun" sounding DAC overall and can give more full-bodied sound throughout the frequencies. For some people, maybe it doesn't immediately give them a "wow" factor, with a huge amount of detail retrievals whatsoever, but it's pleasant to listen to your playlist with this device plugged in especially for a long listening session. It has a good amount of power too and it can drive not-so-demanding IEMs with ease.

Overall I can recommend this DAC for it's great build quality, "fun" sounding and non-fatiguing sound signature and good output power. Also Shanling constantly releases updates for the firmware on it's official website so yeah, it's a good thing for the users.

P
Peter Kessler
Great Sound, Small Size, Great Price

I do most of my listening through the standard 3.5mm audio jack on my Windows laptop. It has never given me any problems, but a variety of sources had told me that a USB DAC would improve the sound quality of my music to some degree. None of these sources were clear on exactly what would be improved, but I decided to trust them and give a USB DAC/AMP a chance.

Well, this thing has improved the quality of my music considerably and I believe I now, roughly, understand why. I usually either listen to spoken word through highly compressed sources such as YouTube or listen to very dense music (think Clipping, Death Grips, Aphex Twin, etc.) through .flac files. For the spoken word, this USB DAC/AMP simply increases the amount of volume I have available. For the .flac files, though, it has noticeably increased the instrument separation and given new depth to the music I enjoy. I can also push significantly more volume if I wish, but I tend to keep the volume within the 20%-30% range of Windows 10.

As for the device itself, the metal housing feels very solid and the very faint green LED isn't distracting even in pitch darkness. The female 3.5mm connection feels extremely robust and allows all of my cables to be fully inserted with a firm, audible "click". The USB-C connection also feels very solidly built and requires a small amount of force to insert and remove from my laptop. This gives me confidence that it will not quickly wear out or break.

My only minor gripe is that the DAC/AMP gets slightly warm (think around 80-90 Fahrenheit). I have been told that this is completely normal for such a small DAC/AMP as, due to its intended function, it must transmit more electricity than a normal 3.5mm, 2.5mm, or 4.4mm connection would by itself.

I don't have anything from the higher end of audio equipment to compare this device to, but I can say that as a novice I greatly appreciate this device and would recommend it to anyone who is already interested in picking one up.

Y
Yan Loon Cheng
Excellent

Detailed bass, and compatible with Samsung S20 FE Android 10.
