MOONDROP MM3A
Five-Mode 3-Inch Active Speaker
- Five-mode connectivity: Bluetooth, USB, AUX, Optical, Coaxial
- 0.65-inch silk dome tweeter & 3-inch aluminum woofer
- Dual horizontally opposed 3-inch passive radiators
- Bluetooth 6.0 with LDAC hi-res transmission
- Full-channel DSP digital electronic crossover
- Professional PEQ tuning via APP & PC software
- 33W per channel, 66W total output power
- 10° tilted baffle for optimized desktop listening
MOONDROP MM3A
![]()
Defying Expectations in Compact Size
In the world of speakers, the idea that compact size and premium quality cannot coexist is widely accepted. But we believe that's not the case. While size does impose certain physical constraints, it doesn't mean that performance is limited. We dedicated all of our research and development resources to the MM3A, utilizing the same equipment, instruments, laboratories, and acoustic design processes typically reserved for high-end professional monitors. All with one goal in mind: to develop a compact desktop speaker that redefines what is possible in terms of accuracy, musicality, and dynamic range.

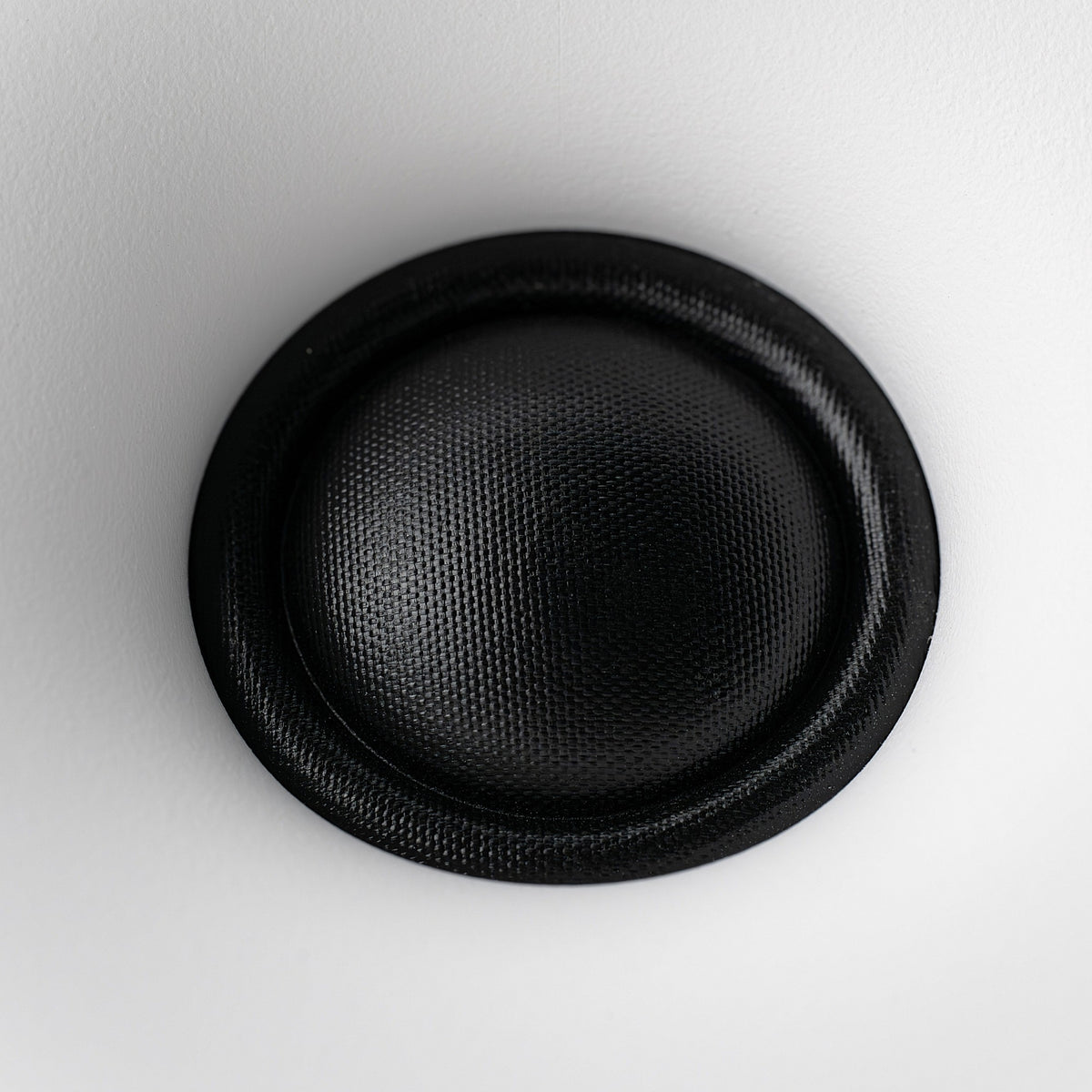

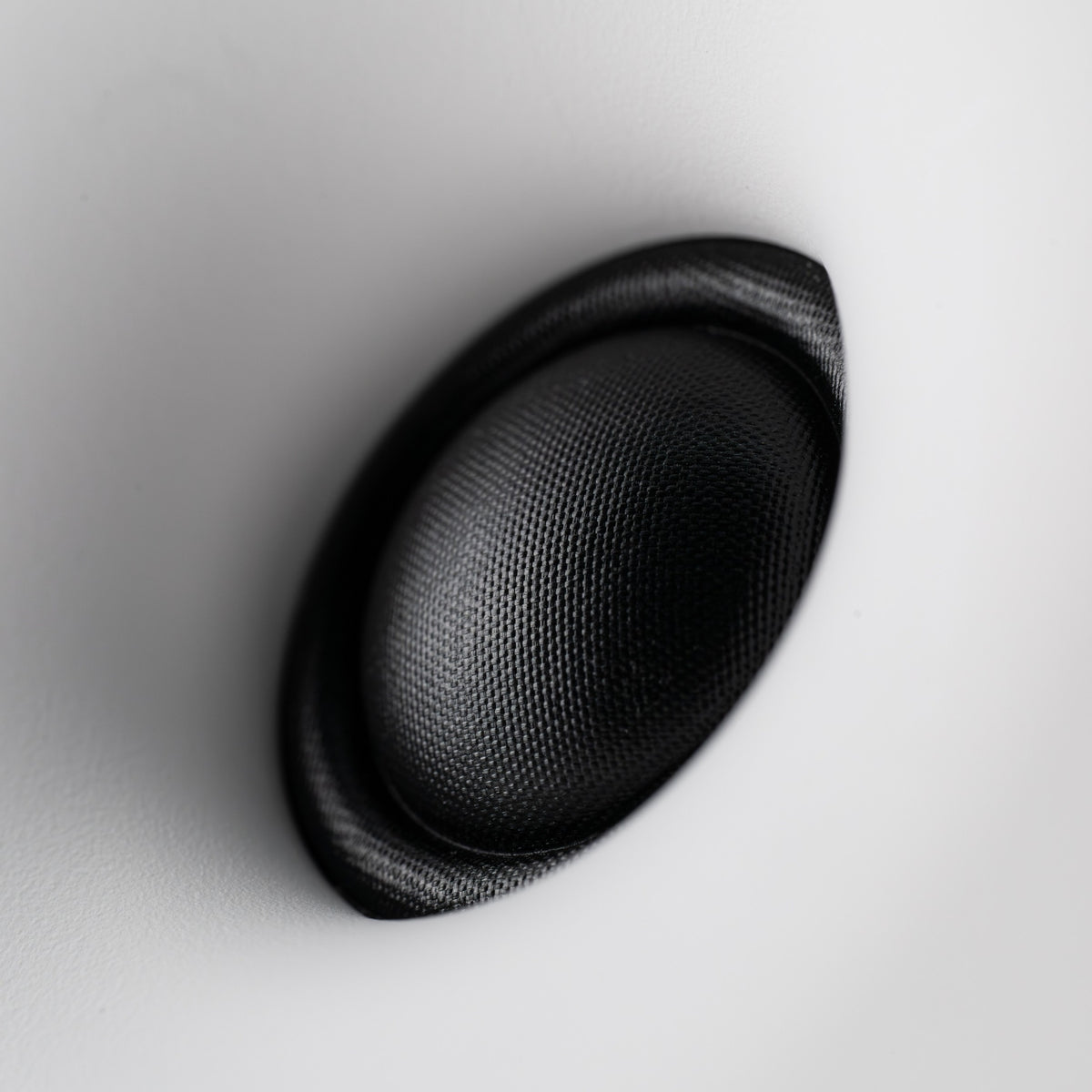

Silk Dome Tweeter & Aluminum Cone Woofer
To improve bandwidth, enhance deep bass extension, and reduce distortion within a compact design, we developed an innovative driver configuration. This includes a 0.65-inch silk tweeter for flat and smooth treble extension, a 3-inch aluminum concave cone woofer for better mid-range frequency integration, and dual horizontally opposed 3-inch passive radiators for impactful bass extension and dynamics. The woofer features a hidden inverted-R surround design and dual N52 neodymium magnets encapsulated in a U-yoke housing for enhanced efficiency and stable voice coil operation.
Powerful Dynamics with 66W Total Output
We have independently designed a high-performance digital power amplifier circuit that efficiently drives speaker drivers. Each channel can deliver up to 33W of undistorted power, producing abundant sound pressure that easily covers living rooms, entertainment rooms, small recording studios, coffee shops, bars, and other spaces. The MM3A features a high-performance digital filter with automatic frequency upsampling, coupled with a digital frequency crossover designed with high-precision DSP, achieving precise frequency separations with lower power consumption.
Low-Diffraction Design & Flat Frequency Response
The MM3A showcases an entirely original, low-diffraction, multi-curved surface design that enhances off-axis response, offers more listening angles, and significantly improves the speaker's performance in practical applications. With high-quality hardware design and dedicated, high-precision measurements and tuning, the MM3A provides powerful bass extension and a flat full-frequency response that surpasses many products of similar size. Its flat frequency response makes it well-suited for professional mixing, monitoring, and other audio applications.
Five Connection Modes & LDAC Support
The MM3A offers five connection modes: Bluetooth, USB, 3.5mm AUX, Optical, and Coaxial. In USB-C, Bluetooth, and AUX connection modes, the independent volume knob controls the speaker volume independently without synchronizing with the playback device's volume settings. The MM3A supports LDAC, a high-resolution wireless audio protocol that delivers high-resolution wireless transmission with larger dynamic range and wider bandwidth. Bluetooth mode easily enters pairing mode with a single click for seamless connectivity.
Professional PEQ Tuning & Desktop Optimization
Through the 2nd generation online interactive DSP via web tuning tool, users can customize and tune the parametric equalizer in the MM3A's DSP using a professional tuning interface. This interface allows adjustments to filter type, frequency point, gain, and Q value. Users can also upload their own tuning configurations or download optimizations created by others. The unique arc angle design aligns the tweeter and subwoofer to converge at the listening position. Sponge damping isolation pads are included to reduce enclosure vibrations and elevate the speaker angle.
Technical Details
- MM3A Speaker (Primary & Secondary) × 1 Pair
Z-DIN4 Interconnect Cable × 1
Power Cable × 1
USB Cable × 1
AUX Cable × 1
Sponge Isolation Pads × 1 Set
Manual × 1
Guidance Card × 1
Certificate × 1
