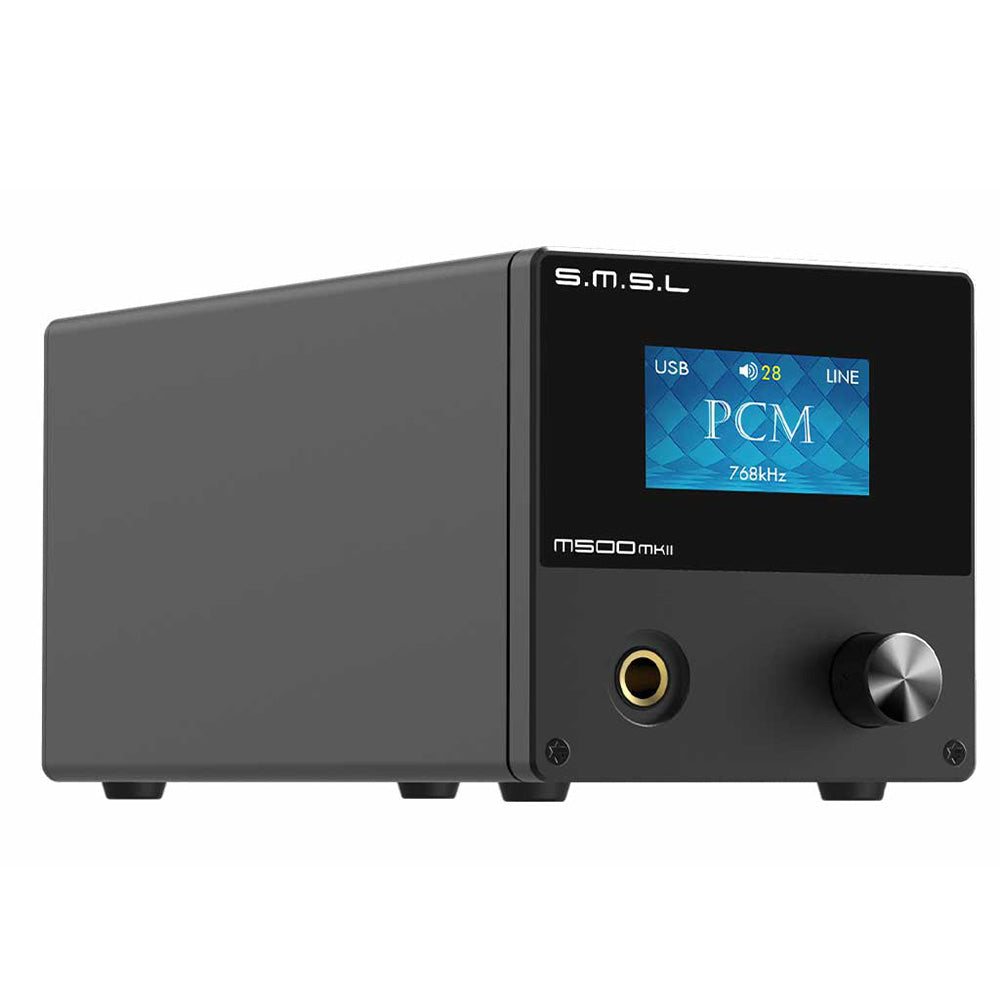

SMSL M500 MKII

Hi-Res Bluetooth Audio Decoder Headphone Amplifier

    Premium ES9038Pro DAC Chip
    Excellent Sound Performance With Ultra-Low Distortion Ratings
    Brand-new PLFC Headphone AMP Circuit
    Upgraded Clock Circuit
    Multiple-Inputs(USB, Optical, Coaxial, Bluetooth)
Regular price €307,99
Sale price €307,99 Regular price

HiFi Chipset Configuration

The SMSL M500 MKⅡfeatures a marvelous ES9038PRO D/A chip of American ESS company paired with the latest generation XMOS XU216 ,a true 32bit USB solution. This chipset provides distortion-free and high-quality sound rich with details. The M500 MKⅡ can also support DoP and native DSD drivers without conversion.

Gorgeous Aluminum Alloy Housing

The M500 MKⅡ features an excellent visual appearance with a whole piece of tempered glass on the screen and an integrally formed aluminum alloy shell, which effectively prevents oxidation. The use of non-magnetic raw materials can not only shield the interference of external magnetic fields but also have no magnetic fields. It is worth mentioning that the M500 MKⅡ can further improve the quality of music.

TFT LCD Display with Remote Control

SMSL M500 MKⅡcharacterizes an TFT LCD display on the front with blue background and white digital characters that shows basic information like active input type, and more information. It also follows with a full-functional remote control that you can control the device with ease.

Multiple Digital Filter Options

SMSL M500 MKⅡcharacterizes seven digital filter modes for PCM signals to meet different needs and different types of music. These modes can improve our audio experience and enjoy the music we desire for.

Bulit-In High-Performance Headphone Amplifier

The SMSL M500 MKⅡ equips with a brand-new Built-in high-performance headphone amplifier with all-round PLFC headphone amplifier circuit. It makes it possible to obtain more than 2W output power and less than-120dB distortion when the headphone is placed in a 16Q load.

Inside the Box

  • 1 x SMSL M500 MKII
  • User Manual

1 Year Warranty

The SMSL M500 MKII Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Spec
Input USB / Optical / Coaxial/ Bluetooth
output 6.35 Phone Jack / RCA/XLR
THD+N 0.00006%(-123dB)(UN-WTD)
HPA THD+N 0.0001% (-120dB)(UN-WTD)
HPA power 2Wx2(16Ω),1Wx2(32Ω)
HPA gain 0dB(Low),+9dB(High)
Dynamic range 131dB(XLR),126dB(RCA)
SNR 131dB(XLR),126dB(RCA)
USB Spec USB 2.0 Asynchronization
USB compatibility.......................Windows 7 /8/8.1/10(Needs Driver)
Mac OSx10.6 or Later、Linux(Driverless)
MQA decoder USB / Optical / Coaxial
MQA-CD decode Optical / Coaxial
DoP decoder USB / Optical / Coaxial

Sampling rate & Bit Width:
USB PCM 44.1 ~768kHz(32bit)
DSD 2.8224 ~ 22.5792MHz(1bit)
Optical / Coaxial 44.1 ~ 192kHz(24bit)
DoP DoP256(USB)DoP64(Optical / Coaxial)

Bluetooth 5.0
LDAC 24bit/96kHz(990kbps/660kbps/330kbps)
aptX-HD 24bit/48 kHz_576kbps
aptX 16bit/44.1 kHz_352kbps
SBC 16bit/44.1kHz_328kbps
AAC 16bit/44.1 kHz_320kbps
Power Consumption 5W
Standby power <0.5w
Size 85x88x197mm (WxHxD)
weight 0.90kg/1.98lb
