SMSL DO100

ES9038Q2M XMOS Bluetooth 5.0 DAC

    ES9038Q2M Dual DAC & OPA1612
    USB XMOS Interface
    Low noise linear power supply
    Equipped with a Qualcomm QCC5125 Bluetooth 5.0 receiver chip
Regular price €239,00
Sale price €239,00 Regular price

ES9038Q2M Dual DAC & OPA1612

At the heart of the digital/analog conversion stage are two DAC ES9038Q2M chips from ESS, a model renowned for its ability to provide a very transparent sound reproduction. To these, the DO100 associates audiophile components with for example four double OPA1612 AOP.

USB XMOS Interface

Behind the USB-C input of the DO100, a second generation XMOS interface allows it to decode the audio stream efficiently from this input. It also offers the possibility to enjoy high definition audio files, up to PCM 32bit 768kHz and DSD512.

Low noise linear power supply

The DO100's power supply stage, which is responsible for providing a clean and stable electrical signal to the audio circuits, uses a linear power supply with many discrete components and low-noise PSUs for the analog circuits.

Bluetooth 5.0

Equipped with a Qualcomm QCC5125 Bluetooth 5.0 receiver chip, the DO100 offers the possibility of remote control, as playback can be started and managed directly from your smartphone. In addition, it supports the high-definition codecs aptX, aptX-HD and LDAC for high-quality wireless sound reproduction.

Inside the Box

  • 1 x SMSL DO100
  • User Manual

1 Year Warranty

The SMSL DO100 Comes with a 1 year warranty on the DAC only. Warranty doesn't apply to the included accessories.

Technical Details

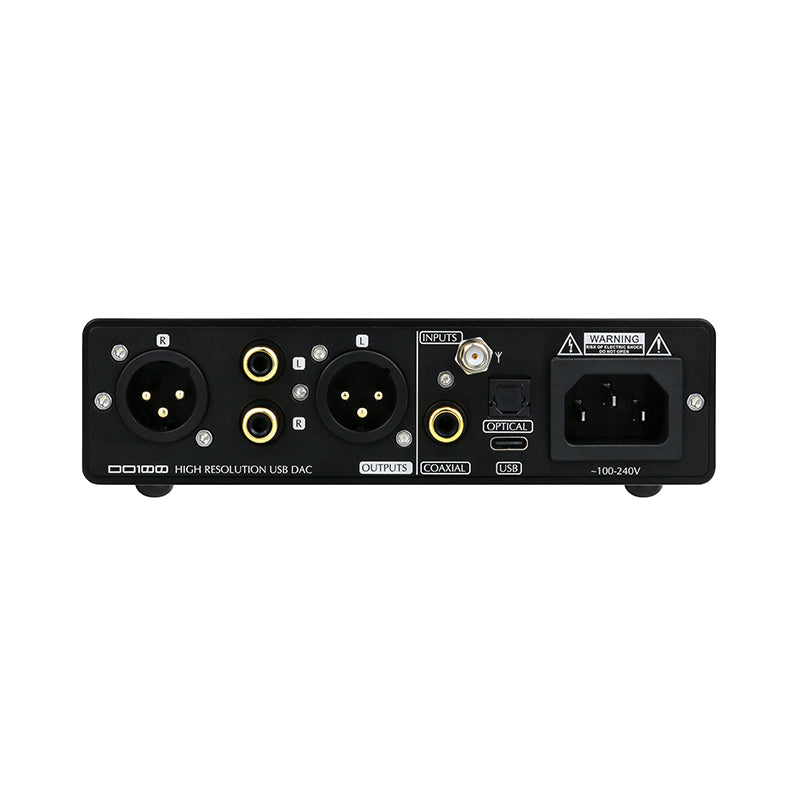

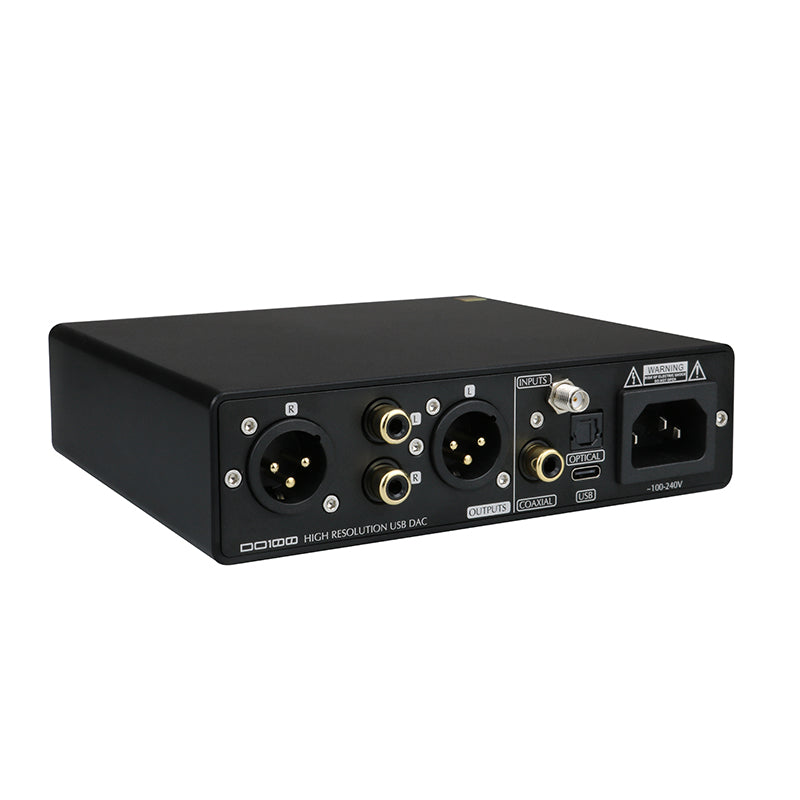

Inputs
1x USB-C
1x Optical Toslink
1x Coaxial
Bluetooth 5.0
Outputs
1x Single-ended stereo RCA
1x Balanced stereo XLR
Output amplitude (adjustable volume)
XLR : 4Vrms
RCA : 2Vrms
THD+N
0.00008% (-121dB)
Dynamic range
XLR : 127dB
RCA : 125dB
SNR
XLR : 126dB
RCA : 124dB
Output impedance
100Ω
USB Transmission
USB1.1, USB2.0 (asynchronous)
Supported sampling rates
USB : PCM up to 32bit 768kHz, DSD up to DSD512
Optical / Coaxial : PCM up to 24bit 192kHz, DoP64
Supported Bluetooth codecs
AAC, SBC, aptX, aptX HD, LDAC
