SMSL PO100AK

Portable AK4493S DAC Chip Low Power Consumption Decoder

    Built-in AK4493S DAC Decoding Chip
    XMOS 3rd-Generation USB Input
    RCA/Optical/Coaxial Digital Output
    Mini Portable Interface with Low Power Consumption
Regular price €89,99
Sale price €89,99 Regular price

Built-in AK4493S DAC Decoding Chip

With AKM’s new DAC decoding chip AK4493S built in, SMSL PO100AK is able to playback MQA encoded files without additional software at the distortion of only 0.00015% in field test, delivering authentic and full studio-quality sound. And PO100AK works well with foobar2000 or Audirvana for ASIO or WASAPI audio output.

XMOS 3rd-Generation USB Input

Updated Type-C USB input with PCM sampling rate up to 32bit/768kHz. Compatible with Windows 7/8/8.1/10/11 (Driver required), Mac OS X10.6+, Linux (Driverless), Android, IOS, and gaming consoles such as PS4/PS5, Switch, etc.

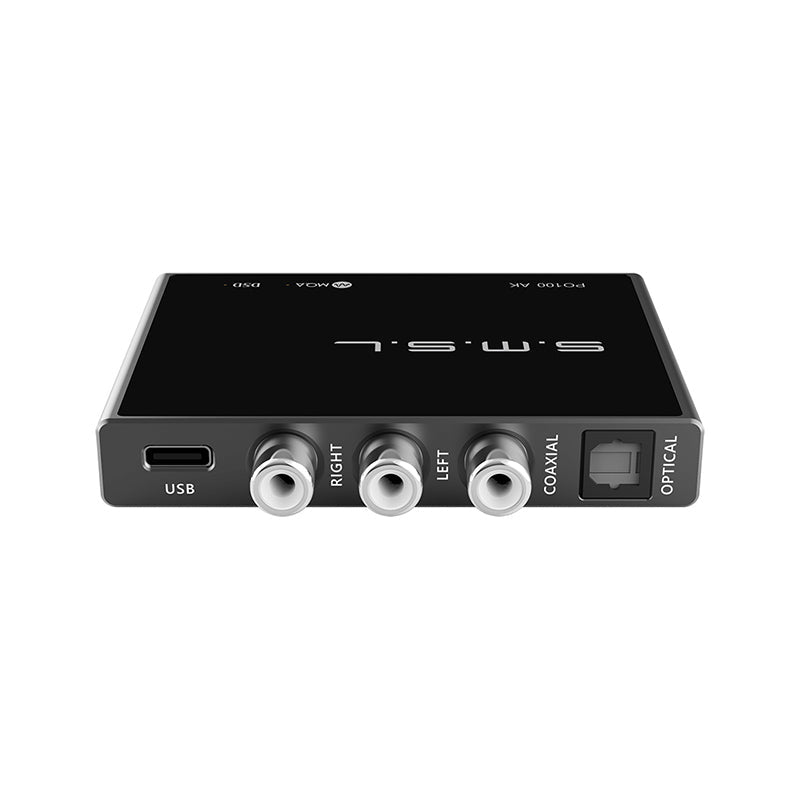

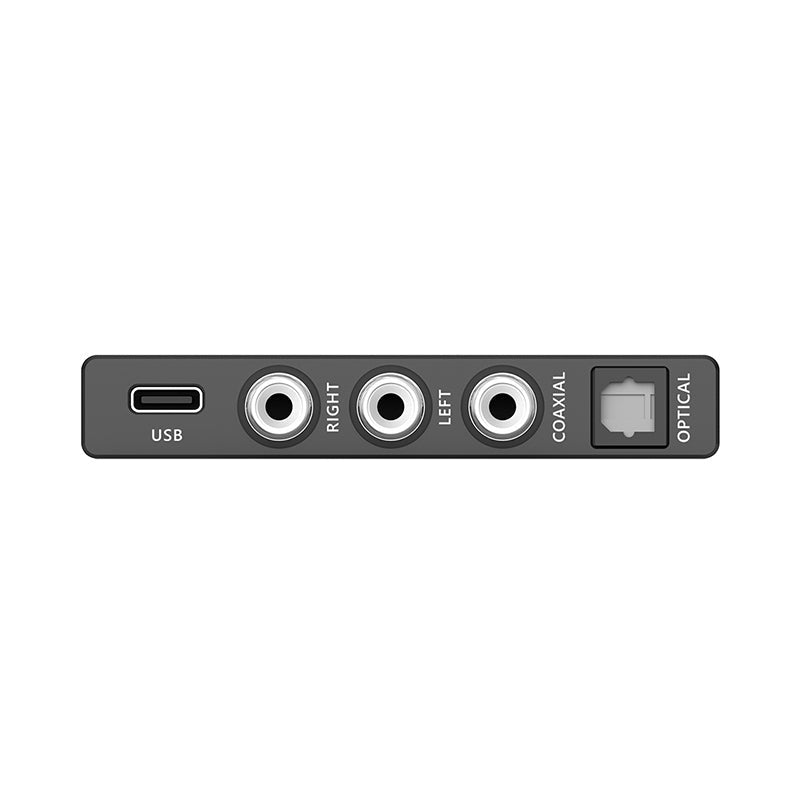

RCA/Optical/Coaxial Digital Output

SMSL PO100AK output in RCA, optical and coaxial digital, adapting to your professional and daily needs. Equipped with a low-phase noise clock, PO100AK’s inherent clock jitter of digital output is as low as only 75ps.

Mini Portable Interface with Low Power Consumption

Weighing only 75g/2.41ounce, PO100AK USB Interface is pocket-sized and light, making it the perfect mobile device to be taken for work and trips. PO100AK consume little energy when in use and can be charged with mobile phones with Type C to Type C cable, allowing you to use it for a long period of time.

Inside the Box

  • 1 x SMSL PO100AK
  • User Manual

1 Year Warranty

The SMSL PO100AK Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

INPUT:
USB (Asynchronization)
OUTPUT:
LINE OUT, COAXIAL, OPTICAL
USB compatibility:
Windows 7/8/8.1/10/11(Driver needed), Mac OSX10.6+ Linux. Android iOS
RCA output level:
2.0Vrms
THD+N not weighting:
0.00015%/116dB)
Dynamic range:
121dB
SNR:
121dB
Sampling rate:
USB:
PCM-44.1~768kHz
DSD-2.8224 ~ 22.5792MHz
DSD-DSD64(DOP)
Bit depth:
USB-1bit,24~32bit
JITTER:
75ps(typical)
POWER Supply:
5V /200mA
SIZE:
80x13x60mm(WxHxD)
WEIGHT:
75g/ 2.4loz
